Model 201 Installation & Technical
8400-M117-O1 Rev D
Page 17
3.8 ISO I/O Cable Installation
3.8.1. The ISO I/O wires are to be connected to the P2 terminal block on
the bottom panel of the weight transmitter. Refer to Figure No. 2B
for an illustration of the connector layout.
3.8.2. Remove the 10-connector terminal block connector from the weight
transmitter. Grasp the terminal block connector and lift straight up
away from the enclosure.
3.8.3. Referring to the table below and the labels on the enclosure for
terminal connections, connect each wire to the terminal block.
3.8.4. Remove 2" of the outer insulation jacket then remove 1/4" of
insulation from each of the wires.
3.8.5. To terminate a wire, push down on the orange spring loaded
plunger and then insert the wire into the terminal opening. Release
the plunger to secure the wire in place.
3.8.6. Repeat the procedure until all wires are in place.
P2 ISO I/O Wiring Table
Terminal
Function
Terminal
Function
1
12-24 VDC
6
COM
2
IN1
7
OUT1
3
IN2
8
OUT2
4
IN3
9
OUT3
5
IN4
10
OUT4

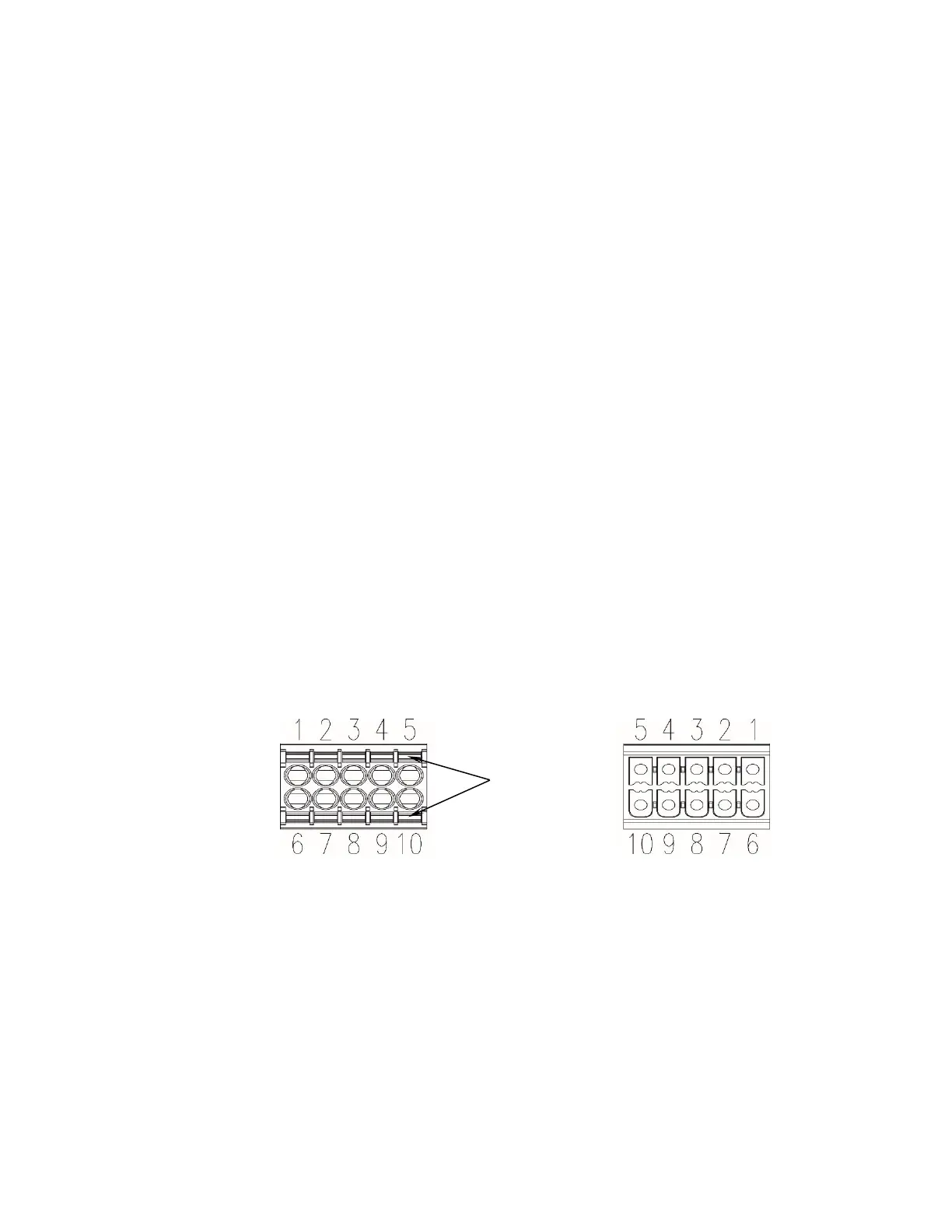

P2 Terminal Block
Connector
CPN - 6610-1548
P2 Socket
Orange
Plunger
