5-TRANSPORTOPERATIONS
SR175,SR200,SR220,TR250,andTR320
only
SR220,SR250andTR320Frontslingrequirements:
•
Twosyntheticslings3.7m(12.0ft)inlength.
•
Eachslingmusthavearatedliftingcapacityofequalto
orgreaterthan0.748xGrossVehicleWeight(GVW).
SR220.SR250,andTR320Rearslingrequirements:
•
Twochainsapproximately2.4m(8.0ft)inlength.
Someadjustmentmayberequiredforalevellift.
•
Eachchainmusthavearatedliftingcapacityofequalto
orgreaterthan0.555xGrossVehicleWeight(GVW).
SR175,SR200,andTR270Frontslingrequirements:
•
Twosyntheticslings3.7m(12.0ft)inlength.
•
Eachslingmusthavearatedliftingcapacityofequalto
orgreaterthan0.741xGrossVehicleWeight(GVW).
SR175,SR200,andTR270Rearslingrequirements:
•
Twochainsapproximately2.4m(8.0ft)inlength.
Someadjustmentmayberequiredforalevellift.
•
Eachchainmusthavearatedliftingcapacityofequalto
orgreaterthan0.536xGrossVehicleWeight(GVW).

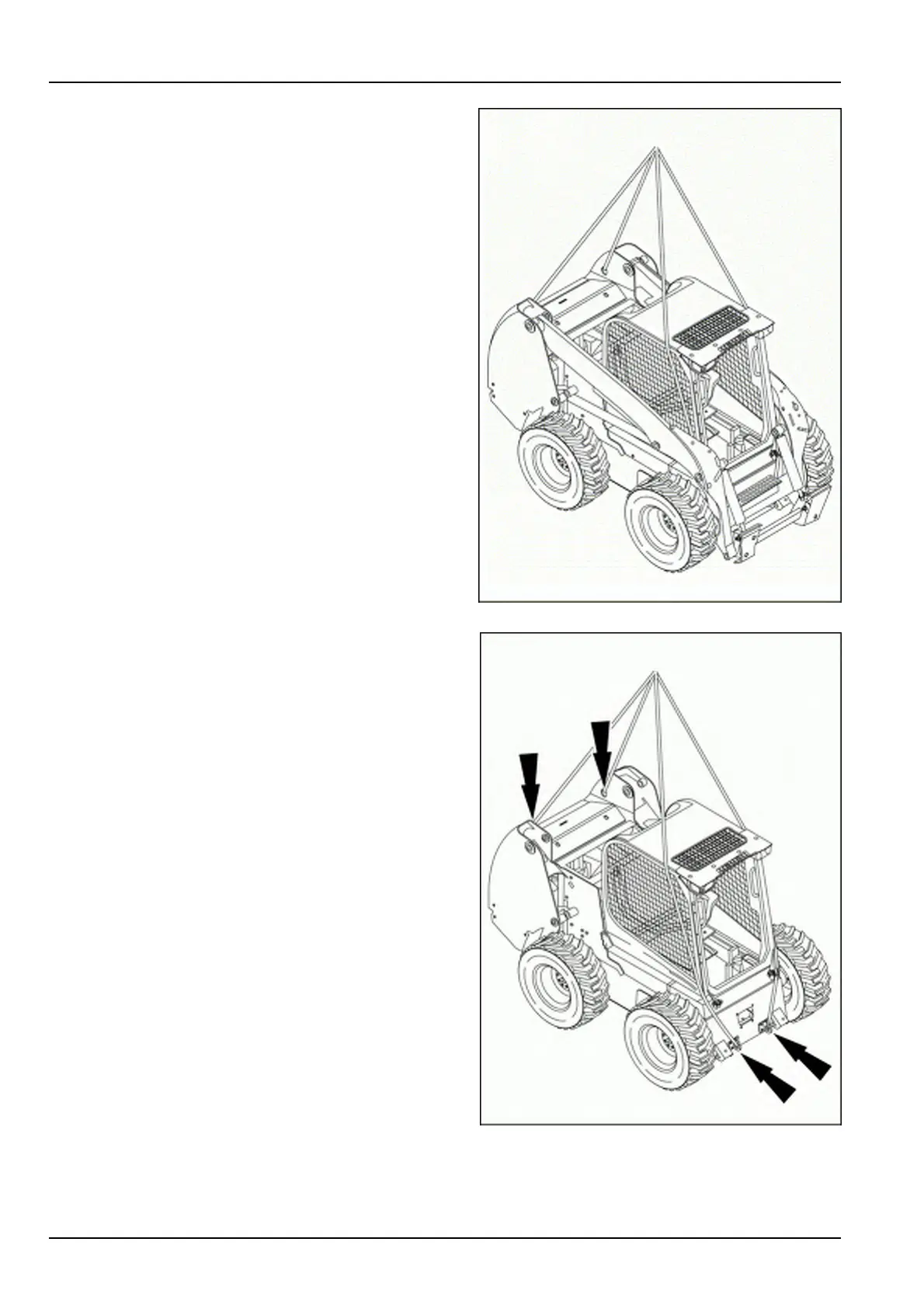

RAIL14SSL0393BA11
NOTE:Foraclearviewofthemachine’sliftingpointsand
theslingroutingtheloaderarmisnotshown.Donot
removetheloaderarms.
Ateachofthemachine’sliftingpointswillbealiftingpoint
decal
RAIL14SSL0394BA12
5-6
