CASE CONSTRUCTION Alpha Series - ISO Control Pattern Lift Arm and Bucket Controls; Lift Arm and Bucket Controls

3-CONTROLSANDINSTRUMENTS
ISOcontrolpatternliftarmandbucketcontrols
Liftarmandbucketcontrols

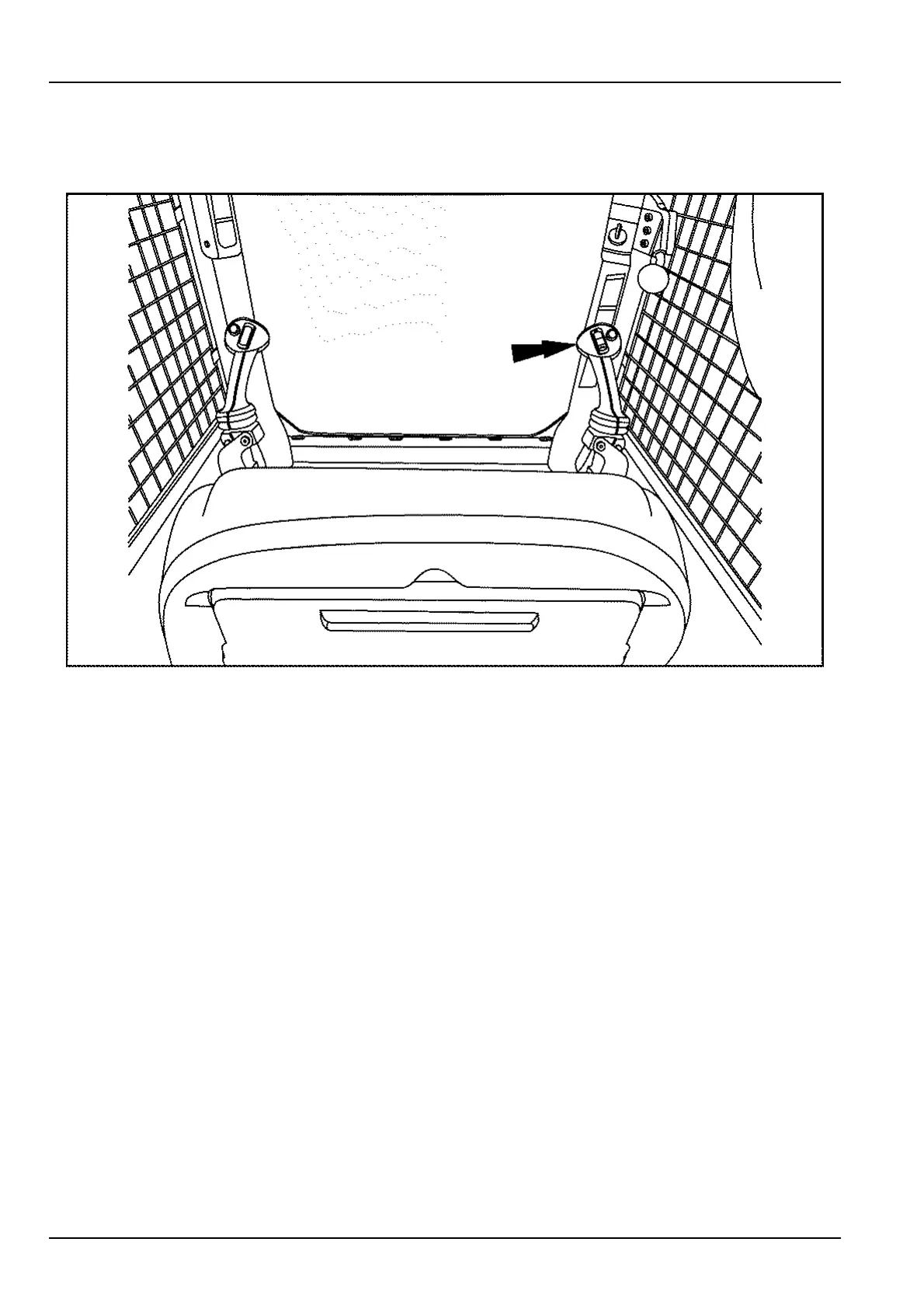

RAIL17SSL0057FA1
Liftarmraiseandlowercontrol.
•
Pullbackontheright-handcontrollevertoraise(up)theliftarm.
•
Pushtheright-handcontrolleverforwardtolower(down)theliftarm.
•
TheliftarmspoolisequippedwithadetentFLOATcircuit.Inthisdetentpositiontheliftarmwilloatoverchanging
groundcontourandtheleverwillremaininthispositionuntilpulledbacktowardtheupstrokeslightly.
Engagetheoatfeature:
Presstheoatbuttonontheright-handcontrolleverandpushtheleverpartiallyforward.Iftheoperatorhasthe
right-handcontrolleveralreadypartiallyinthedownstrokepositionandthenpressestheoatbutton,theoat
featurewillengage.
Disengagetheoatfeature:
Pullbackontheright-handcontrolleveroutofthedetentposition.
Bucketdumpandcurlcontrol.
•
Pivottheright-handcontrolleverinward(down)andthebucketwillrollback(curl).
•
Pivottheright-handcontrolleveroutward(up)andthebucketwilldump.
NOTE:Thereisnodetentoroatpositiononthebucketdumpandcurlcircuit.
3-22
