CASE CONSTRUCTION Alpha Series - Instrument Cluster; Electronic Instrument Cluster (EIC)

3-CONTROLSANDINSTRUMENTS
INSTRUMENTCLUSTER
ElectronicInstrumentCluster(EIC)
TheElectronicInstrumentCluster(EIC)isontheright-
handcabpost.
Onceintheseat,thealarmsoundsandselectedlamps
illuminatebriey.Monitortheselampsonadailybasis
toconrmthattheywillfunctionintheeventofasystem
alarm.Thefuelgaugeandhourmeterwillremainillumi-
natedforoperatormonitoring.

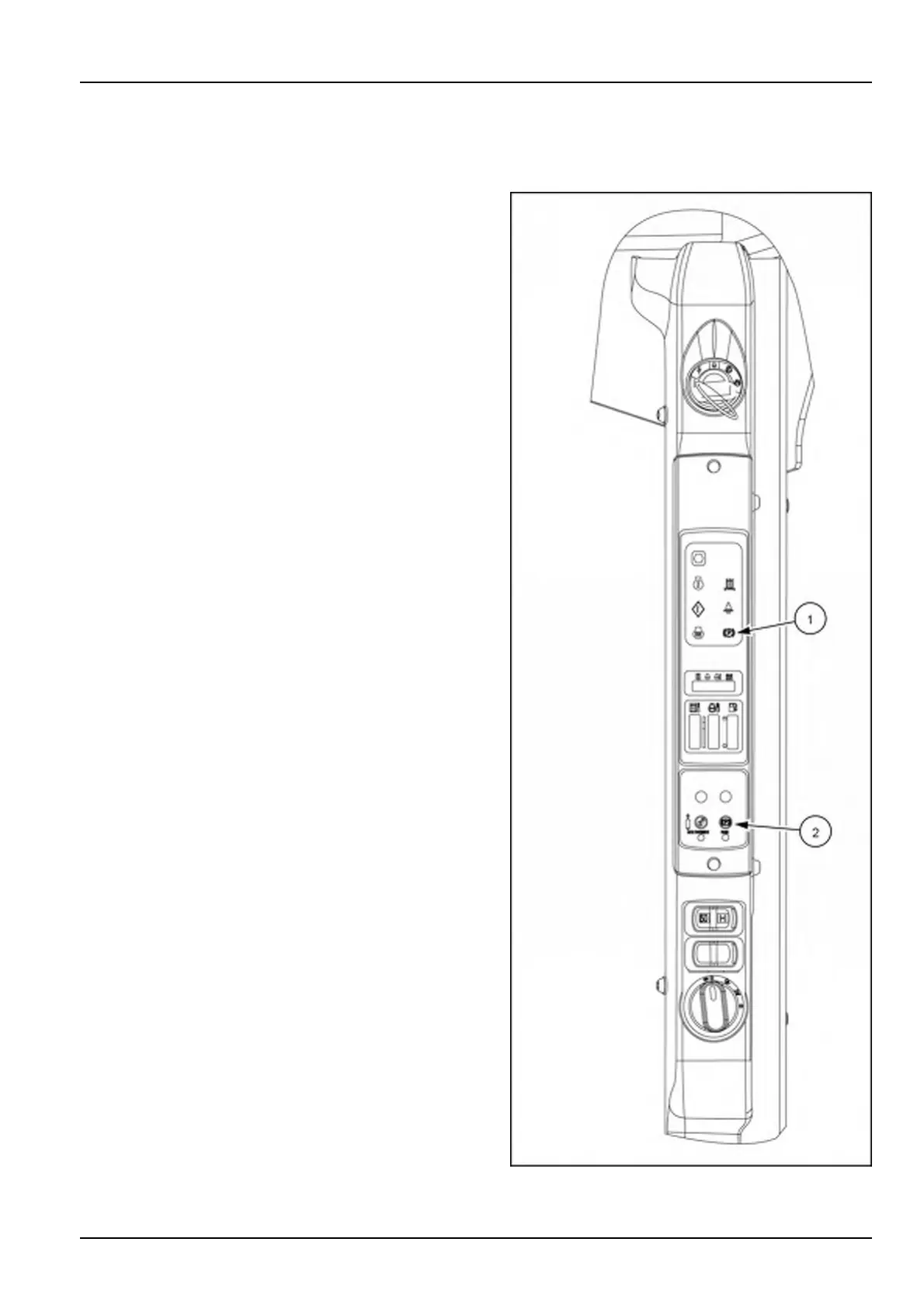

Whenstarted,themachinewillbeinparkwiththepark
brakelamp(1)illuminated.Theparkbrakebuttonison
theright-handcontrollever.
Theoperatormustbeintheseatwiththeseatbeltfas-
tenedandtherestraintbarlowered.Aftertheoperator
startsthemachine,theoperatormustpushtheOPERATE
button(2)toactivatetheloaderarmsandgrounddrive.
Asemi-hidden“Setup”menuallowstheusertoview,se-
lect,change,andcustomizeanumberofmachineset-
tings.AsecuritycodemaybeenteredintotheInstrument
Cluster.Oncethesecuritycodehasbeenentered,each
userwillhavetoenterthecodebeforethemachinewill
start.Contactyourdealerfordetailedinformationonthe
“Setup”menuandsecurityfeatureactivation.
NOTE:Faultcodedenitionsarelocatedinthetrou-
bleshootingsection.Theupdatedfaultcodeisvisibleto
theoperatoronthedisplayontheright-handcolumn.
NOTICE:Lowhydraulicchargepressurewillcauseen-
gagementoftheparkbrake.WithanElectro-Hydraulic
(EH)controlunit,theparkbrakelampwillashandan
audiblealarmwillsound,ifthisconditionexists.
