1-GENERALINFORMATION

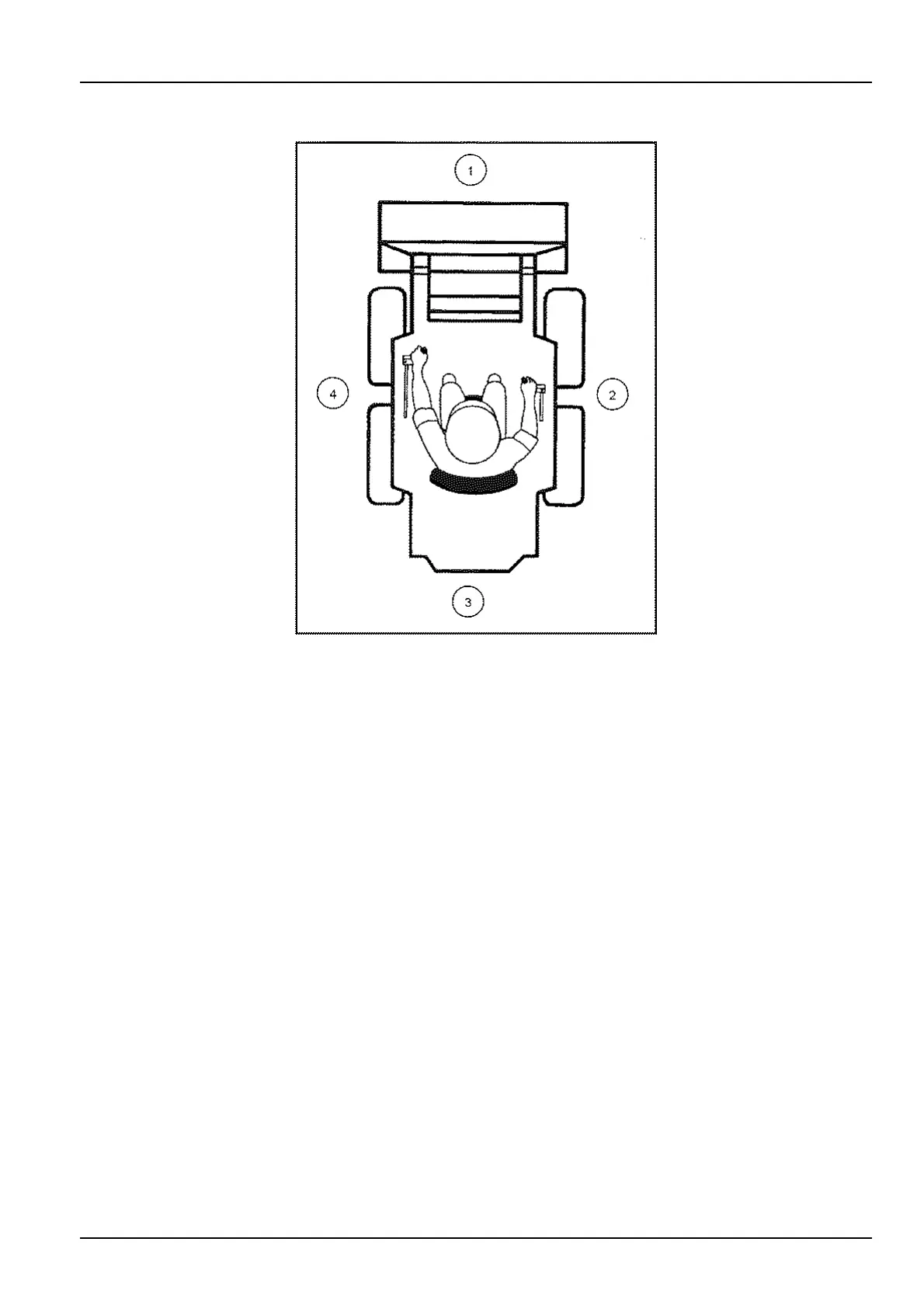

Machineorientation

RAPH12SSL0057BA1

Thetermsfront(1),right-handside(2),rear(3),andleft-handside(4)areusedinthismanualtoindicatethe

directionasseenfromtheoperator'sseat.

1-9
