CASE CONSTRUCTION Alpha Series - Window Glass, Cab

3-CONTROLSANDINSTRUMENTS
Windowglass,cab
Openingandclosingwindowglass
NOTE:Machinesmaybeequippedwitheitheroneofthe
stylesshown.Followtheprocedurethatisapplicableto
yourmachine.
Pivotleverwindowstyle

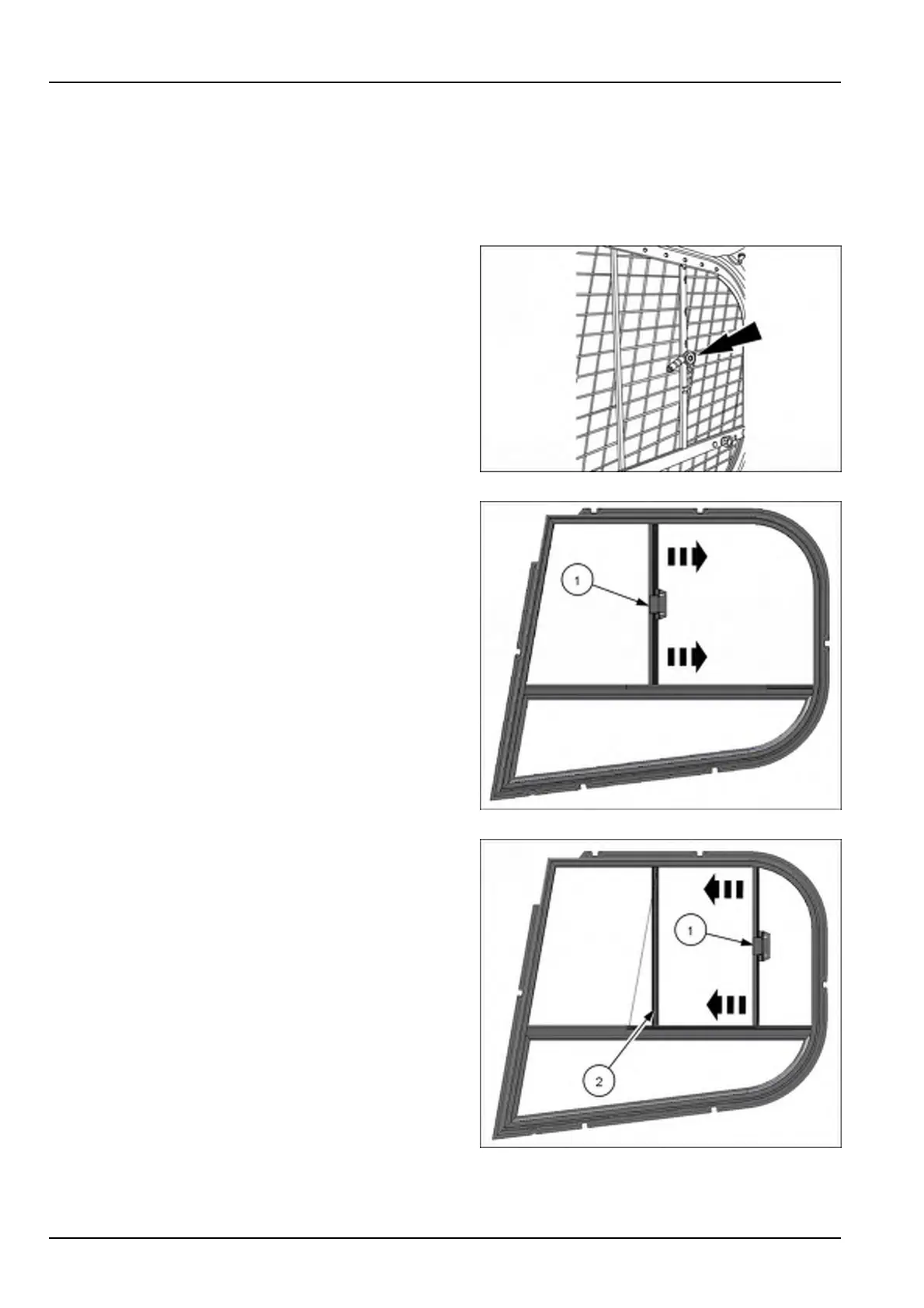

Eachslidingglasssection,whenequipped,hasanindi-
vidualleverforwindowopeningadjustment.Pivotlever
down,toallowwindowmovementandslidetheglassto
thedesiredposition.Oncethewindowisopen,release
theleverandwindowwillmaintainthatspot.
9310022681
Windowlatchstyle
Toopenthewindow.Pullthefrontpartofthewindow
latch(1)andslidethewindowintothedesiredposition.
Thewindowwillmaintainthatspot.
RAIL17SSL0039BA2
Toclosethewindow.Pullthefrontpartofthewindow
latch(1)andslidethewindowforwarduntilthelatchcan
engagetheverticalrailofthexedwindow(2).
RAIL17SSL0038BA3
3-2
