CASE CONSTRUCTION Alpha Series - Cab Door Removal and Installation

7-MAINTENANCE
Cabdoorremovalandinstallation
NOTICE:Duringtheremovalprocessretainalldoorhingeshimsandkeepinasecurelocation.Theshimsarere-
quiredforapropertwheninstallingthedooratalaterdate.
Removal
1.Opendoor.
2.Disconnectthewasherhose(1).
3.Disconnectthewireharness(2).
4.Plugthejumperconnectorintotheharness(2).
NOTE:Jumperconnectoristiedtothedoorharness.

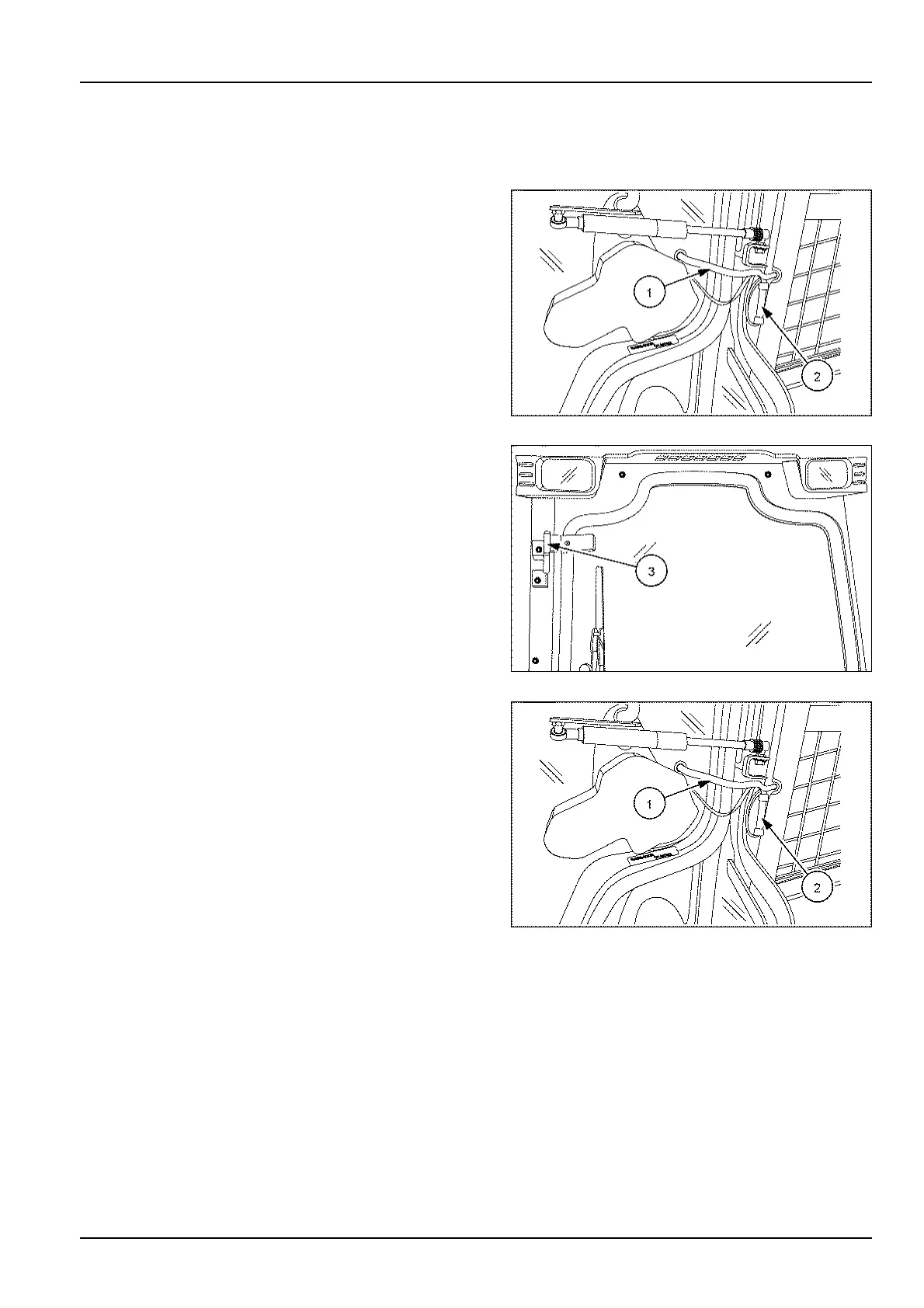

931068951
5.Liftthedooroffthehinges(3).
931068422
Installation
NOTE:Ifdoorhingeshimswereremovedduringthere-
movalprocedure,installtheshims.
1.Installthedooronthehinges.
2.Installthewasherhose(1).
3.Unplugthejumperconnectorfromthewireharness
(2).
4.Connectthewireharness(2).
5.Tiethejumperconnectortothedoorharness.
931068953
