CASE CONSTRUCTION Alpha Series - Turning the Machine

3-CONTROLSANDINSTRUMENTS
Turningthemachine
Pivotturn-powertoonlyoneside
•
Tomakeapivotturnleft:holdtheleft-handcontrollever
inneutralandmovetheright-handcontrolleverforward.
•
Tomakeapivotturnright:holdtheright-handcontrol
leverinneutralandmovetheleft-handcontrolleverfor-
ward.
•
Tomakeapivotturninreverseleft:afterconrmingthat
allpersonnelandobjectsareclear,holdtheleft-hand
controlleverinneutralandmovetheright-handcontrol
leverrearward.
•
Tomakeapivotturninreverseright:afterconrming
thatallpersonnelandobjectsareclear,holdtheright-
handcontrolleverinneutralandmovetheleft-hand
controlleverrearward.

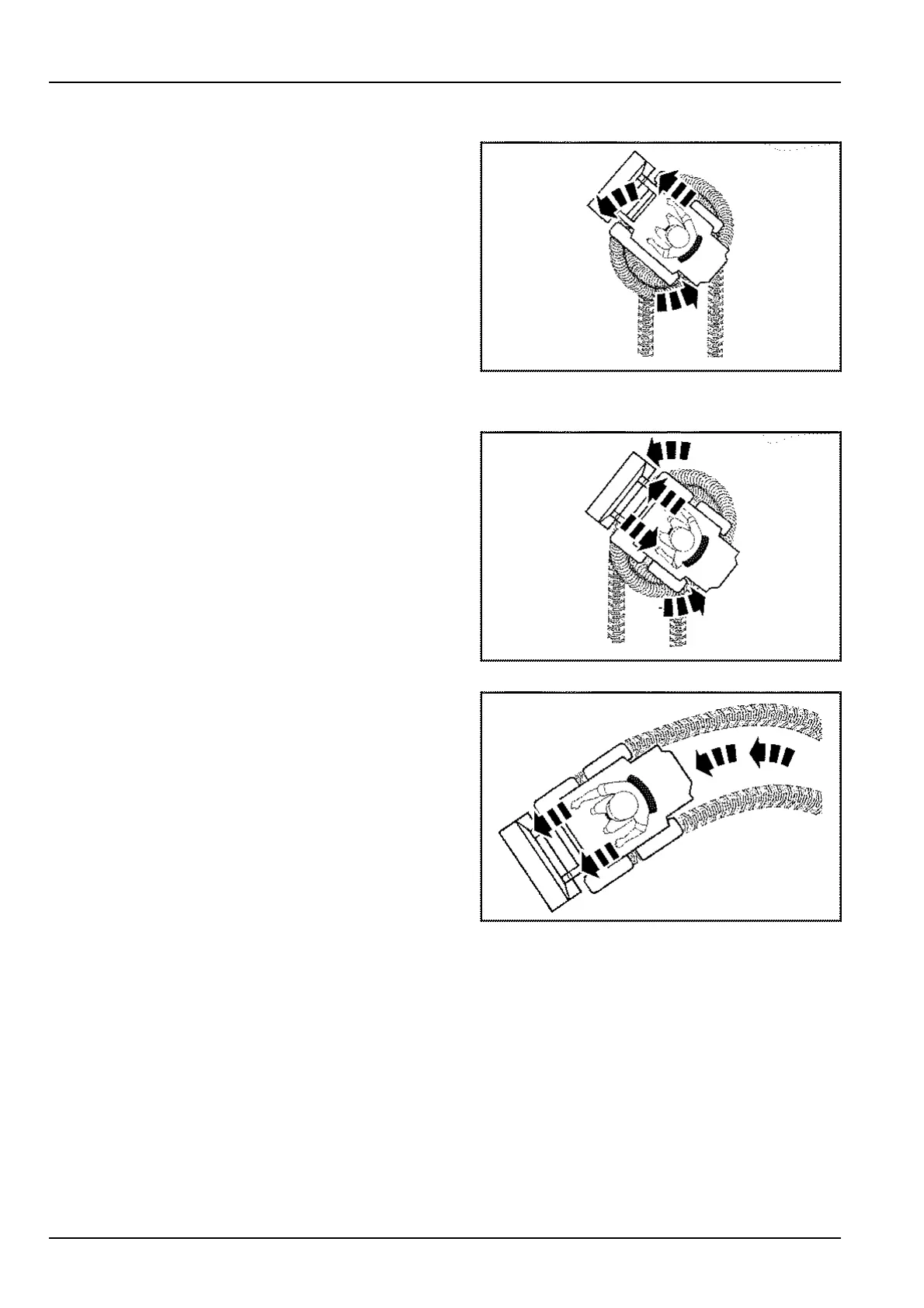

BT06G0221
Counterrotationturn-powertobothsidesinopposing
directions
•
Tocounterrotateleft:movetheleft-handcontrollever
rearwardandpushtheright-handcontrolleverforward.
•
Tocounterrotateright:movetheright-handcontrol
leverrearwardandpushtheleft-handcontrolleverfor-
ward.
BT06G0232
Gradualturn-powertobothsidesinthesamedirection
•
Tomakeagradualturnleft:movetheright-handcontrol
leverfurtherforwardwhilepushingtheleft-handcontrol
leverpartiallyforward.
•
Tomakeagradualturnright:movetheleft-handcontrol
leverfurtherforwardwhilepushingtheright-handcon-
trolleverpartiallyforward.
BT06G0243
