7-MAINTENANCE

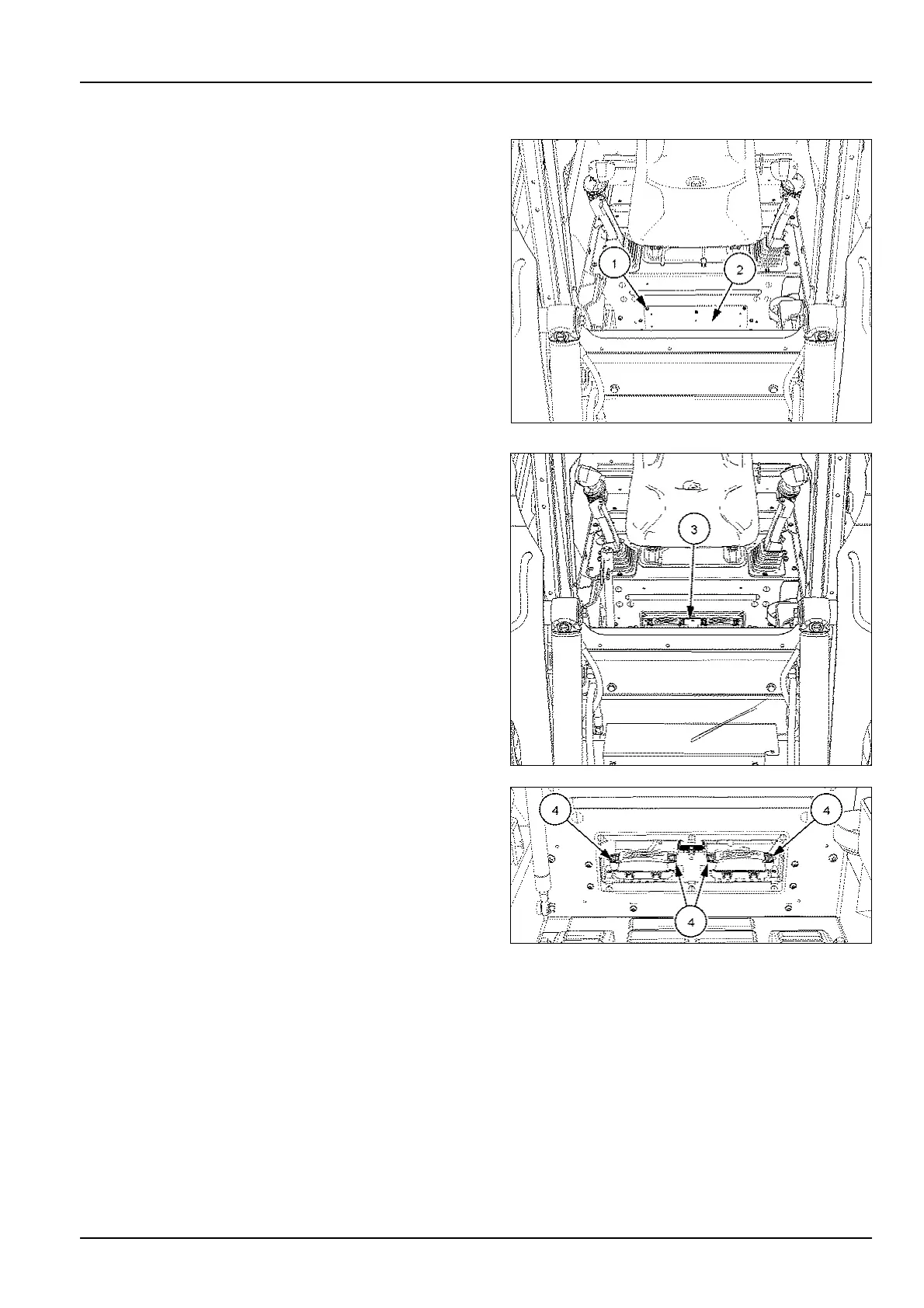

Fuseandrelaysinthecabarea–Mechanicalcontrolsonly
1.Removeallthescrews(1)fromthecoverpanel(2)to
exposethefuseandrelayblocks.
NOTE:Thefuseandrelayidenticationdecalisonthe
backsideofthecoverpanel.
2.Removethefusepanel(2)toexposethecabarea
fusesandrelays(3)
3.Pressbothlockingtabs(4)toreleaseandremovethe
cover.
NOTICE:Onlyreplacefuseandrelayswiththesame
typeandamperagerating.Failuretodosomayresult
inanelectricalsystemfailure.
4.Locateandchecktheproblemfuseorrelay.Ifneces-
sary,replacethefuseorrelay.
RAIL15SSL0101BA3
NOTICE:Avoidwaterandmoisturefromenteringthefuse
andrelayblock,makesurethatthecoverisproperlyposi-
tionedandfullylatched.Failuretodosomayallowwater
ormoisturetoenterthepowercenterandpossiblyresult
inanelectricalsystemfailure.
5.Alignthelockingtabsonthefuseblockcoverandpush
downtosecureinplace.Makesurethatthecoveris
inproperpositionandsecure.
NOTICE:Avoidwaterfromenteringthepowercenter,
makesurethatthefusepanelcoverisintheproperposi-
tionandsecure.Failuretodosomayallowwatertoenter
thepowercenterandpossiblyresultinanelectricalsys-
temfailure.
6.Positionthefuseandrelaycoversothatallsidesare
ushorevenwiththeheelkickplate.
7.Holdthefuseandrelaypanelcoverinposition.
8.Tightenthescrewstosecurethecoverinposition.
RAIL16SSL0032BA4
RAIL15SSL0355AA5
