7-MAINTENANCE

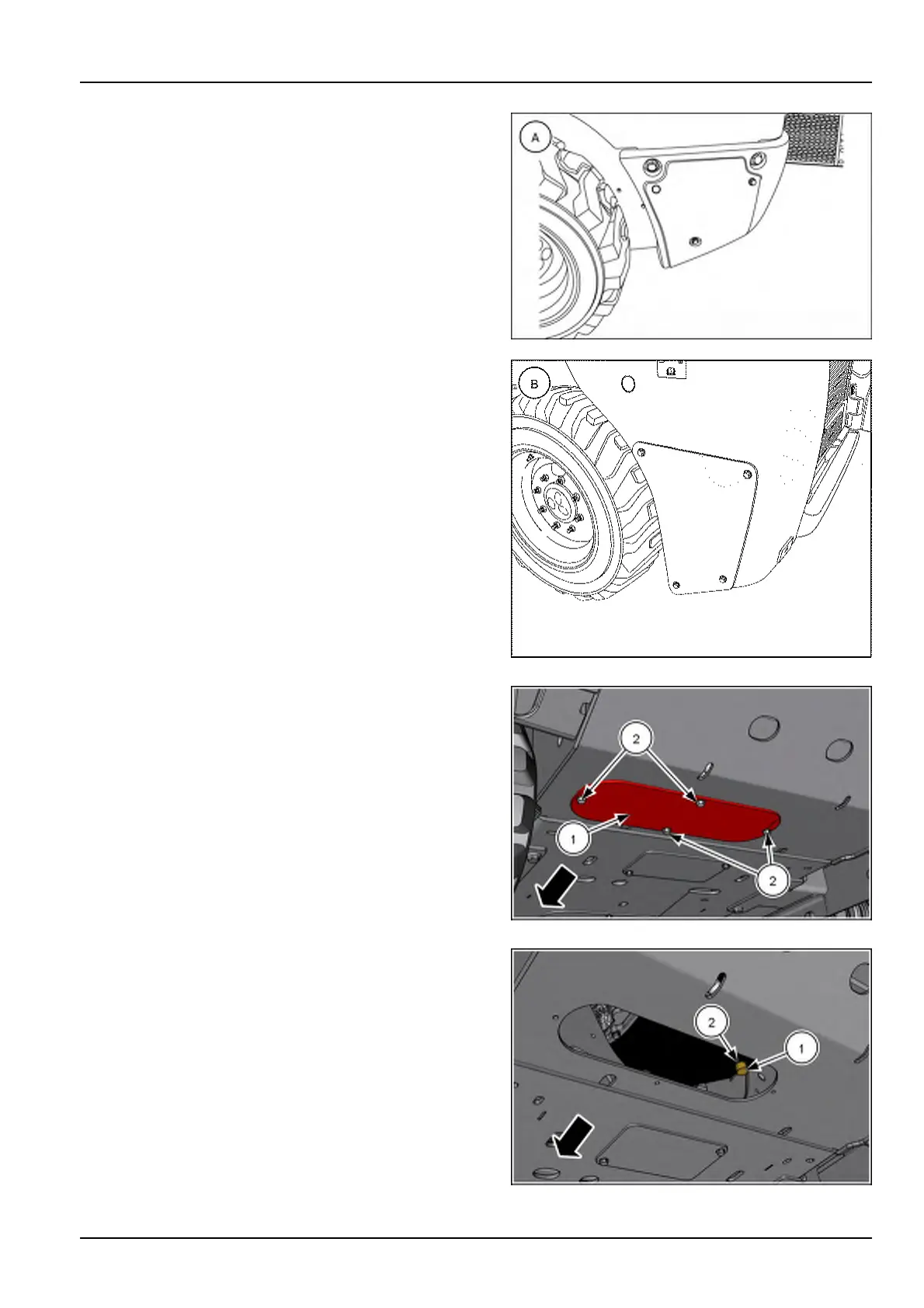

2.Removetheaccesscoverfromtherearlowerleft-hand

sideofthemachine.

NOTE:Bothstyleaccesspanelsshown.

3.Locatetheengineoilremotelter.

4.Ifapplicable,usecompressedairtocleantheengine

oillterassembly.

NOTICE:Ifcompressedairisnotavailable,useacleanrag

orclothtowipetheareaclean.Thisreducesthepotential

ofdirtcontaminationintotheengine.

9310016371

RAIL13SSL0582BA2

5.Removethemountinghardware(2)andcover(1)from

underneaththemachine.

RAPH17SSL0168QA3

6.Removethecap(1)fromthequickdisconnectdrain

tting(2).

RAPH17SSL0169QA4

7-39
