CASE CONSTRUCTION Alpha Series - Page 205

7-MAINTENANCE

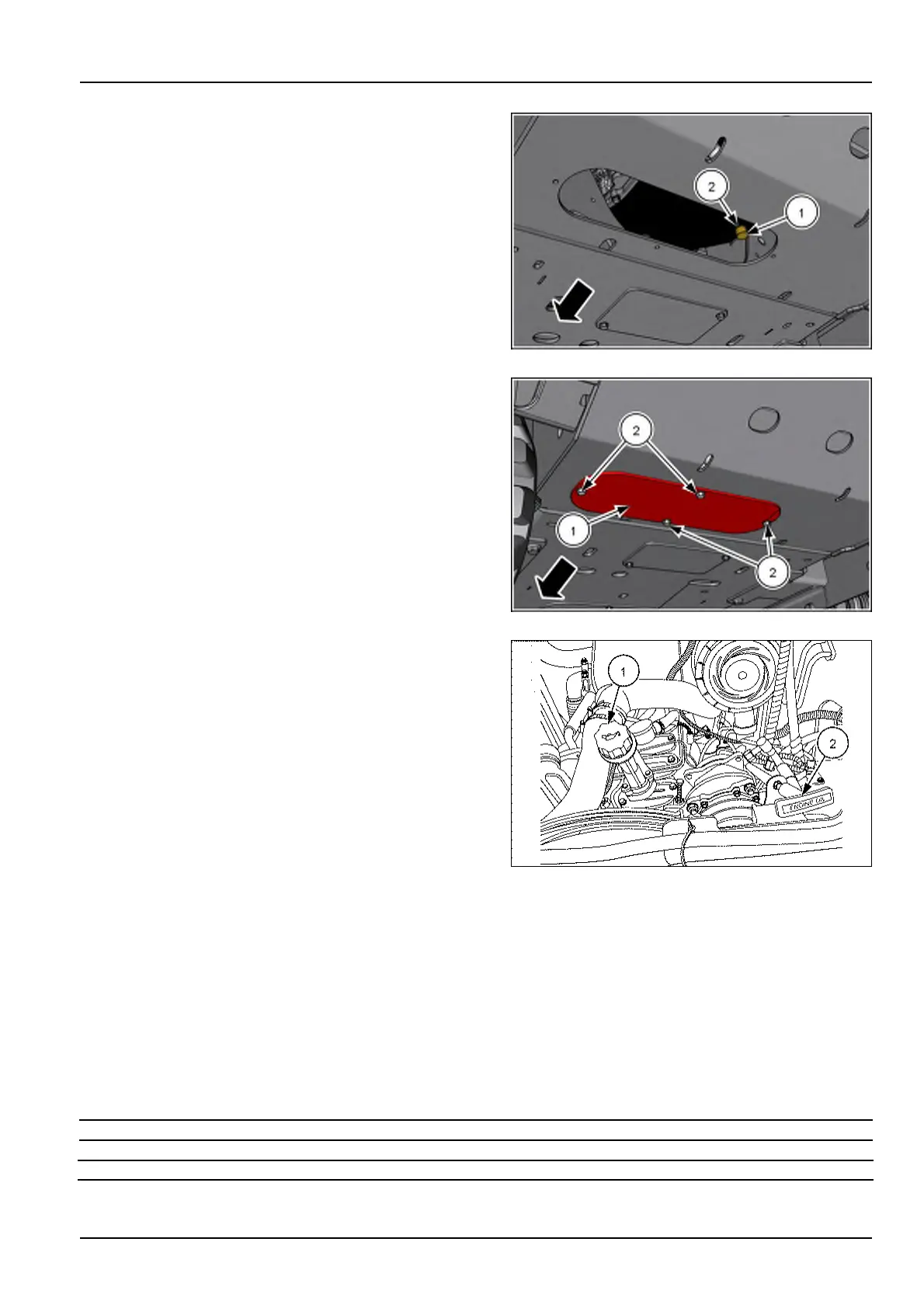

18.Installthecap(1)ontothequick-disconnectdraint-
ting(2).
NOTE:Makesuretheo-ringisinstalledonthedraintting
(2),ifitisdamaged,thenreplacewithnew.
NOTE:Thecap(1)isonlyhandtightonthedraintting(2).
RAPH17SSL0169QA7
19.Installthecover(1)underneaththemachineandse-
curewiththehardware(2).
RAPH17SSL0168QA8
20.Removetheengineoildipstick(2)toprovide
crankcaseventilation.
NOTICE:Slowlylltoavoidoodingthevalvecoverwith
oil.
21.Useanoilspoutthatissmallerthantheengineoilll
neck(1),allowingairtopassaroundtheoilllneck.
Slowlyaddthecorrecttypeandquantityofoil,seethe
oiltablebelow.
NOTE:Keeptheoilllspoutintheupperhalfoftheoilll
neck.
22.Installtheengineoilllcap.
23.Installtheengineoildipstick.
24.Starttheengineandrunatidlespeed.Checktheen-
gineoillteranddrainplugforleaks.After2min,stop
theengine,waitfor2–3minandchecktheengine
oillevel.
25.Installaccesscoverandsecurewithbolts
26.Closerearaccessdoorandenginehood.
931068719
Enginecrankcaseoil
Capacity-withlterchange
SR130,SR150,SR175,SV1857.0l(7.5USqt)
SR200,SR220,SR250,SV250,SV300,TR270,TR320,TV3809.5l(10USqt)
SpecicationsCASEAKCELAUNITEKNO.1™SBLCJ-4
7-41
