7-MAINTENANCE

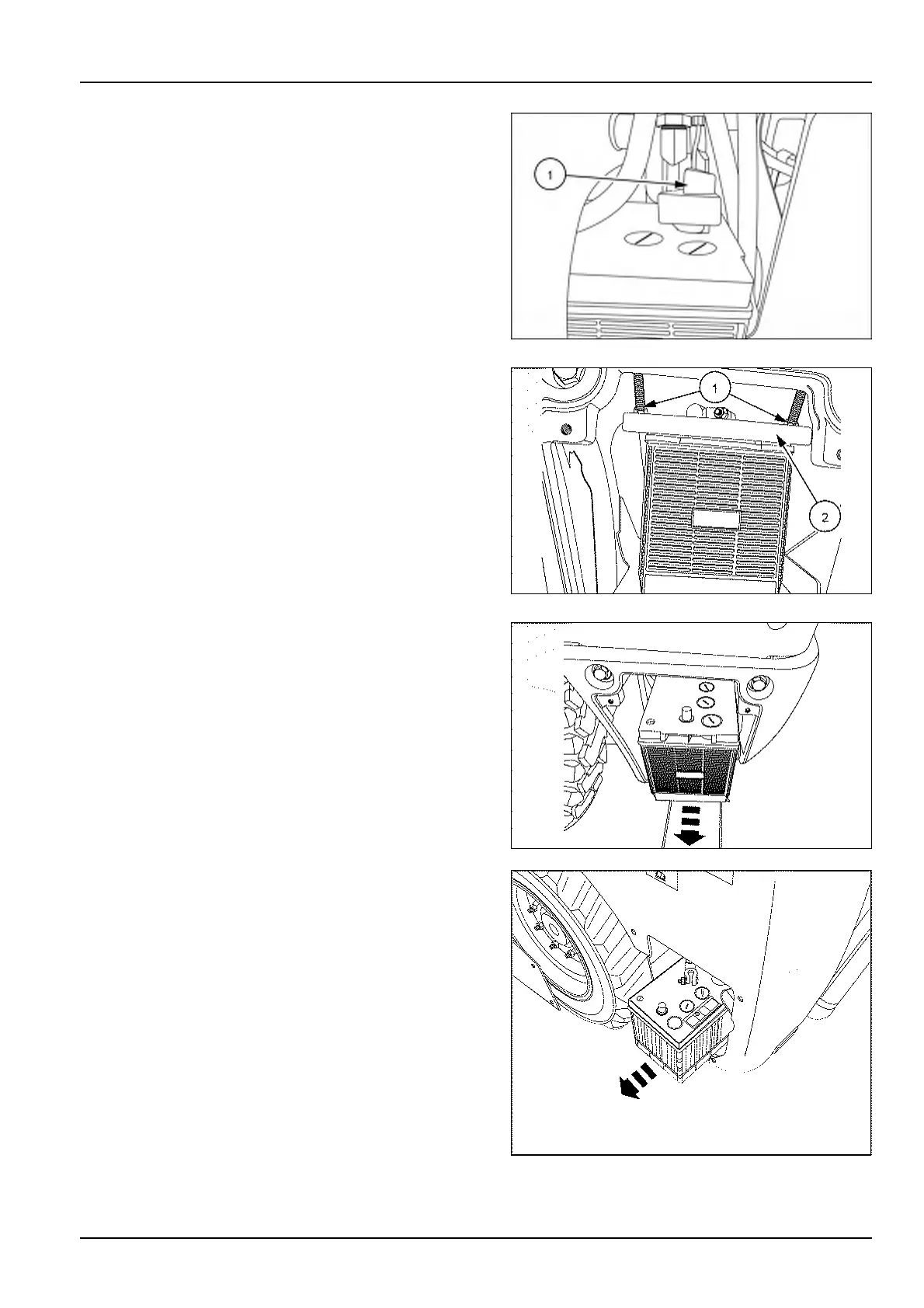

4.Disconnectthepositivecableconnection(1).

9310020545

5.Loosenthenuts(1)andremovethebatteryhold-down

(2).

9310016396

6.Removethebattery(1)indirectionofthearrow.

9310016427

RAIL13SSL0581BA8

7-69
