Case CX490D - Main Modules for Transport

5-TRANSPORTOPERATIONS

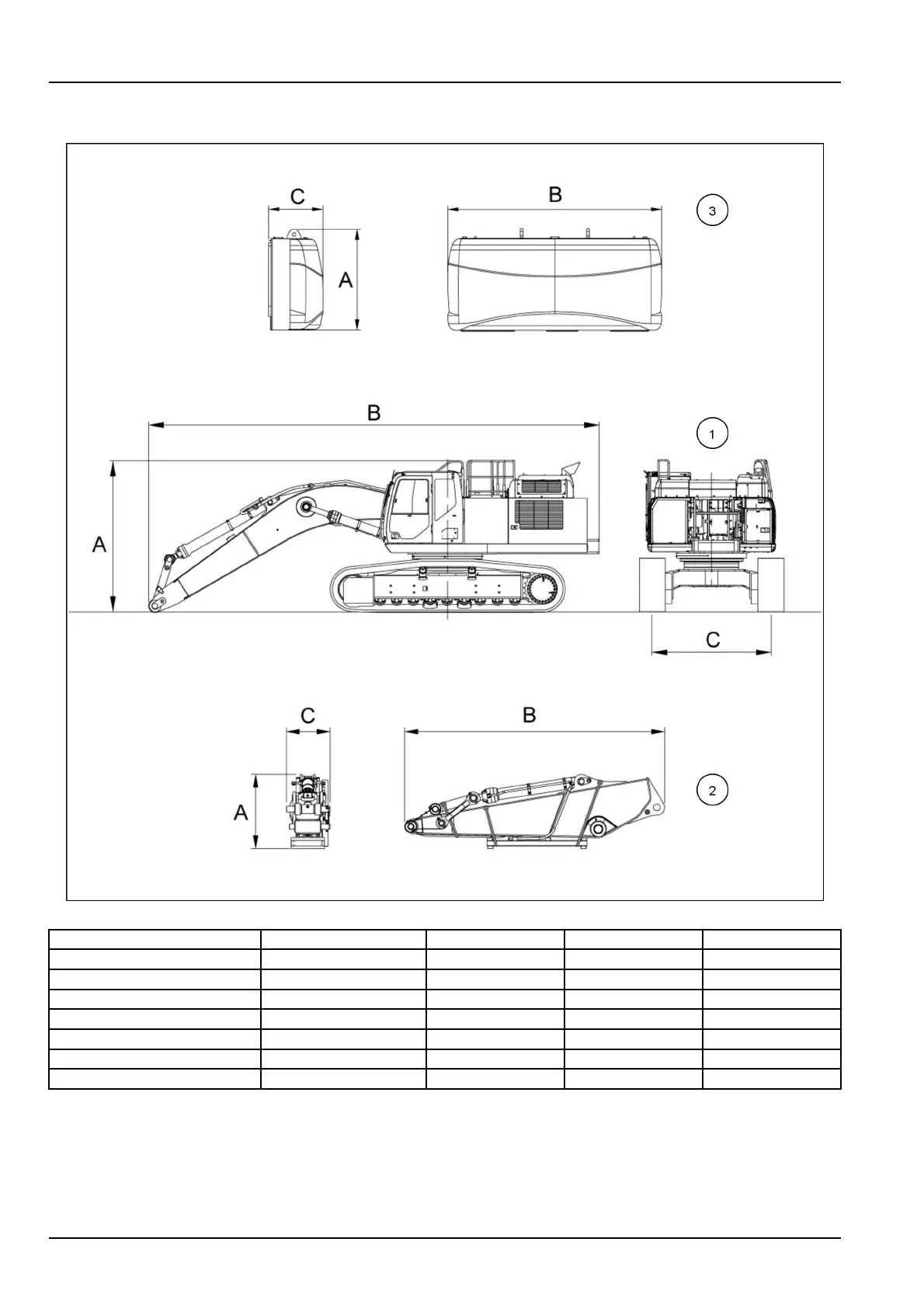

Mainmodulesforroadtransport(CX490D)
SMIL19CEX2022GA1
Weight
(A)(B)(C)
Basemachine(LC)(1)35600kg(78485lb)3.55m(139.8in)10.45m(411.4in)2.75m(108.27in)
Basemachine(RTC)(1)37000kg(81571lb)3.70m(145.7in)10.43m(410.6in)(*)
Shortarm(2)2600kg(5732lb)1.33m(52.4in)3.83m(150.8in)0.85m(33.5in)
Mediumarm(2)2950kg(6504lb)1.34m(52.8in)4.69m(184.6in)0.85m(33.5in)
Longarm(2)2780kg(6129lb)1.33m(52.4in)5.30m(208.7in)0.85m(33.5in)
Extralongarm(2)3140kg(6923lb)1.47m(57.9in)6.18m(243.3in)0.85m(33.5in)
Counterweight(3)10200kg(22487lb)1.43m(56.3in)2.99m(117.7in)0.76m(29.9in)
NOTE:(*)Min2.39m(94.09in),Max2.89m(113.78in).
