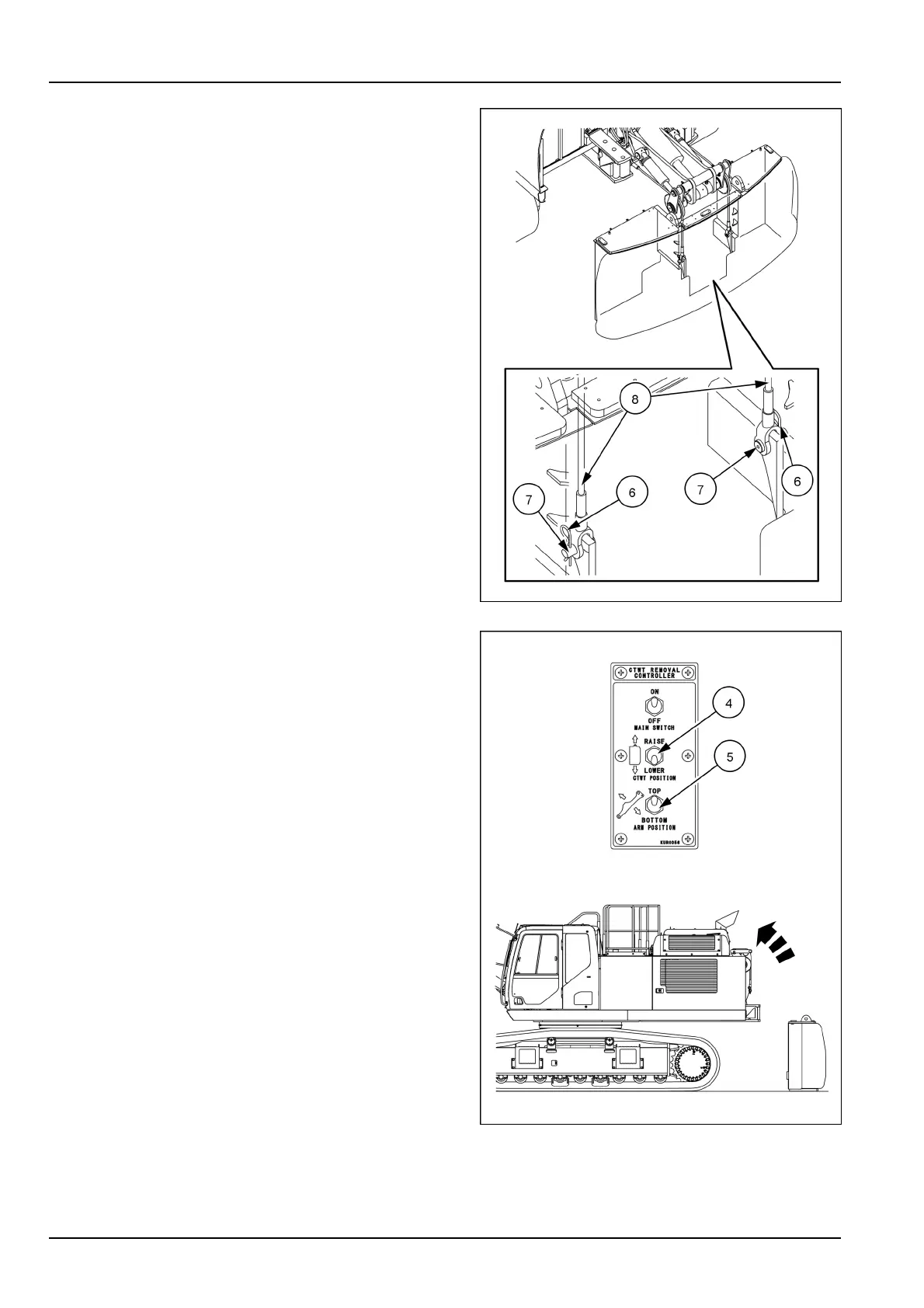

20.Removetheclips(6)ontheliftingbracketofthecoun-
terweight.
21.Removethepins(7).
22.T akethewireropes(8)outfromthebrackets.
23.Reinstallthepins(7)tothebracketsbymeansofthe
clips(6).
SMIL20CEX1354BA8
24.Getontothecab,starttheengine,andmakesure
thatthegatelockleverisincentralposition.
25.Settheenginespeed4-5stepsabovelowidle.
26.Reachtherearright-handcompartment.
27.TurntheCTWTPOSITIONswitch(4)toLOWERpo-
sitionuntiltheliftingcylindersarefullyretracted.
28.TurntheARMPOSITIONswitch(5)toTOPposition
toraisethearmuntilitstandsverticalintoitscom-
partmentontheupperframe.
SMIL20CEX1355BA9
