9-ACCESSORIES

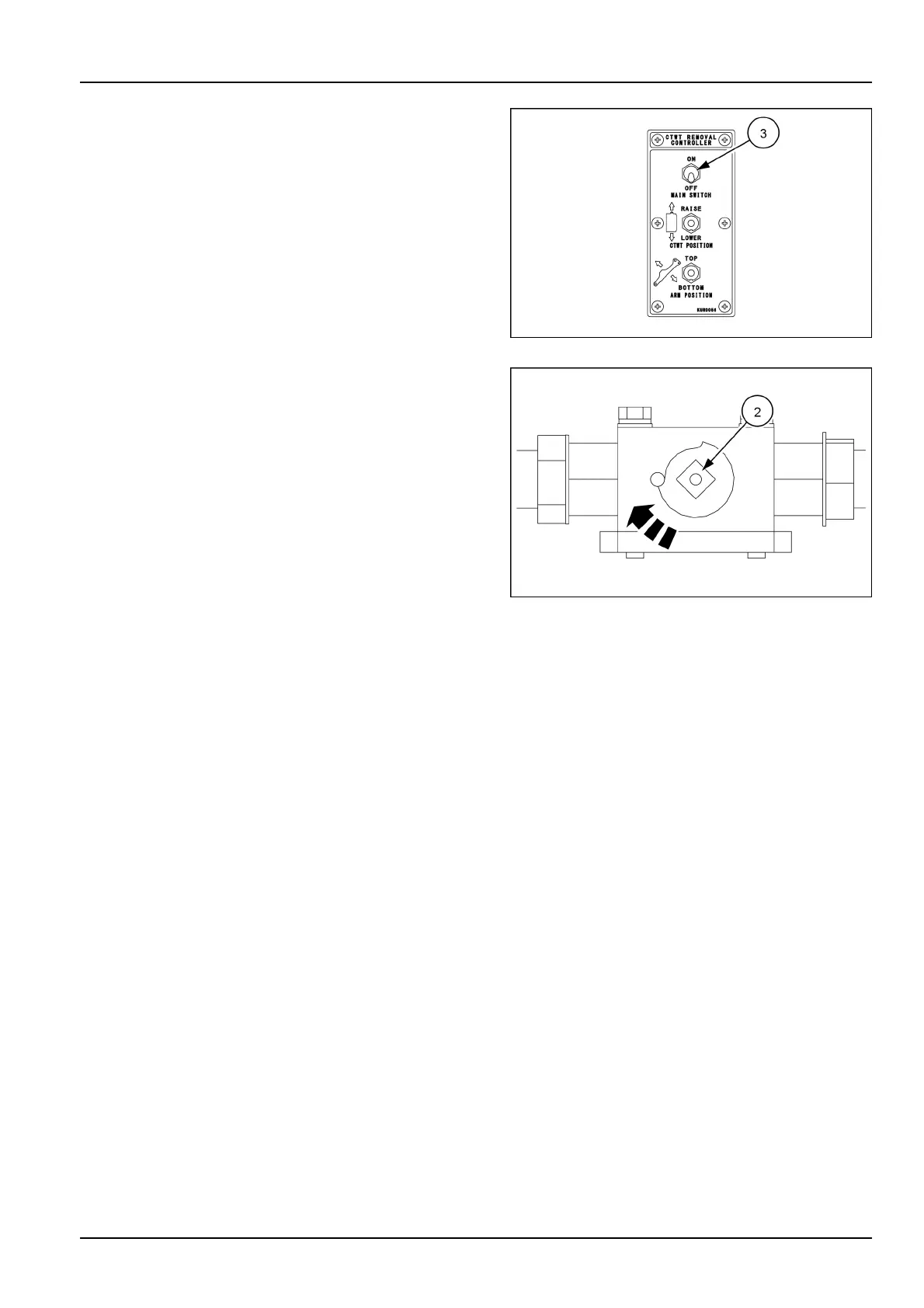

29.TurntheMAINSWITCH(3)toOFFposition.

SMIL20CEX1361AA10

30.Turnthestopvalve(2)clockwisetoclosethehy-

drauliccircuitofthecounterweightremovalsystem.

31.Closetherearright-handdoor.

32.Getontothecab,andturntheenginespeedthrottle

tolowidleposition.Waitforthegreencoolingdown

icontoappear.

33.Stoptheengineandremovethestarterkey.

SMIL20CEX1345AA11
