9-ACCESSORIES

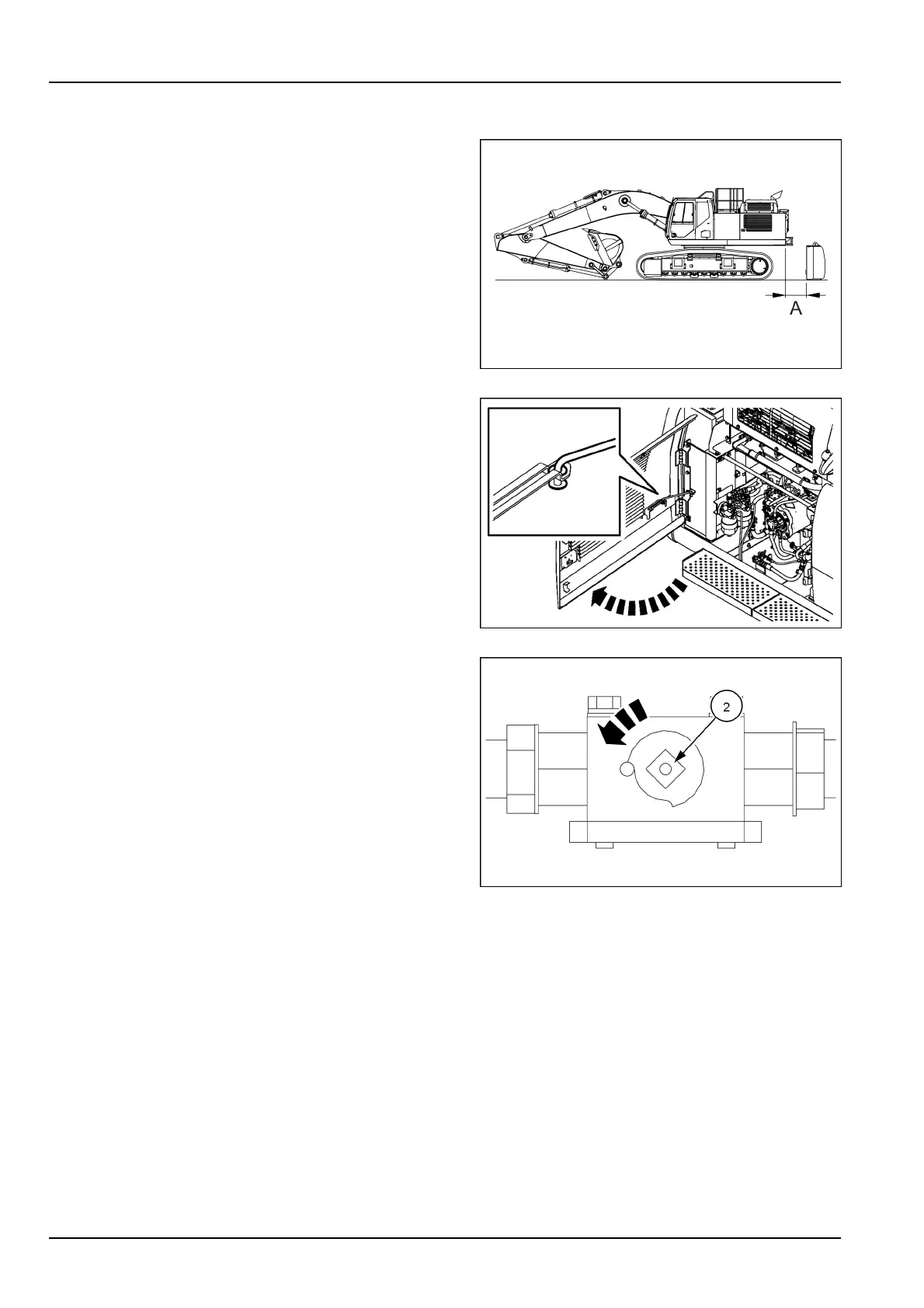

Installingthecounterweight
1.Makesuretoplacethemachineandthecounterweight
onahardandlevelsurface.
2.Aligntheupperframetotheundercarriage,andget
themachineclosetothecounterweight.Themachine
mustbepositionedsoastheupperframeandthe
counterweightareparallelandcentered,atarefer-
encedistance(A)of840mm(33.1in)
3.Lowertheattachmenttotheground.
4.Setthegatelocklevertocentralposition.
5.Settheenginespeed4-5stepsabovelowidle.
SMIL20CEX1357AA12
6.Reachtherearright-handcompartment.
7.Opentherearright-handdoorandxitinopenposi-
tion.
SMIL15CEXY180AA13
8.Turnthestopvalve(2)counterclockwisetoopenthe
hydrauliccircuitofthecounterweightremovalsystem.
SMIL20CEX1344AA14
9-54
