Case CX490D - Page 363

9-ACCESSORIES

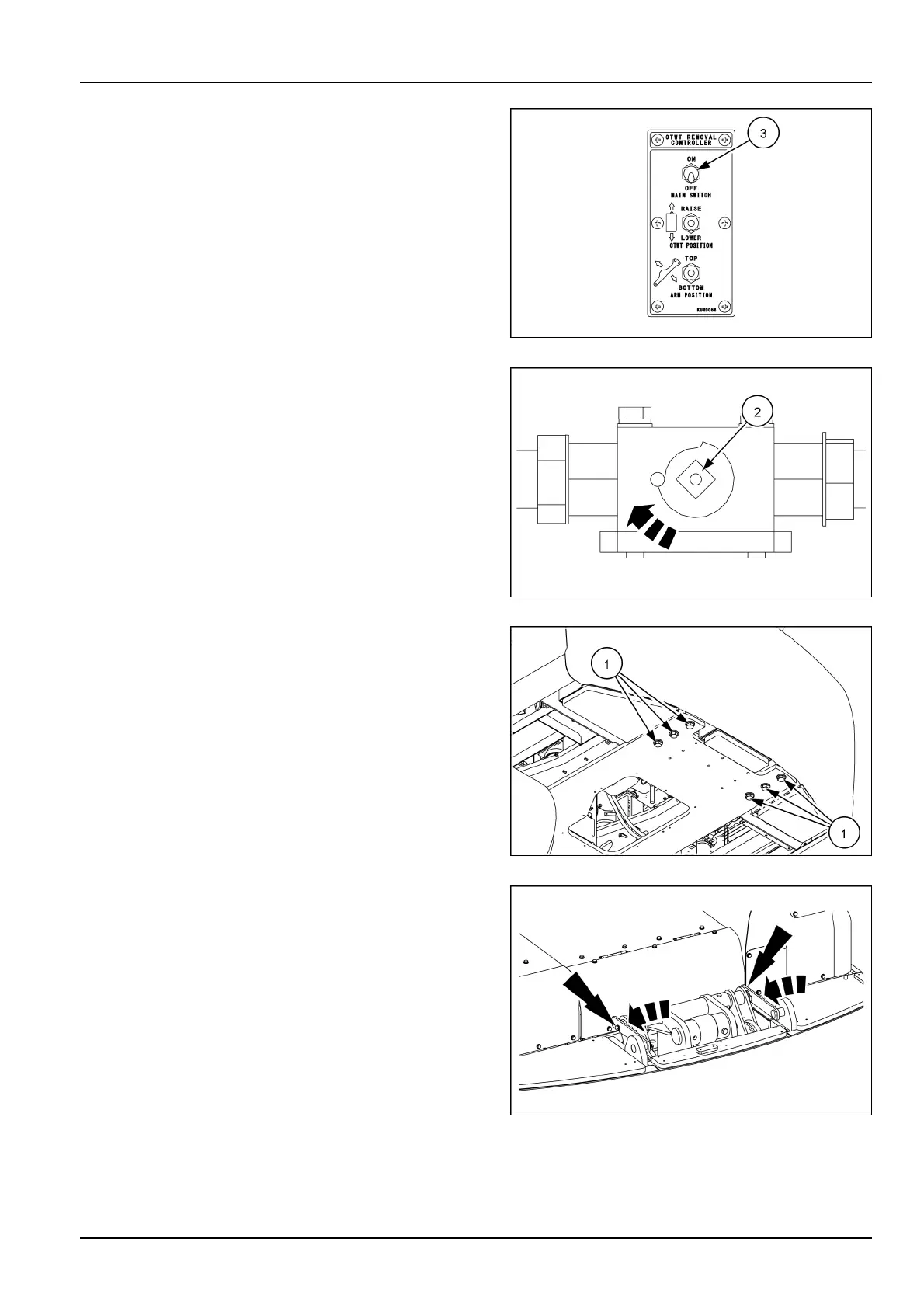

24.TurntheMAINSWITCH(3)toOFFposition.
SMIL20CEX1361AA19
25.Turnthestopvalve(2)clockwisetoclosethehy-
drauliccircuitofthecounterweightremovalsystem.
SMIL20CEX1345AA20
26.Getontothecab,andturntheenginespeedthrottle
tolowidleposition.Waitforthegreencoolingdown
icontoappear.
27.Stoptheengineandremovethestarterkey.
28.Installthesixmountingbolts(1)ofthecounterweight,
andtightenthemtothetorqueof1862–2058N·m
(1373–1518lbft).
SMIL20CEX1346AA21
29.Reachtheuppersideofthecounterweight,andposi-
tionthesecuringbracketsoftheremovalsystemby
looseningtheirmountingbolts.Then,tightenrmly
theboltstolockthebracketstotheframeofthere-
movalsystem.
30.Connecttheelectriccablestothecameras.
31.Closetherearright-handdoor.
SMIL20CEX1356AA22
9-57
