Cellwatch Frontier System Installation & User Manual
Section I – Installation Guide-29

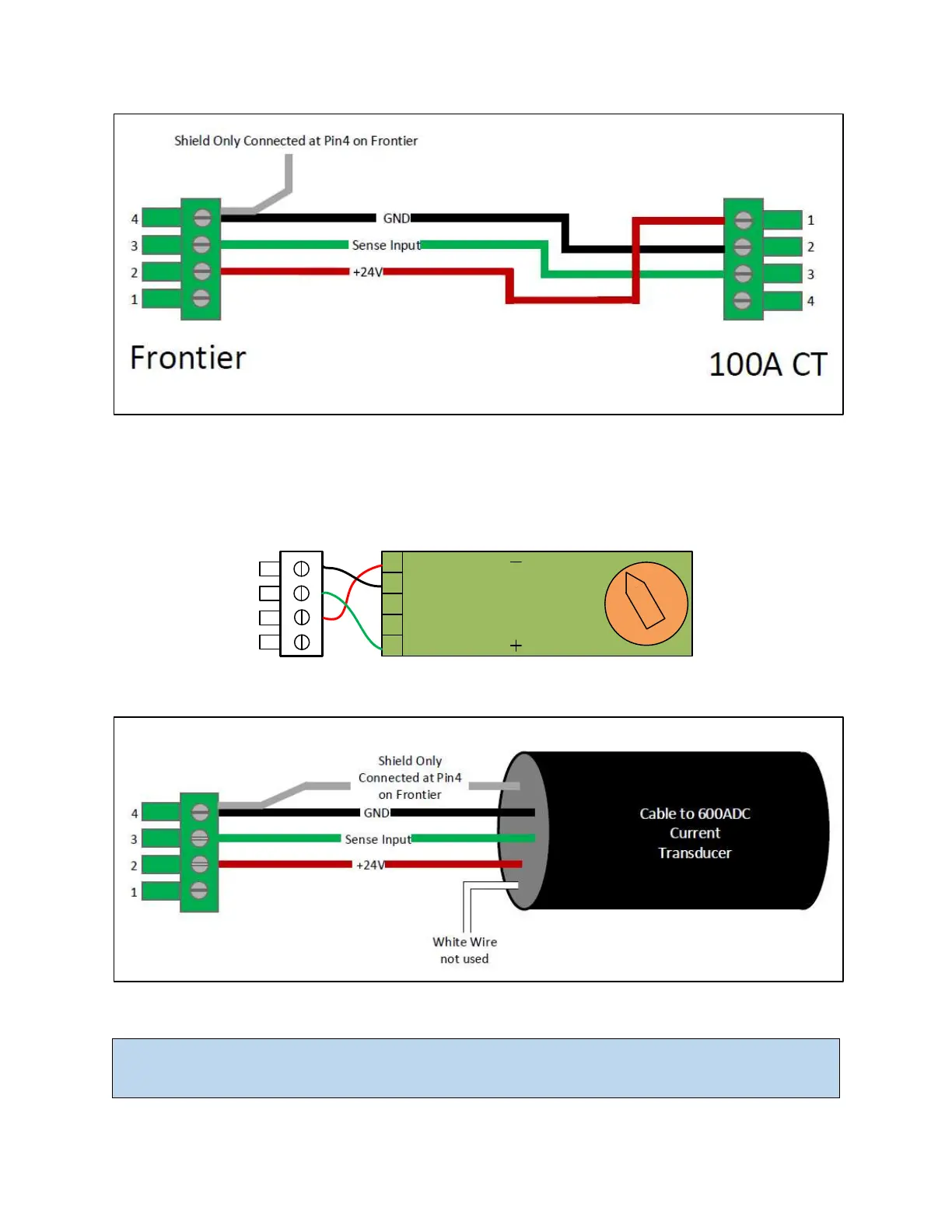

100A and 600A black low noise current transducer wiring
5
6
7
8
9
50A, 100A, 300A green current transducer wiring
600A and 1000A larger black current transducer wiring
Note: Only current transducers provided through NDSL are tested and approved to work with the
Frontier unit.
