Cellwatch Frontier - Page 38

Cellwatch Frontier System Installation & User Manual
Section I – Installation Guide-38
+ - + -
G
Bl, W,
Br, R
+ - + -
Br, R
O
Y
+ - + - + - + -
+
-
O
Y
G
Bl, W
DCM
DCM

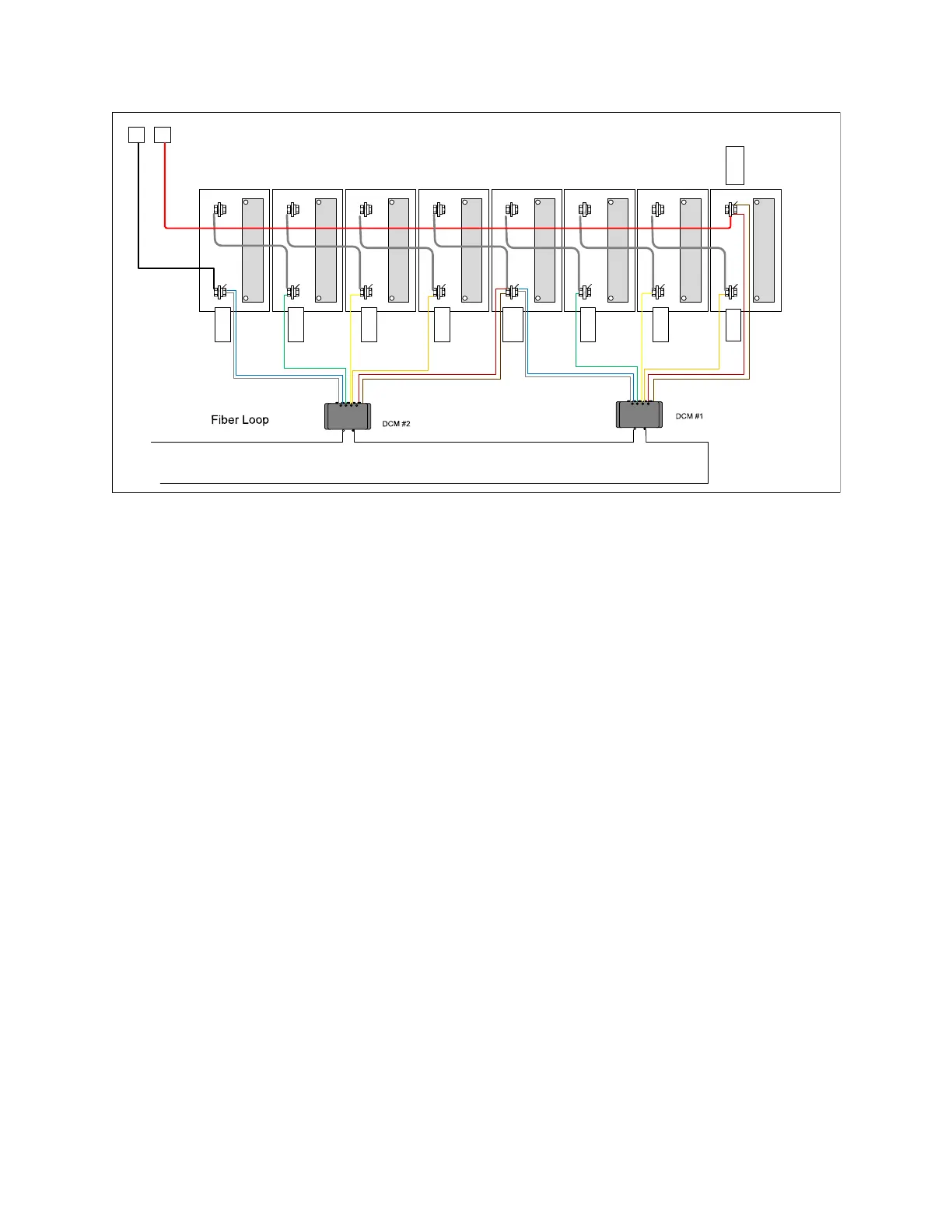

Standard DCM wiring to a string that is divisible by four
VRLA installation on four-jar trays
In a four-jar (or mono-bloc) per tray configuration, one DCM per tray should be used. If possible,
disconnect battery trays to a safe voltage. Identify the most positive and most negative ends of the tray
and ensure that they are double-tabbed. The remaining three negative posts should have a single tab
washer fitted.
