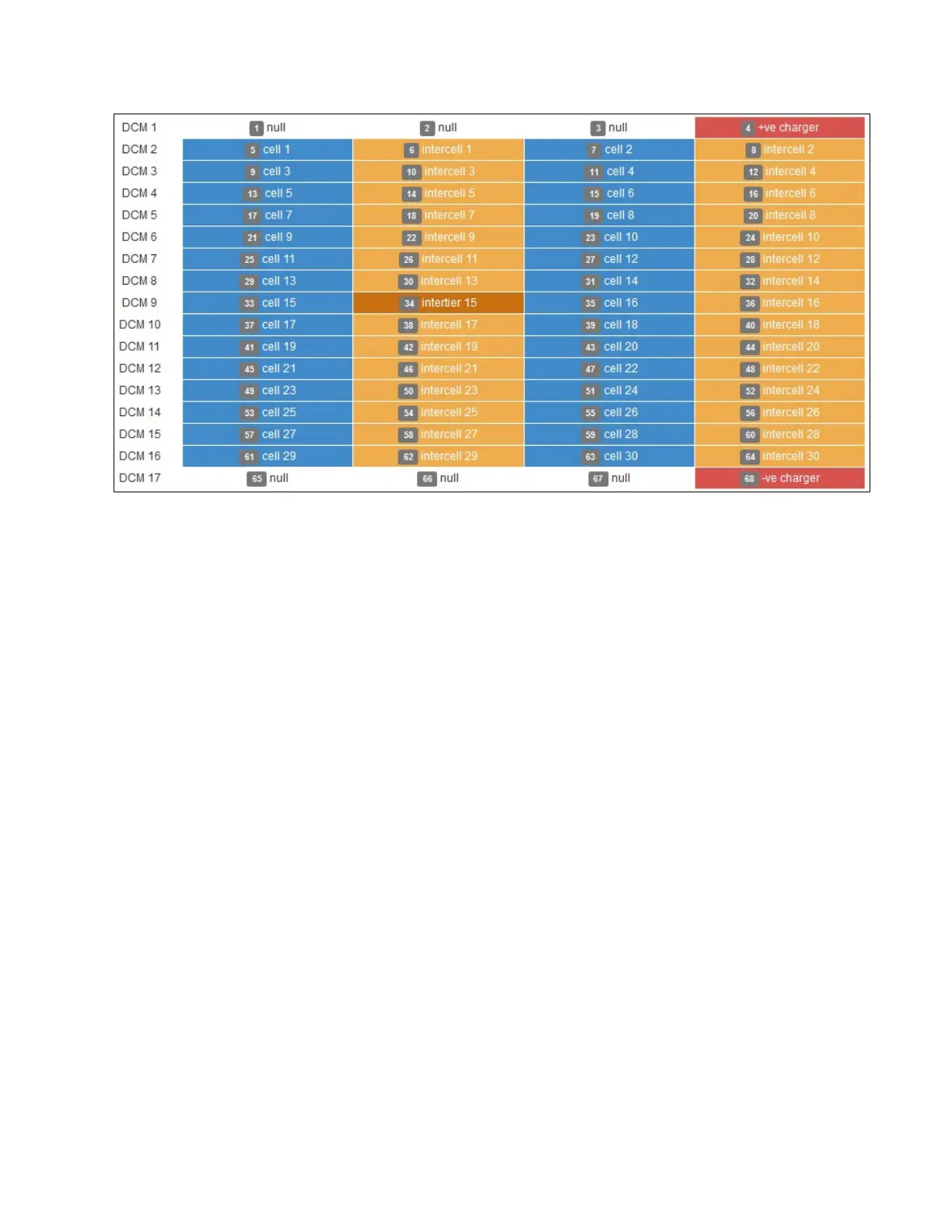

In Frontier, each string has its own channel map. If all strings require modifications to the channel map, then the changes must
be made for each string.
Electrolyte Level Detectors (FEDs)
 This string does not have FEDs/This string has FEDs – Select Change to alter FED settings within
this string.
 String coverage – Select Full string if every container within the string has at least one FED unit
attached for active electrolyte level monitoring. Select Partial string if there are containers
within the string that will not have active electrolyte level monitoring. Choose No FEDs if FEDs
are not being utilized.
 Number of FEDs – If Partial string is selected, this specifies the number of FED units to be
assigned to the string.
 FEDs per channel – The number of FED units per cell. For containers with multiple cells with
individual electrolyte, multiple FED units will be needed per container.
Click Apply Changes to save any changes made in this section. The section will then update to indicate:
 if the string does not have FEDs,
 or the number of FEDs and the string coverage.
Temperature Compensation
 This string has temperature compensation – This feature uses a temperature profile to adjust
cell ohmic value readings based on the temperature recorded.
 Battery Profile - The Battery Profile to measure ohmic value temperature compensation can be
selected for the individual string.
 Temperature Source - The temperature compensation source is specified using either an
assigned temp probe or individual cell temperatures.
