Chapter 3 – Illuminator Description
Section 3.10 – Computer Connections
3-53
Section 3.10 Computer Connections

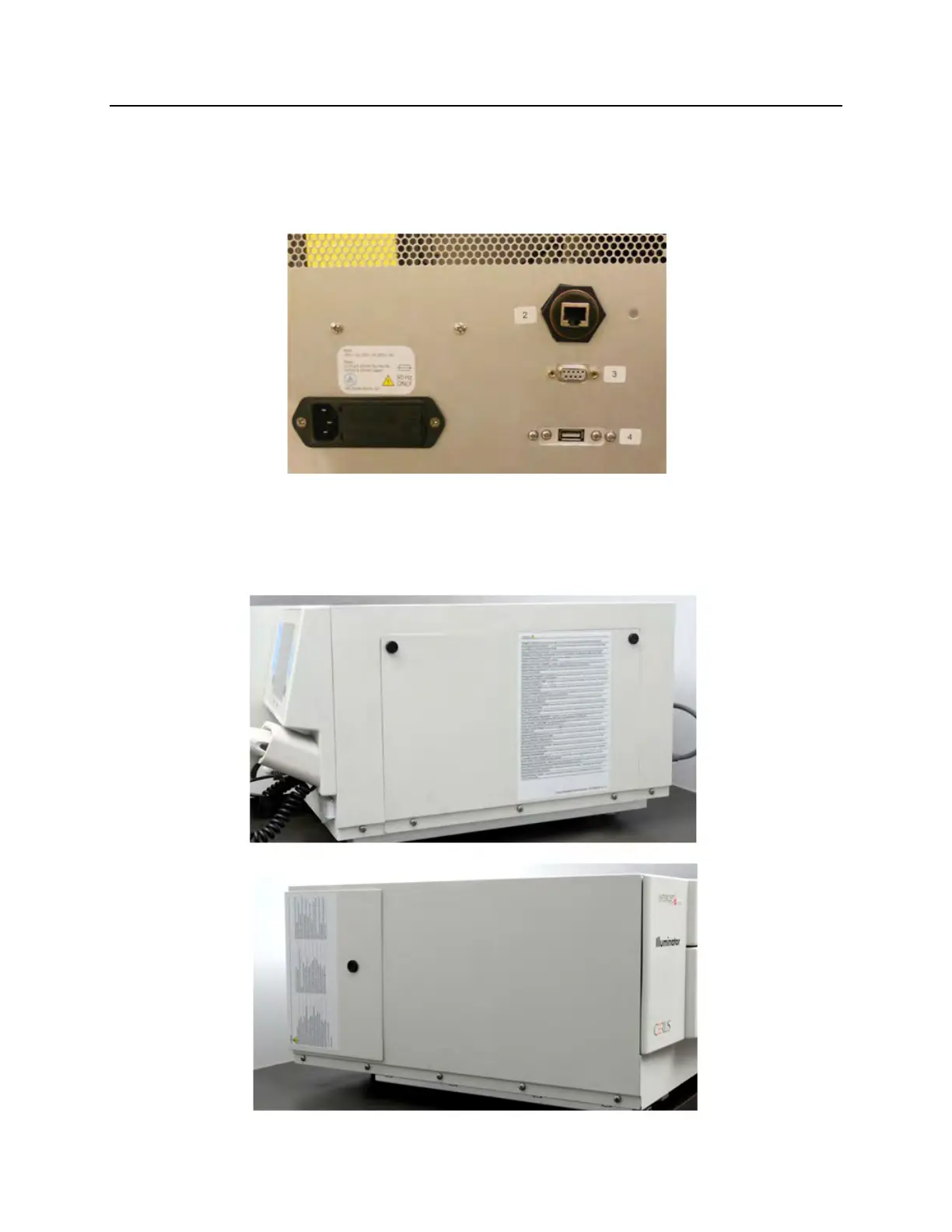

There are three connectors on the rear of the illuminator. Refer to
Section 7.3 for details.
NOTE:
There are panels on each side of the illuminator that have no
customer serviceable parts. Opening either panel of the illuminator
requires special tools and should only be opened by an authorized
service representative.
