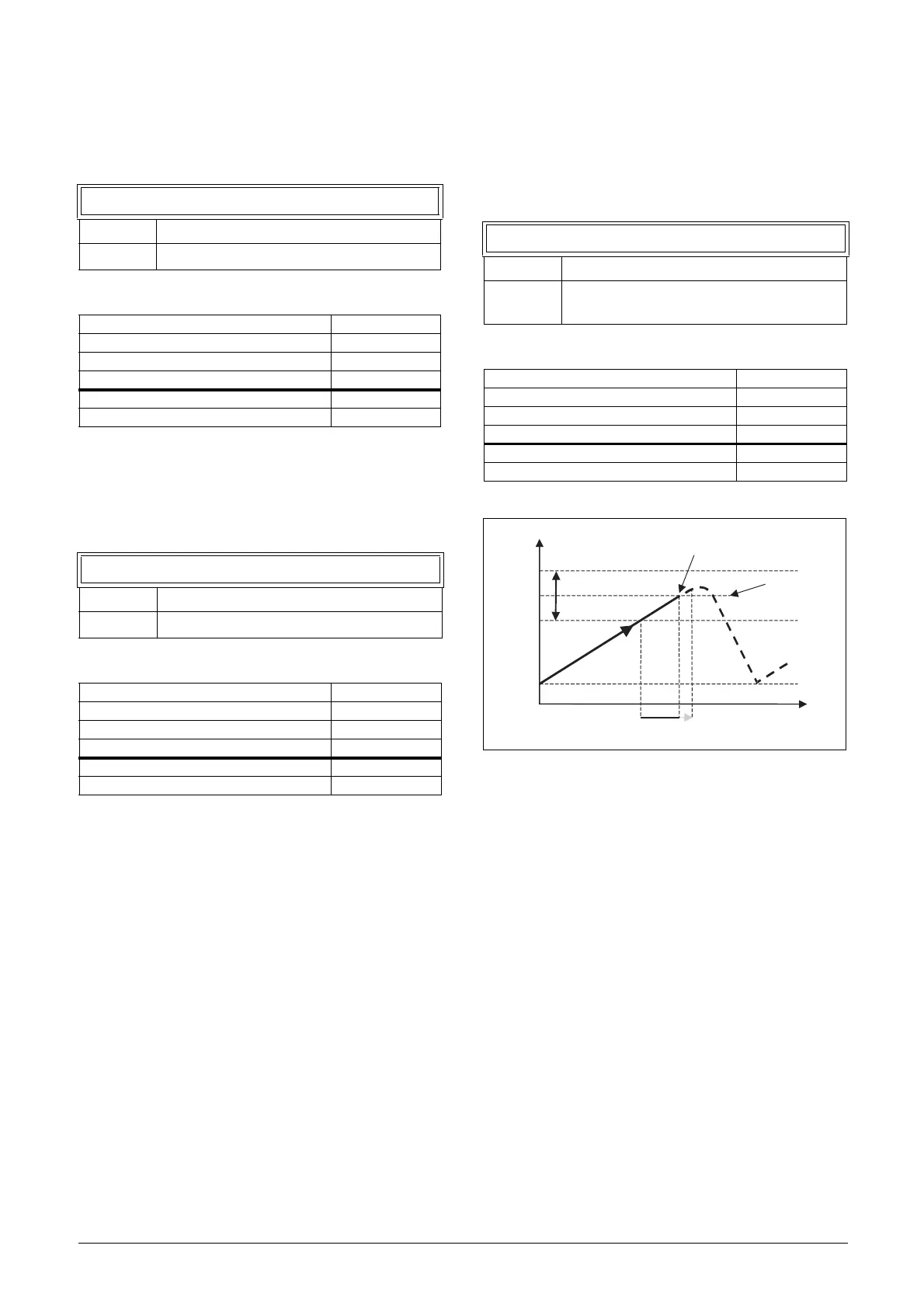

CG Emotron VFX Series User Manual

150 Functional Description CG Drives & Automation, 01-5326-01r5
Start Delay [399]
This delay time must have elapsed before the next pump is
started. A delay time prevents the nervous switching of
pumps.
Communication information
Stop Delay [39A]
This delay time must have elapsed before the 'top' pump is
stopped. A delay time prevents the nervous switching of
pumps.
Communication information
Upper Band Limit [39B]
If the speed of the pump reaches the upper band limit, the
next pump is started immediately without delay. If a start
delay is used this delay will be ignored. Range is between
0%, equalling max speed, and the set percentage for the
“UpperBand [397]”.
Communication information
Fig. 117 Upper band limit
399 Start Delay
Default: 0 s
Range: 0-999 s
Modbus Instance no/DeviceNet no: 43169
Profibus slot/index 169/73
EtherCAT and CANopen index (hex) 4c61
Profinet IO index 19553
Fieldbus format Long, 1=1s
Modbus format EInt
39A Stop Delay
Default: 0 s
Range: 0-999 s
Modbus Instance no/DeviceNet no: 43170
Profibus slot/index 169/74
EtherCAT and CANopen index (hex) 4c62
Profinet IO index 19554
Fieldbus format Long, 1=1 s
Modbus format EInt
39B Upp Band Lim
Default: 0%
Range:
0 to Upper Band level. 0% (=max speed)
means that the Limit function is switched off.
Modbus Instance no/DeviceNet no: 43171
Profibus slot/index 169/75
EtherCAT and CANopen index (hex) 4c63
Profinet IO index 19555
Fieldbus format Long, 1=1%
Modbus format EInt
(NG_50-PC-14_2)
Speed
Max
Min
Upper band
Start Delay [399]
Upper band
limit [39B]
next pump starts
immediately
Flow/Pressure
