A1: Execution steps:
(1) When all PROG #1 SEQUENCES are done, skip PROG #2 and jump to PROG
#3
(2) When all PROG #3 SEQUENCES are done, jump to PROG #4
(3) When all PROG #4 SEQUENCES are done, skip PROG #5 and jump to PROG
#6
(4) End
PROG #1
PROG CHAIN NO = 3
SEQ 1_1 ~ SEQ 1_10
PROG #2
PROG CHAIN NO = 0
SEQ 2_1 ~ SEQ 2_10
PROG #3
PROG CHAIN NO = 4
SEQ 3_1 ~ SEQ 3_10
PROG #4
PROG CHAIN NO = 6
SEQ 4_1 ~ SEQ 4_10
PROG #5
PROG CHAIN NO = 0
SEQ 5_1 ~ SEQ 5_10
PROG #6
PROG CHAIN NO = 0
SEQ 6_1 ~ SEQ 6_10
PROG #7
PROG CHAIN NO = 0
SEQ 7_1 ~ SEQ 7_10
PROG #8
PROG CHAIN NO = 0
SEQ 8_1 ~ SEQ 8_10
PROG #9
PROG CHAIN NO = 0
SEQ 9_1 ~ SEQ 9_10
PROG #10
PROG CHAIN NO = 0
SEQ 10_1 ~ SEQ 10_10
END
START

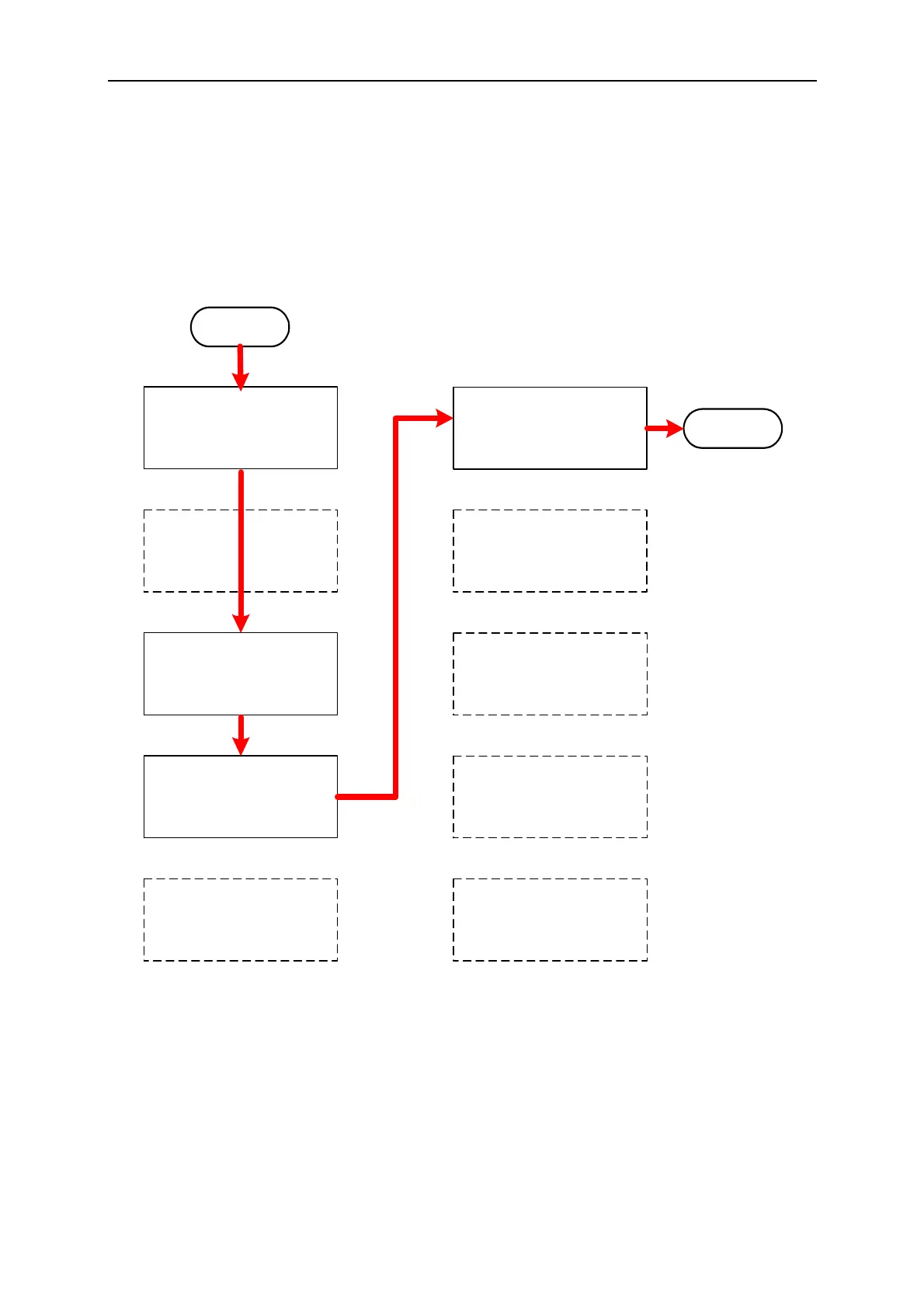

Figure 4-4
Ex. 2: Use a PROGRAM to form an infinite loop
Set PROG #1 to PROG CHAIN NO.=1, RUN COUNT=1
The program execution flow is listed as Figure 4-5 shows.
A2: Execution steps:
(1) When all PROG #1 SEQUENCES are done, jump to PROG #1.
(2) Rerun step (1).
(3) Form an infinite loop.
4-4
