Cisco 2100 Series Configuration Guide

8-15
Cisco Wireless LAN Controller Configuration Guide
OL-17037-01
Chapter 8 Controlling Mesh Access Points
Adding Mesh Access Points to the Mesh Network

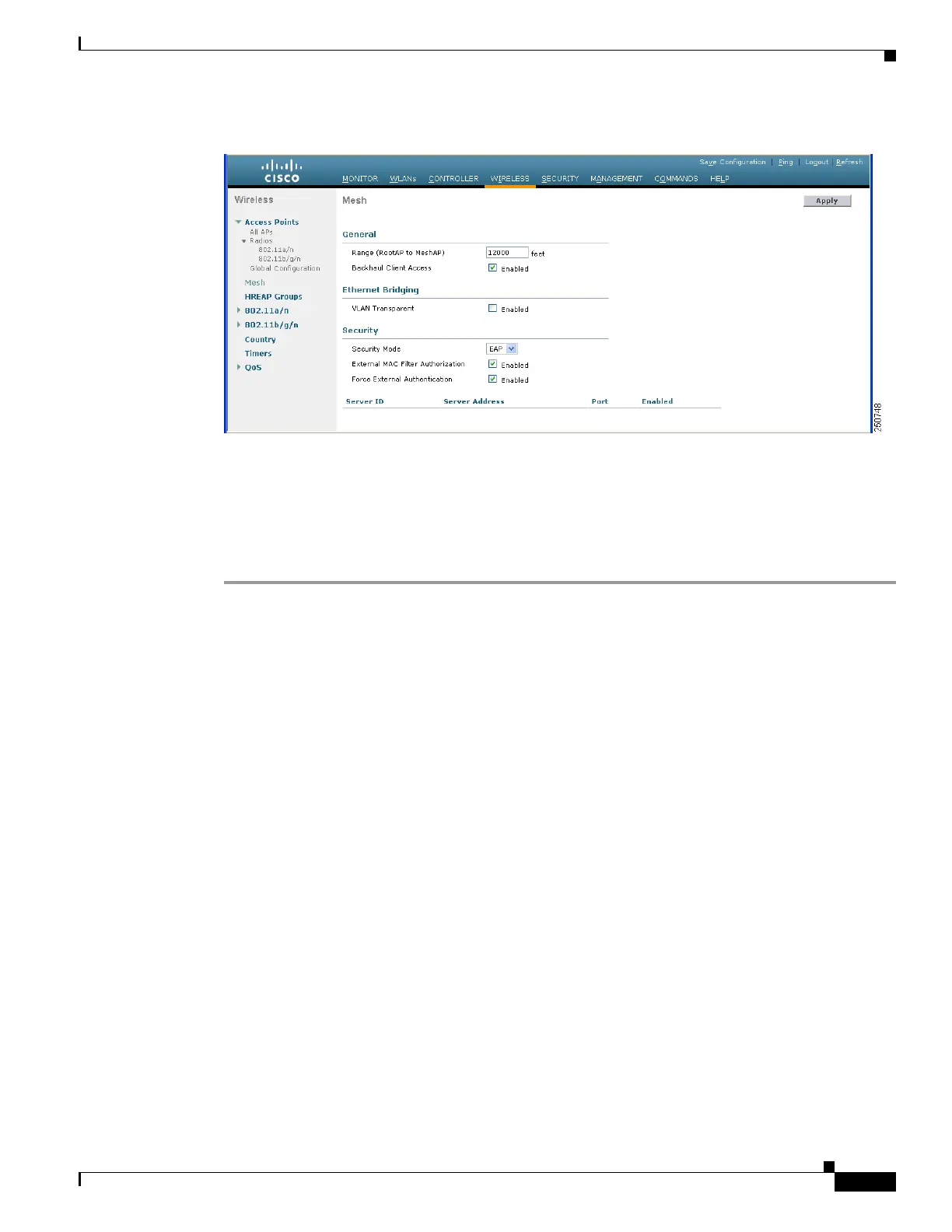

Figure 8-9 Mesh Page
Step 2
Choose EAP from the Security Mode drop-down box.
Step 3 Check the Enabled check boxes for the External MAC Filter Authorization and Force External
Authentication options.
Step 4 Click Apply to commit your changes.
Step 5 Click Save Configuration to save your changes.
Using the CLI to Enable External Authentication of Mesh Access Points
To enable external authentication for mesh access points using the CLI, enter the following commands:
config mesh security eap
config macfilter mac-delimiter colon
config mesh security rad-mac-filter enable
config mesh radius-server index enable
config mesh security force-ext-auth enable (Optional)
Using the CLI to View Security Statistics
To view security statistics for mesh access points using the CLI, enter the following command:
show mesh security-stats Cisco_AP
Command shows packet error statistics and a count of failures, timeouts, and association and
authentication successes as well as reassociations and reauthentications for the specified access point
and its child.

Cisco 2100 Series Specifications

General

Power over Ethernet (PoE)	No
Form Factor	Desktop
Encryption	AES, TKIP
Maximum Access Points	6
Security	WPA, WPA2, 802.1X
Dimensions	1.75 x 8.0 x 8.5 in. (4.4 x 20.3 x 21.6 cm)
