Chapter 3 Installation
Installing the Switch in a Rack
3-20
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-05

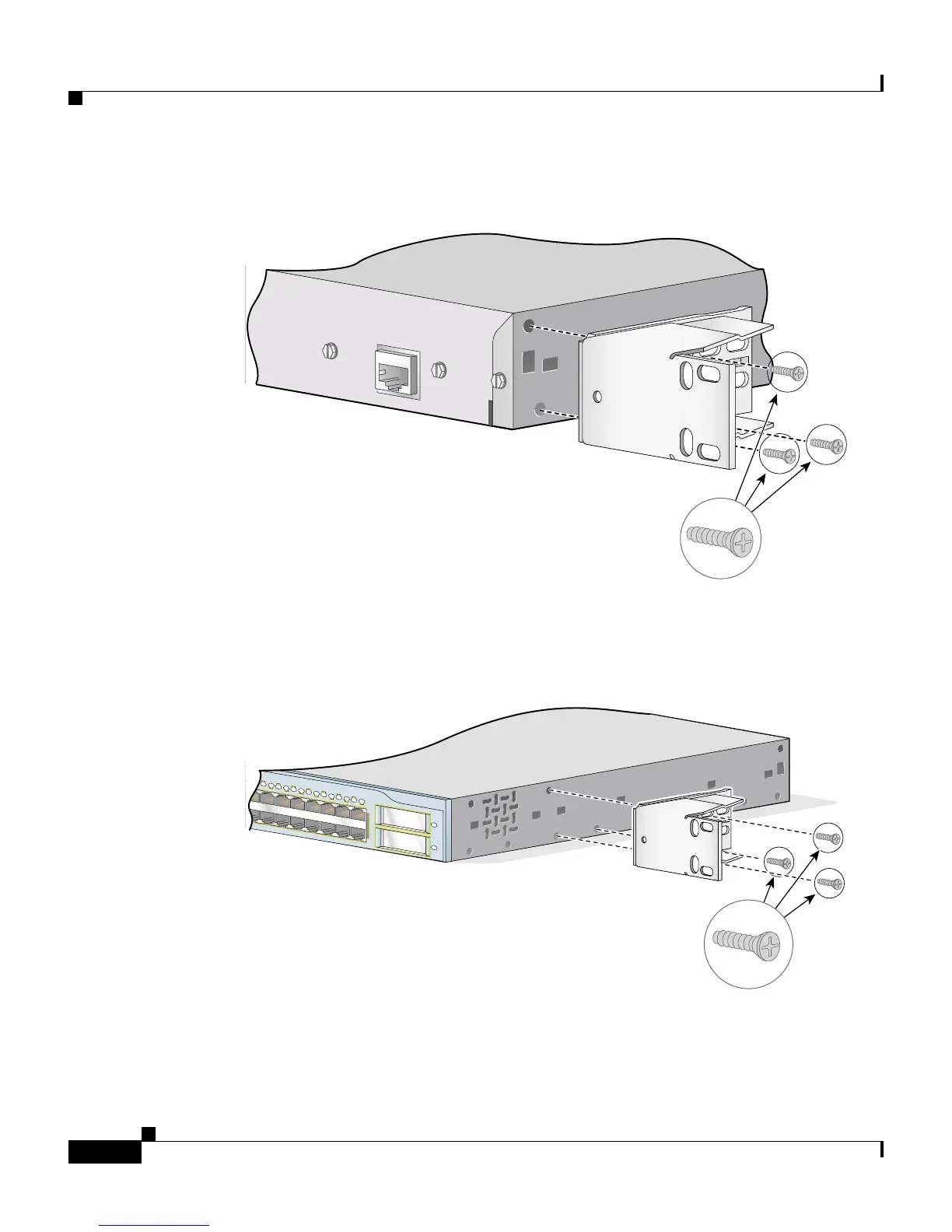

Figure 3-14 Attaching Brackets on the Catalyst 2950G-48-EI Switch in a 24-Inch
Rack (Rear Panel Forward)
Figure 3-15 Attaching Brackets on the Catalyst 2950G-48-EI Switch in a 24-Inch
Telco Rack
