Cisco Catalyst 2950 Hardware Installation Guide

3-47
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-05
Chapter 3 Installation
Connecting to GBIC Module Ports
Connecting to 1000BASE-T GBIC Module Ports
After installing the 1000BASE-T GBIC in the GBIC module slot, follow these
steps:
Caution To prevent ESD damage, follow your normal board and component handling
procedures.
Step 1 When connecting to servers, workstations, and routers, insert a four twisted-pair,
straight-through cable in the RJ-45 connector. When connecting to switches or
repeaters, insert a four twisted-pair, crossover cable (see Figure 3-39).
Note When connecting to a 1000BASE-T device, be sure to use a four twisted-pair,
Category 5 cable.

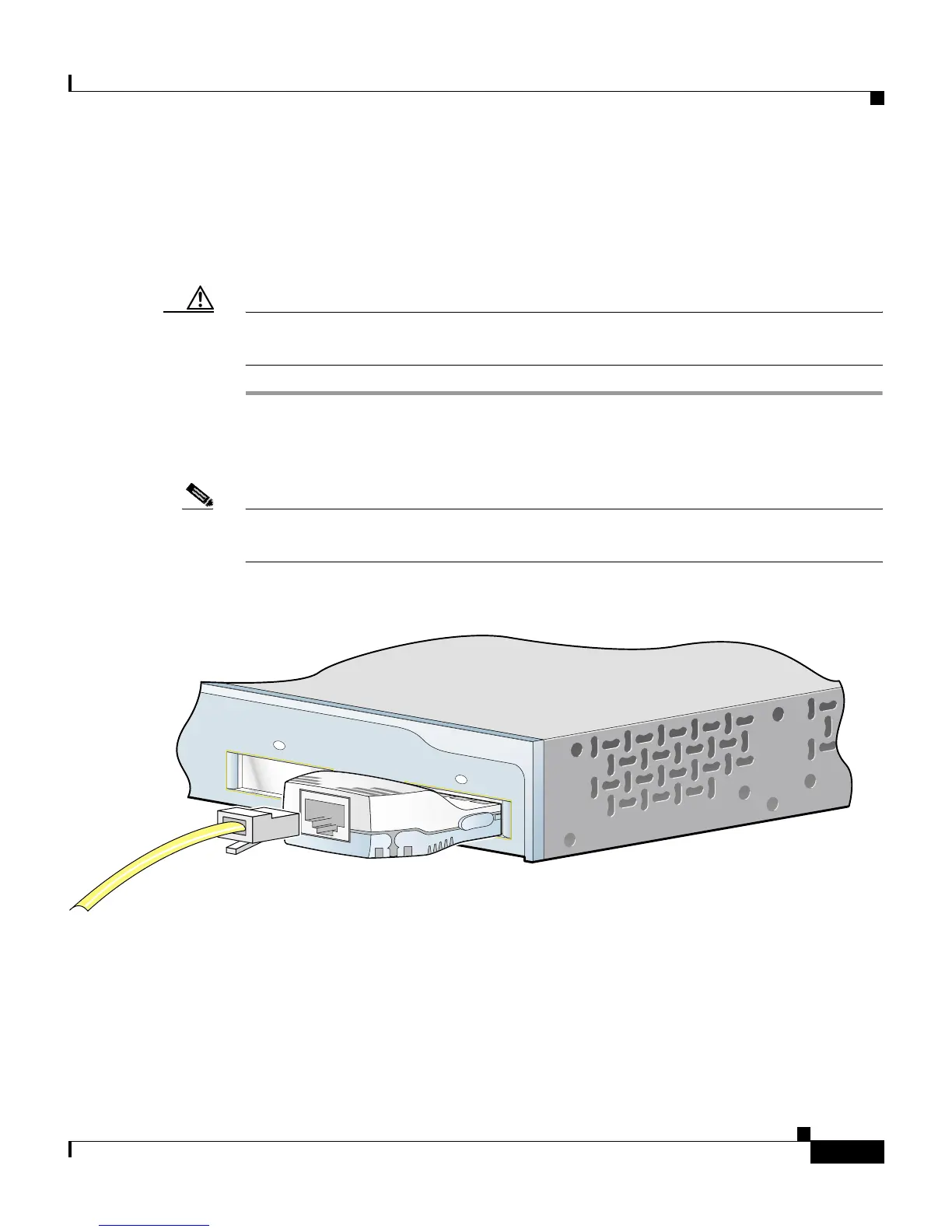

Figure 3-39 Connecting to a 1000BASE-T GBIC Port
Catalyst 2950
S
E
R
IE
S
1
2
65297

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
