Connecting to an LRE Port
3-40
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-05

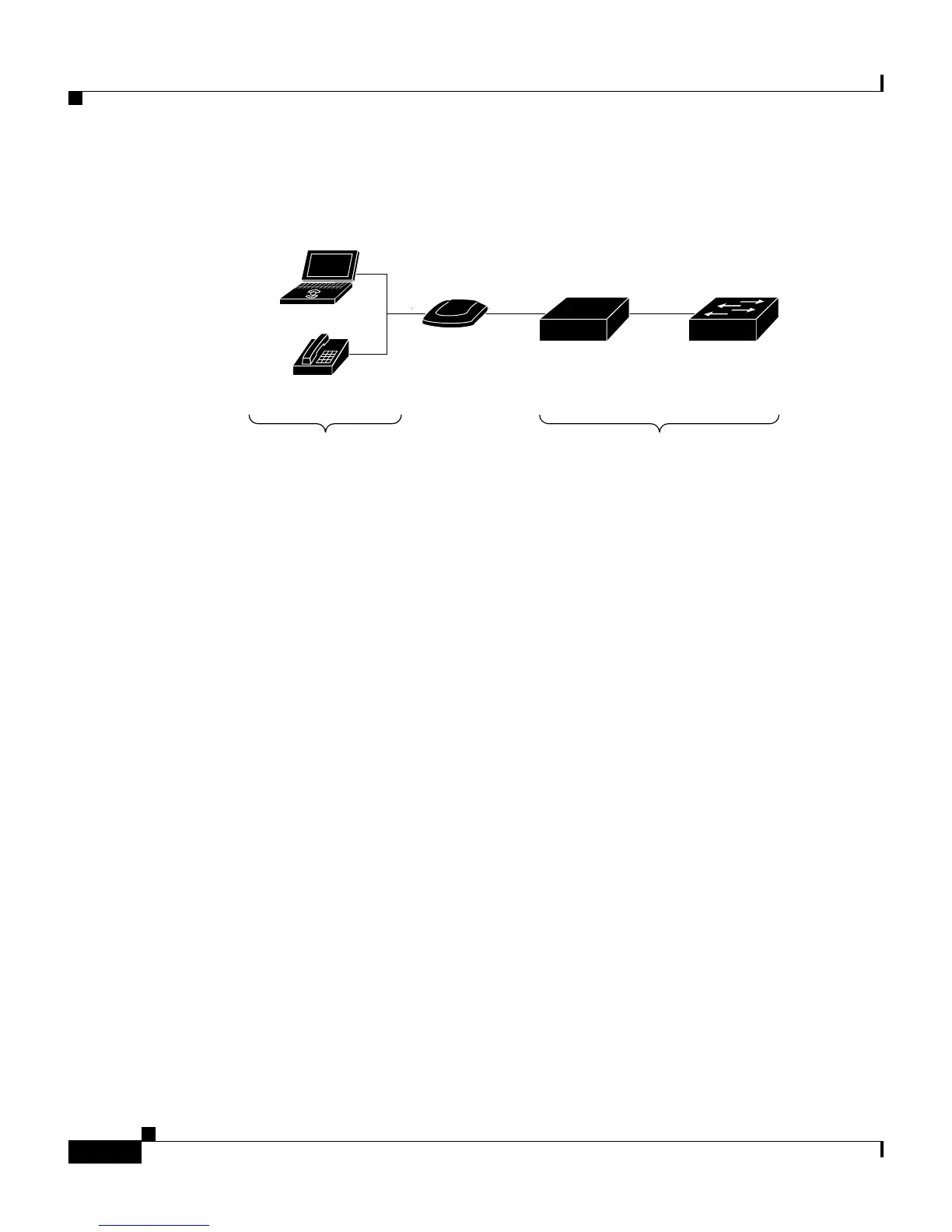

Figure 3-35 Limitations Using a Cisco LRE 48 POTS Splitter with a
Catalyst 2950ST-24 LRE 997 Switch and a Cisco 576 LRE 997 CPE
Required Cables
Connecting the LRE port to a patch panel or a POTS splitter requires a
male-to-male RJ-21 cable, Category 3 or above. You can order RJ-21 cables from
your cable vendor, or you can order these cables from your Cisco sales
representative:
• CAB-5-M120M120-5= (Category 5 cable with 90-degree, male-to-male
RJ-21 connectors)
• CAB-5-M180M120-5= (Category 5 cable with 120-degree, male-to-male
RJ-21 connectors)
The screws that you need to secure the cable to the switch are shipped with the
cable. Contact your Cisco sales representative for more information.
Cisco 576 LRE
997 CPE
Cisco LRE 48
POTS splitter
Catalyst 2950ST-24
LRE 997 switch
Traffic from 0 to 700 kHz
89860
POTS Telephone
PC
Traffic from
0 to 120 kHz

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
