Rollover Cable and Adapter Pinouts
This section describes how to identify a rollover cable and also describes the
adapter pinouts.
Identifying a Rollover Cable
You can identify a rollover cable by comparing the two modular cable ends. Hold
the cable ends side-by-side, with the tab at the back. The wire connected to the
pin on the outside of the left plug should be the same color as the wire connected
to the pin on the outside of the right plug. (See Figure B-14.)

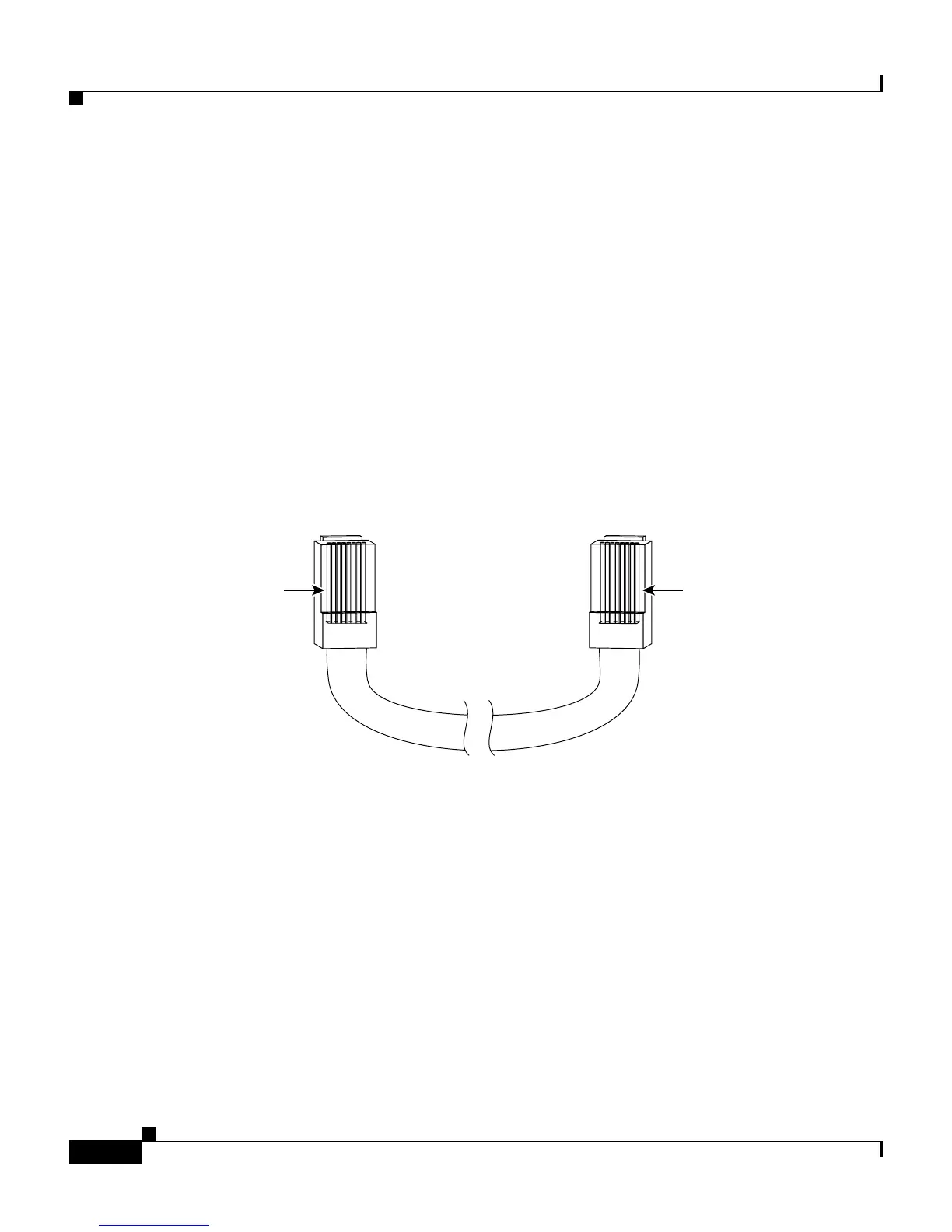

Figure B-14 Identifying a Rollover Cable
Pin 1
H10632
Pin 8
Pin 1 on one connector and
pin 8 on the other connector
should be the same color.

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
