Chapter 3 Installation
Installing and Removing SFP Modules

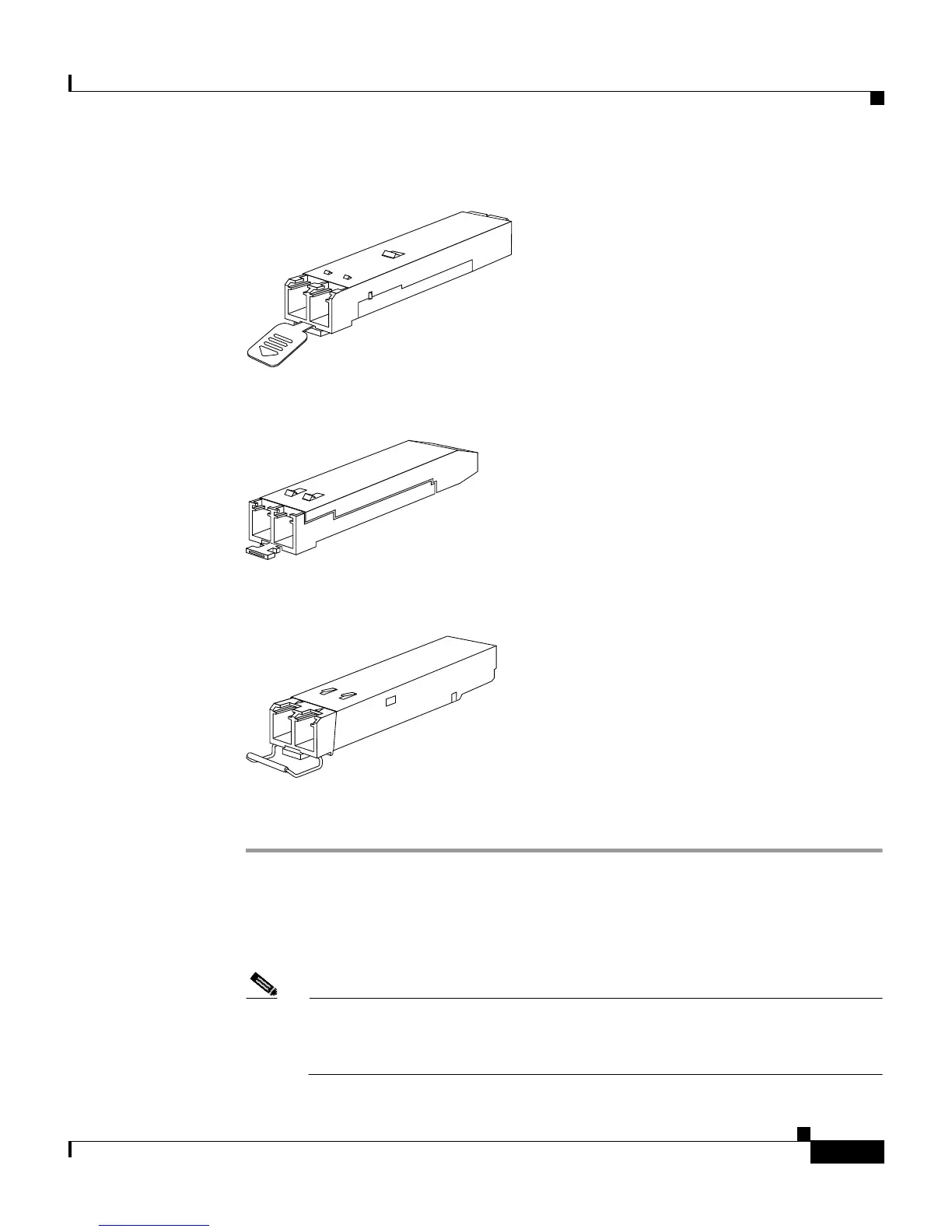

Figure 3-24 SFP Module with a Mylar Tab Latch
Figure 3-25 SFP Module with an Actuator Button Latch
Figure 3-26 SFP Module with a Bale-Clasp Latch
To insert an SFP module into the SFP module slot, follow these steps:
Step 1 Attach an ESD-preventive wrist strap to your wrist and to a bare metal surface on
the chassis.
Step 2 Find the send (TX) and receive (RX) markings that identify the top side of the SFP
module.
Note On some SFP modules, the send and receive (TX and RX) markings might
be replaced by arrows that show the direction of the connection, either
send or receive (TX or RX).
63065
63066
63067

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
