Cisco Catalyst 2950 Hardware Installation Guide

Chapter 3 Installation
Connecting to 10/100 and 10/100/1000 Ports
3-34
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-05
Follow these steps to connect the switch to 10BASE-T, 100BASE-TX, or
1000BASE-T devices:
Caution To prevent electrostatic-discharge (ESD) damage, follow your normal board and
component handling procedures.
Step 1 When connecting to servers, workstations, and routers, insert a twisted-pair
straight-through cable in a front-panel RJ-45 connector, as shown in Figure 3-31,
Figure 3-32, and Figure 3-33. When connecting to switches or repeaters, insert a
twisted-pair crossover cable. (See the “Cable and Adapter Specifications” section
on page B-8 for cable-pinout descriptions.)
Note When connecting to 1000BASE-T devices, be sure to use a four twisted-pair,
Category 5 cable.

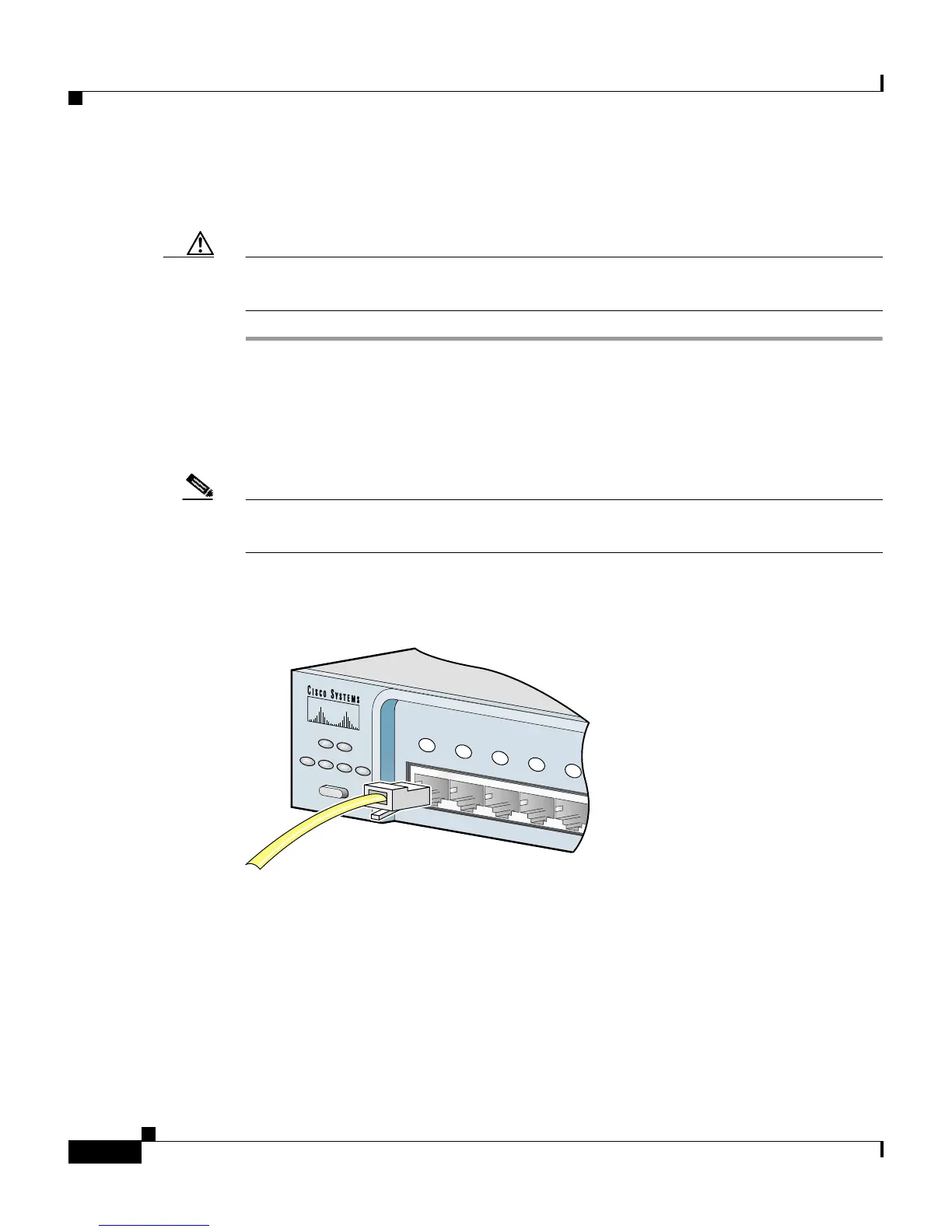

Figure 3-31 Connecting to a Port on Catalyst 2950-12, 2950-24, 2950C-24,
2950SX-24, and 2950T-24 Switches
SYST RPS
DUPLX
MODE
SPEED
UTIL
S TAT
45576
1x
2x
3x
4x
5x

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
