Cisco Catalyst 2950 Hardware Installation Guide

B-9
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-05
Appendix B Connectors and Cables
Cable and Adapter Specifications

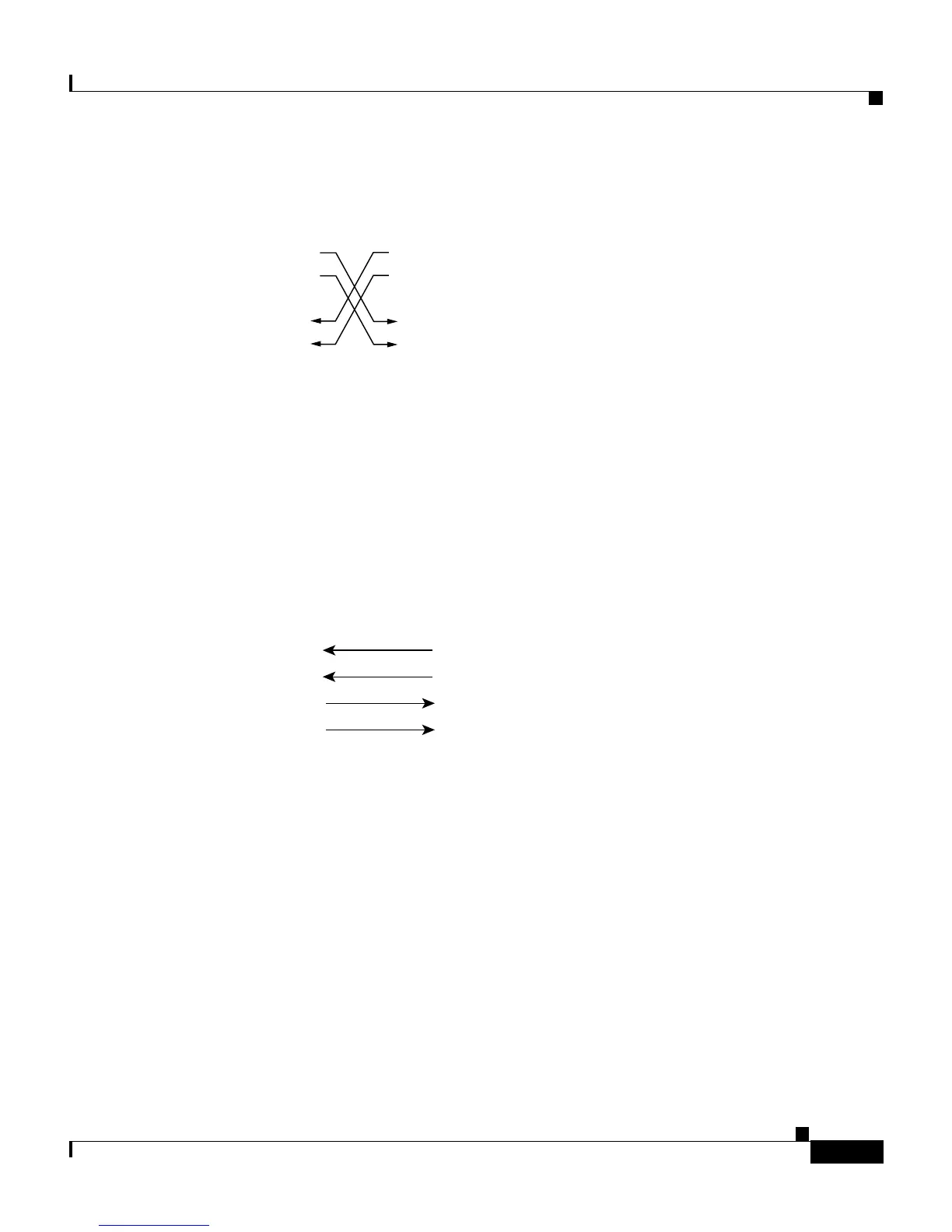

Figure B-9 Two Twisted-Pair Crossover Cable Schematic for 10/100 Ports
Four Twisted-Pair Cable Pinouts for 10/100 Ports
Figure B-10 and Figure B-11 show the schematics of four twisted-pair cables for
10/100 ports.
Figure B-10 Four Twisted-Pair Straight-Through Cable Schematic for
10/100 Ports
Switch
3 TD+
6 TD–
1 RD+
2 RD–
Switch
3 TD+
6 TD–
1 RD+
2 RD–
H5579
1 RD+
2 RD-
3TD+
6TD-
1TD+
Switch Switch
2TD-
3 RD+
6 RD-
4NC
5NC
7NC
8NC
4NC
5NC
7NC
8NC
65271

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
