Chapter 2 Overview
Front-Panel Description

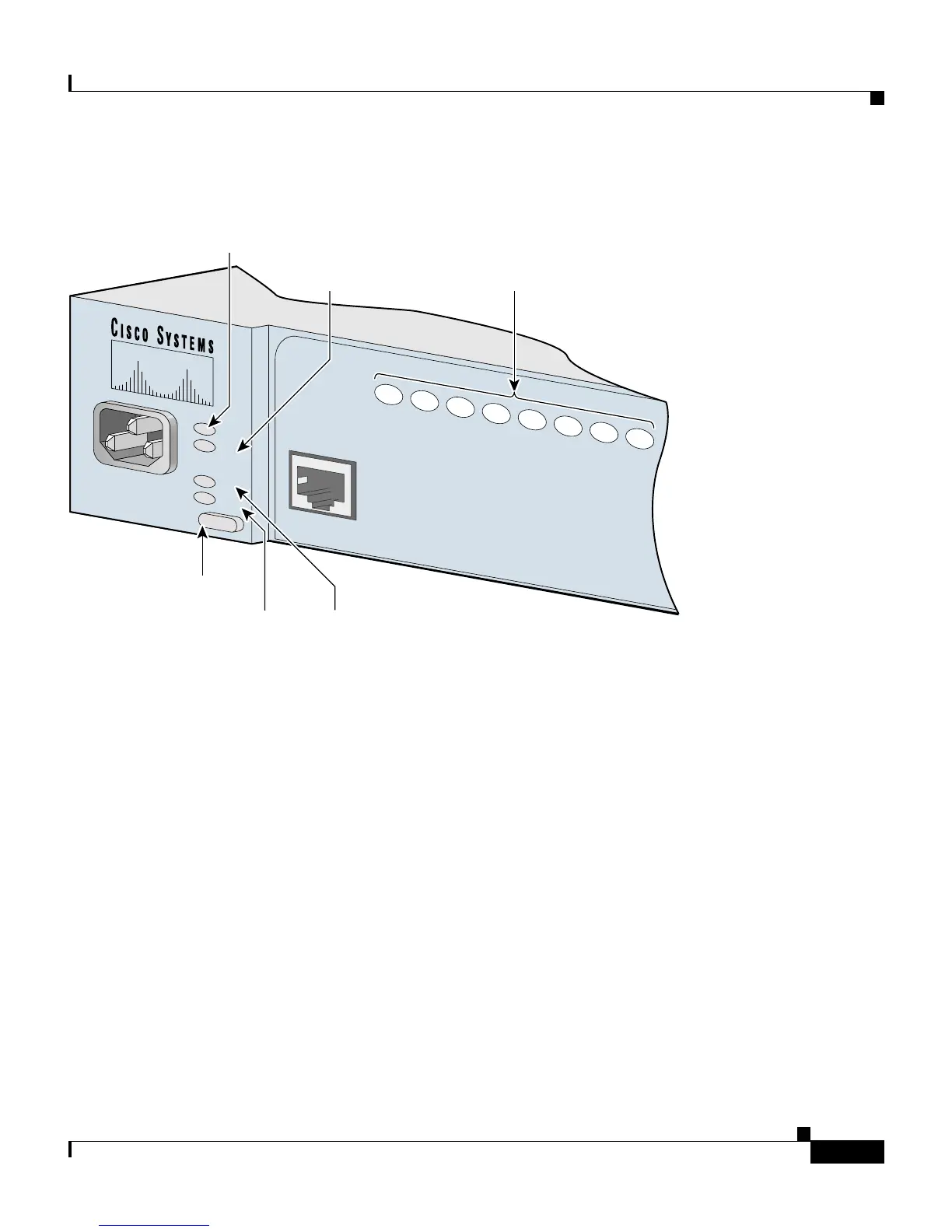

Figure 2-16 LEDs on Catalyst 2950ST-8 LRE and 2950ST-24 LRE Switches
SYST
RPS
S TAT
SPEED
MODE
CONSOLE
RATING
100-127/200-240V~
1.0A/0.5A 50-60HZ
1
2
3
4
5
6
7
8
81187
Mode button
Speed
LED
STAT
LED
System
LED
Port status
LEDs
Redundant
power
system
LED
