Cisco Catalyst 2950 Hardware Installation Guide

Chapter 3 Installation
Installing the Switch in a Rack
3-12
Catalyst 2950 Desktop Switch Hardware Installation Guide
78-11157-05
Figure 3-1 to Figure 3-15 show how to attach a bracket to one side of the switch.
Follow the same steps to attach the second bracket to the opposite side of the
switch.

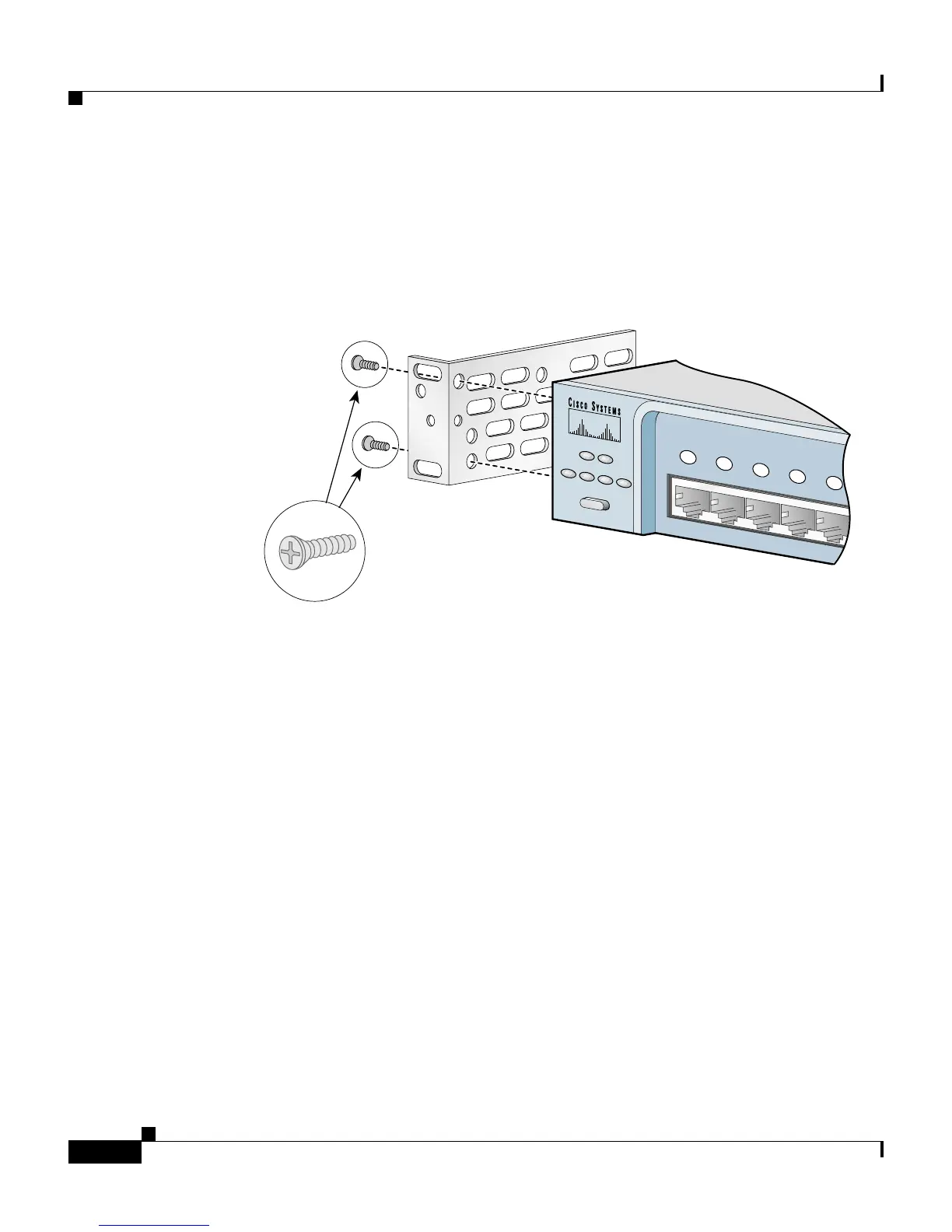

Figure 3-1 Attaching Brackets on the Switch in a 19-Inch Rack (Front Panel
Forward)
SYST RPS
DUPLX
MODE
SPEED
UTIL
S TAT
1x 2x 3x
4x 5x
45580
Number-8
Phillips flat-head
screws

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
