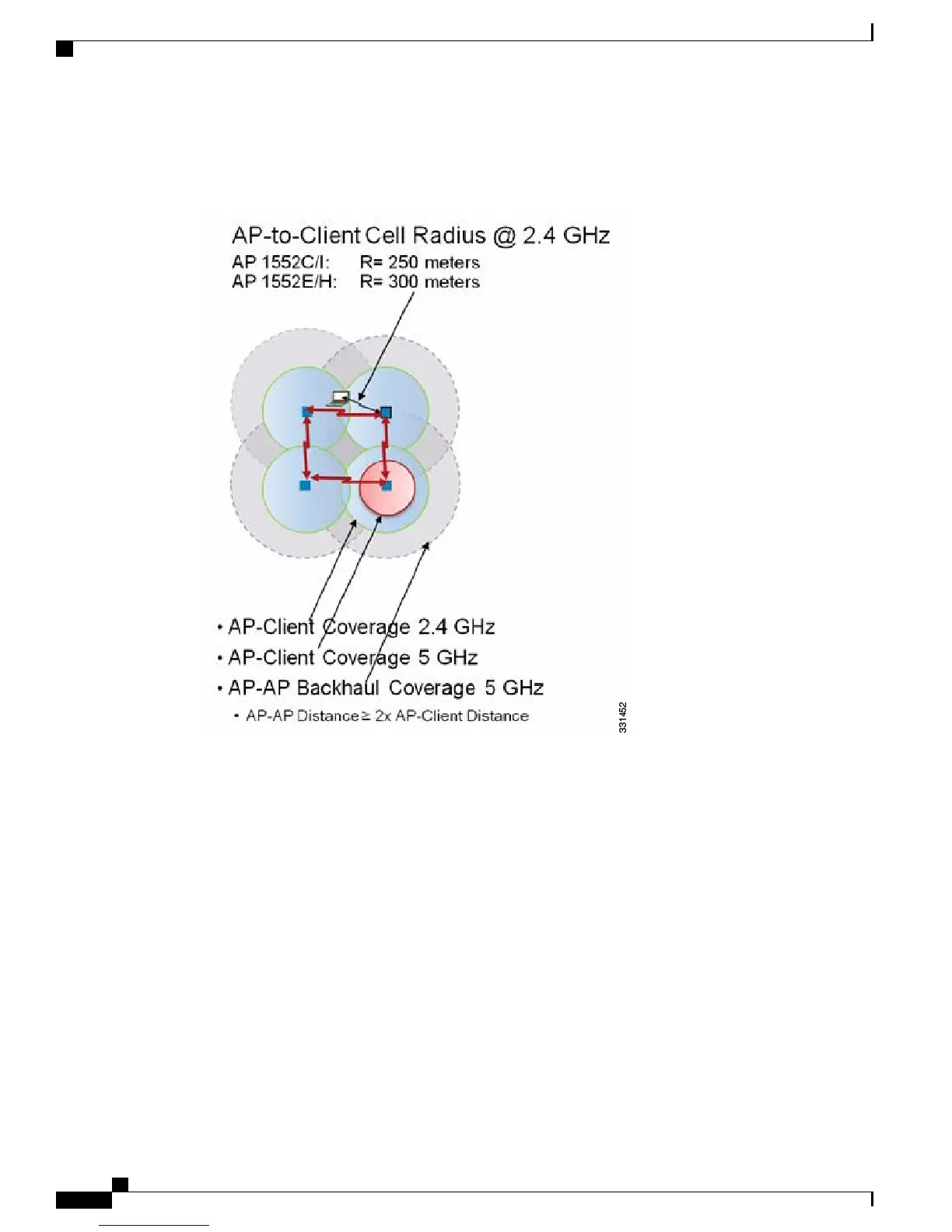

Figure 33: AP-to-Client Cell Radius at 2.4 GHz
The following assumptions are made:
Height: APs are at 33 feet (10 meters); Client at 3.3 feet (1 meter)
Throughput greater than 1 Mbps
Decreasing AP-to-AP distance improves coverage
Near LoS. For Less LoS scenarios, you must reduce the distance assumptions
Flat Terrain Environment
AP Densities result as follows:
AP1552C and AP1552I: 14 AP/sq. mile = 5.3 AP/sq. km
AP1552E and AP1552H: 9 AP/sq. mile = 3.5 AP/sq. km
With these recommendations, the likelihood of getting healthy cells is more.
Cisco Mesh Access Points, Design and Deployment Guide, Release 7.3
80 OL-27593-01
Site Preparation and Planning
Cell Planning and Distance
