Configuring VPN
Configuring an IPsec VPN Tunnel for Remote Access with a VPN Client
Cisco SA500 Series Security Appliances Administration Guide 140
7
With the Wizard’s default settings, you will need to add VPN users through the
IPsec VPN users page after you complete the Wizard. Alternatively, you can edit
the IKE policy to allow Extended Authentication (XAUTH) from user records stored
on an external authentication server such as a RADIUS server.
For detailed information about configuring an IPsec tunnel between an SA500 and
Cisco VPN Client, see the Application Note located under Technical
Documentation at: www.cisco.com/go/sa500resources.
The Cisco VPN client software is available for download at: www.cisco.com/go/
ciscovpnclient. For Windows, select Cisco VPN Client v5.x. For Mac OS, select
Cisco VPN Client v4.x.
NOTE A 3-year Cisco Small Business Support Service Contract (CON-SBS-SVC2) is
required to download the client software. If you don’t have one, contact your
partner or reseller, or Cisco Support for more information.

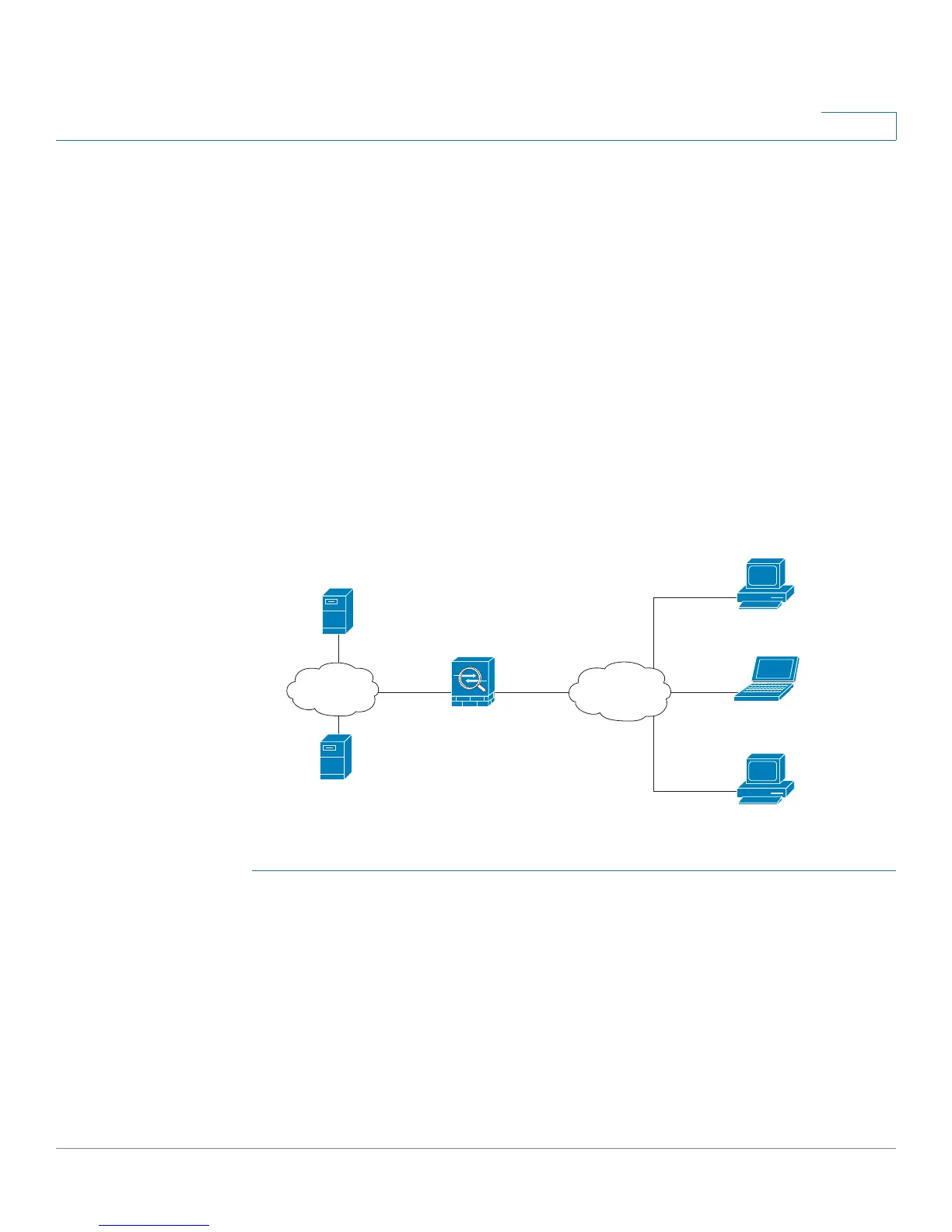

Figure 6 IPsec VPN Remote Access with a VPN Client
STEP 1 Click VPN > IPsec > VPN Wizard, or from the Getting Started (Advanced) page,
under IPsec VPN Remote Access, click VPN Wizard.
The VPN Wizard window opens.
STEP 2 In the About VPN Wizard area, choose Remote Access to allow the security
appliance to be accessed by remote PCs that are running VPN client software.
STEP 3 In the Connection Name and Remote IP Type area, enter the following information:
• What is the new connection name?: Enter a name for the connection. The
name is used for management and identification purposes.
235236
Inside
10.10.10.0
Outside
Security
Appliance
DNS Server
10.10.10.163
WINS Server
10.10.10.133
Internet
Internal
network
Personal Computer
Using VPN Software Client
Personal Computer
Using VPN Software Client
Personal Computer
Using VPN Software Client
To Next Page
