Key to LMC-64 rear panel connectors
Feature
Description
A
LAN port (RJ-45)
B
DECT sync ports:
DECT Ref in (Not used)
DECT Ref out (Not used)
C
E1 / T1 Port 1 - 4 (Not used)
D
E1 / T1 Port 5 - 8(Not used)
Table 10-2: Key to LMC-64 rear panel connectors
Note: The E1/T1 and DECT ports are not used on the IVC-32 interface and should not
be connected.
10.3 LMC-64 interface applications
The LMC-64 interface broadcasts audio level data to Production Maestro Pro clients over
an IP network.
This enables multiple Production Maestro Pro clients across a network to display any
audio level that is being metered.

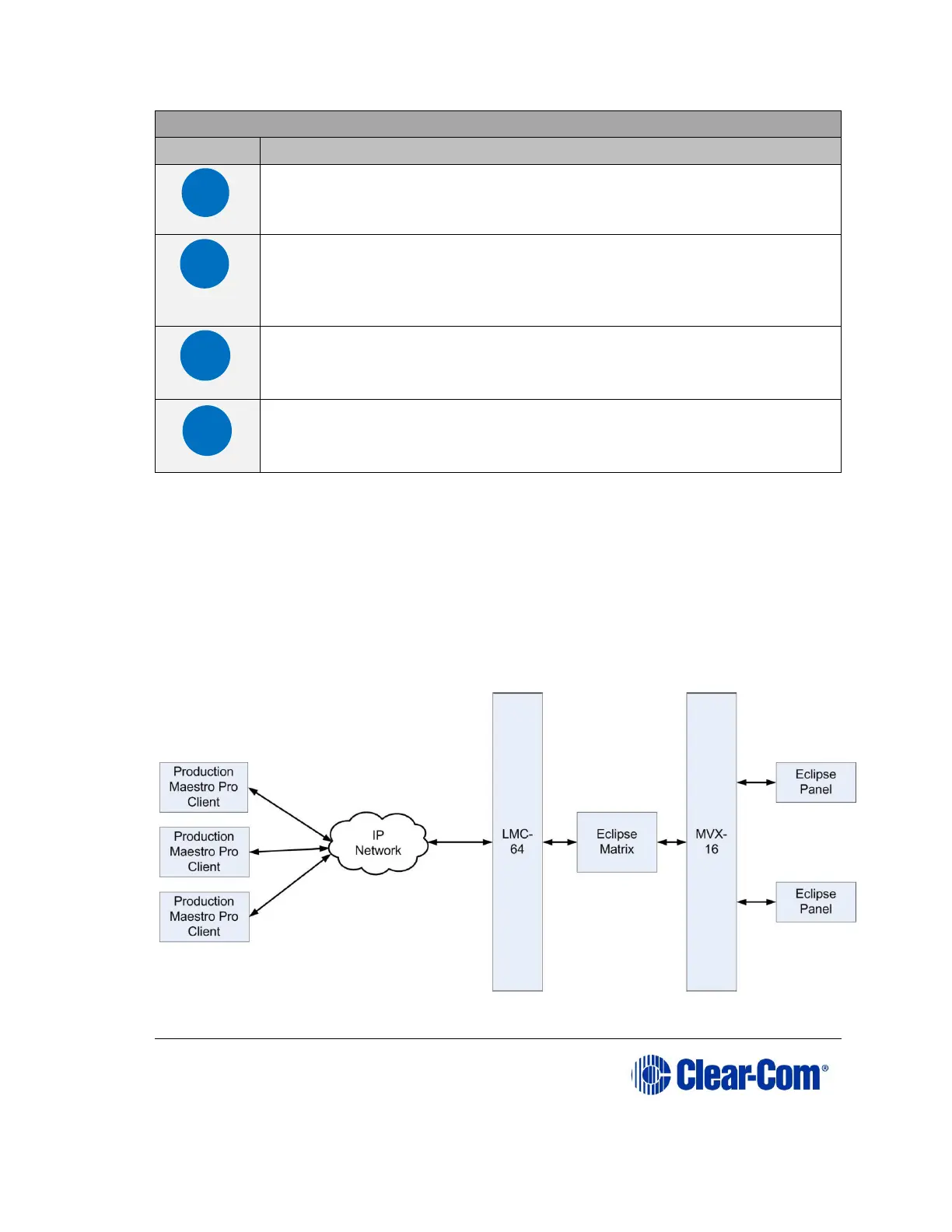

Figure 10-3: Audio level metering with the LMC-64 interface
