12 E-IPA-HX high capacity IP to matrix card
The E-IPA-HX card is a high-capacity internet protocol (IP) audio card. It
provides up to 64 connections.

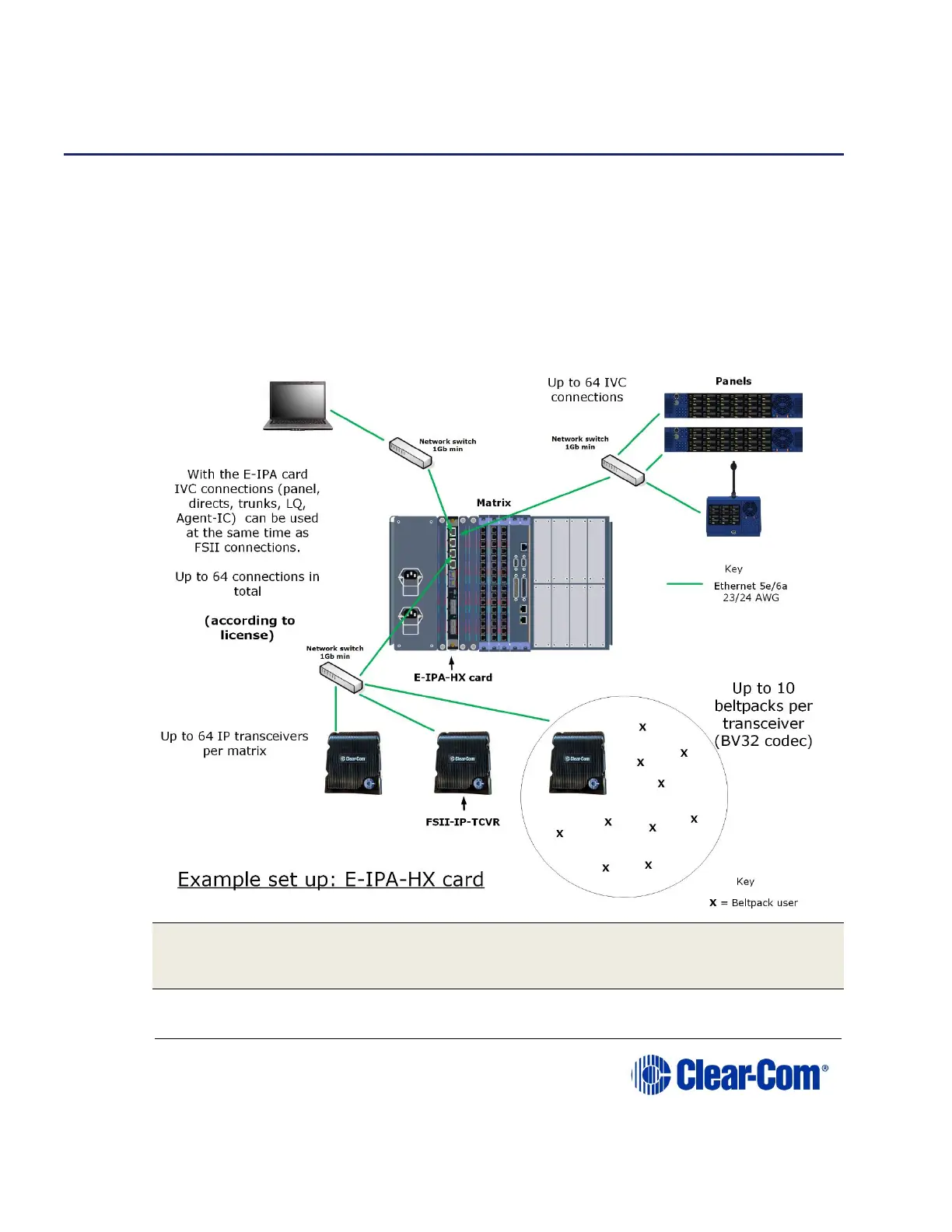

The card offers both IVC ports and Clear-Com FreeSpeak II IP Transceiver
(IPT) connectivity. This can be a combination of up to 64 IP ports or FreeSpeak
II wireless beltpack connections (according to license).
IVC-32 functionality (V-series panels, Directs, LQ, and Agent-IC) runs at the
same time as FSII beltpacks.
The E-IPA-HX card requires EHX software 10.0 and above.
Note: The configuration of IP addresses when using the E-IPA card is
important. See 12.7 Adding an E-IPA-HX card (automatic
discovery)
The E-IPA-HX card is automatically discovered when:
