Clear-Com eclipse HX-Delta User Manual

User Guide | Eclipse HX-Delta
Page 40
4.6.1 4-Pair analog
Four-pair analog wiring is performed with shielded CAT5 RJ-45 cable:
Pair
Description
Pair 1
Transmits analog audio from the matrix to the panel.
Pair 2
Transmits digital data from the panel back to the matrix.
Pair 3
Transmits audio from the panel to the matrix.
Pair 4
Transmits digital data from the matrix back to the panel.
Table 4-2: 4-Pair analog wiring

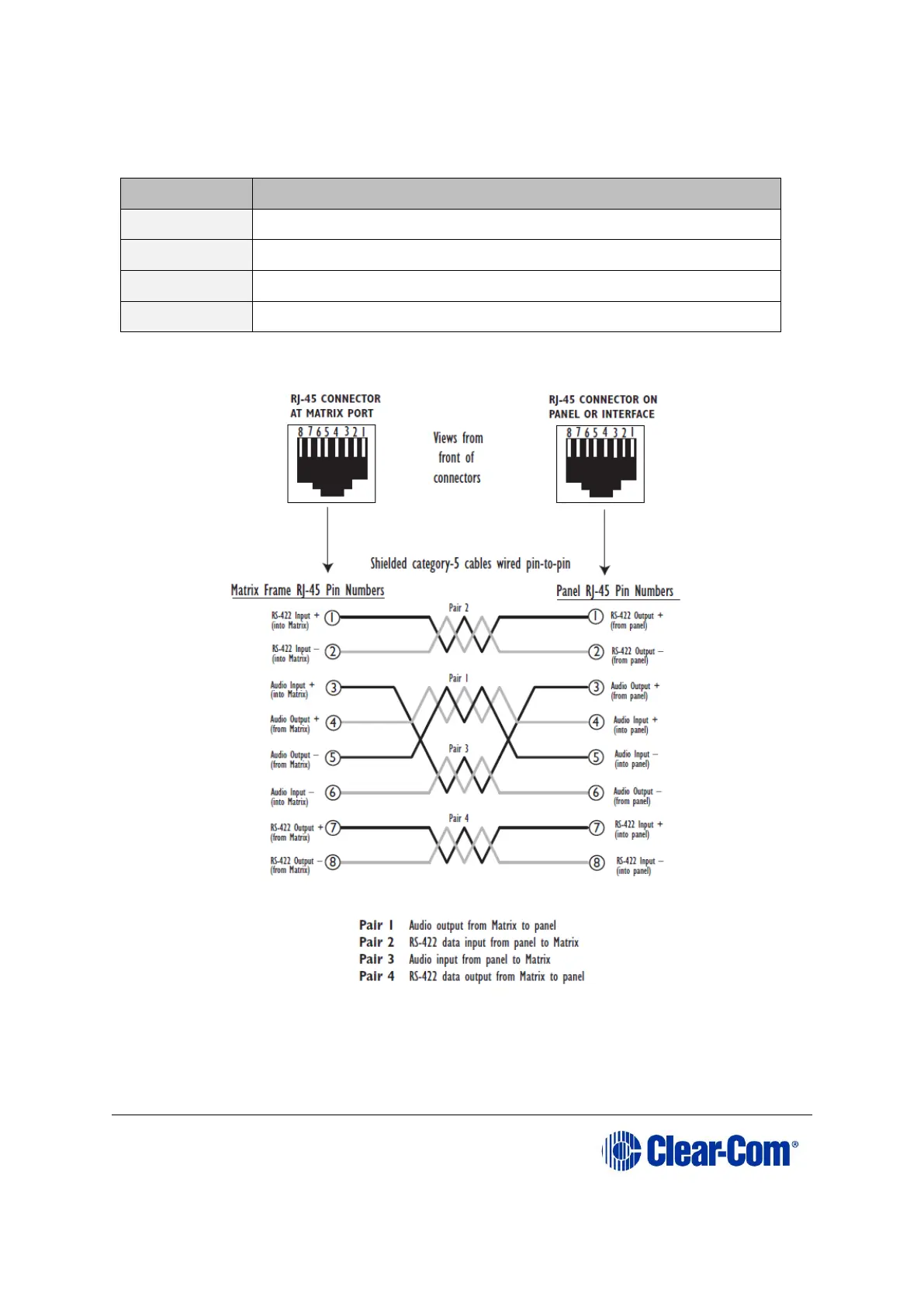

Figure 4-6: Wiring the matrix to an analog panel using RJ-45
4.6.2 Single-pair digital
Single-pair digital wiring is accomplished with double-shielded 24 AWG
conductor CAT-6E enhanced STP cable.
