Page 14
3 interface modules in a three rack
unit (3RU) frame.
For more information, see this
guide.

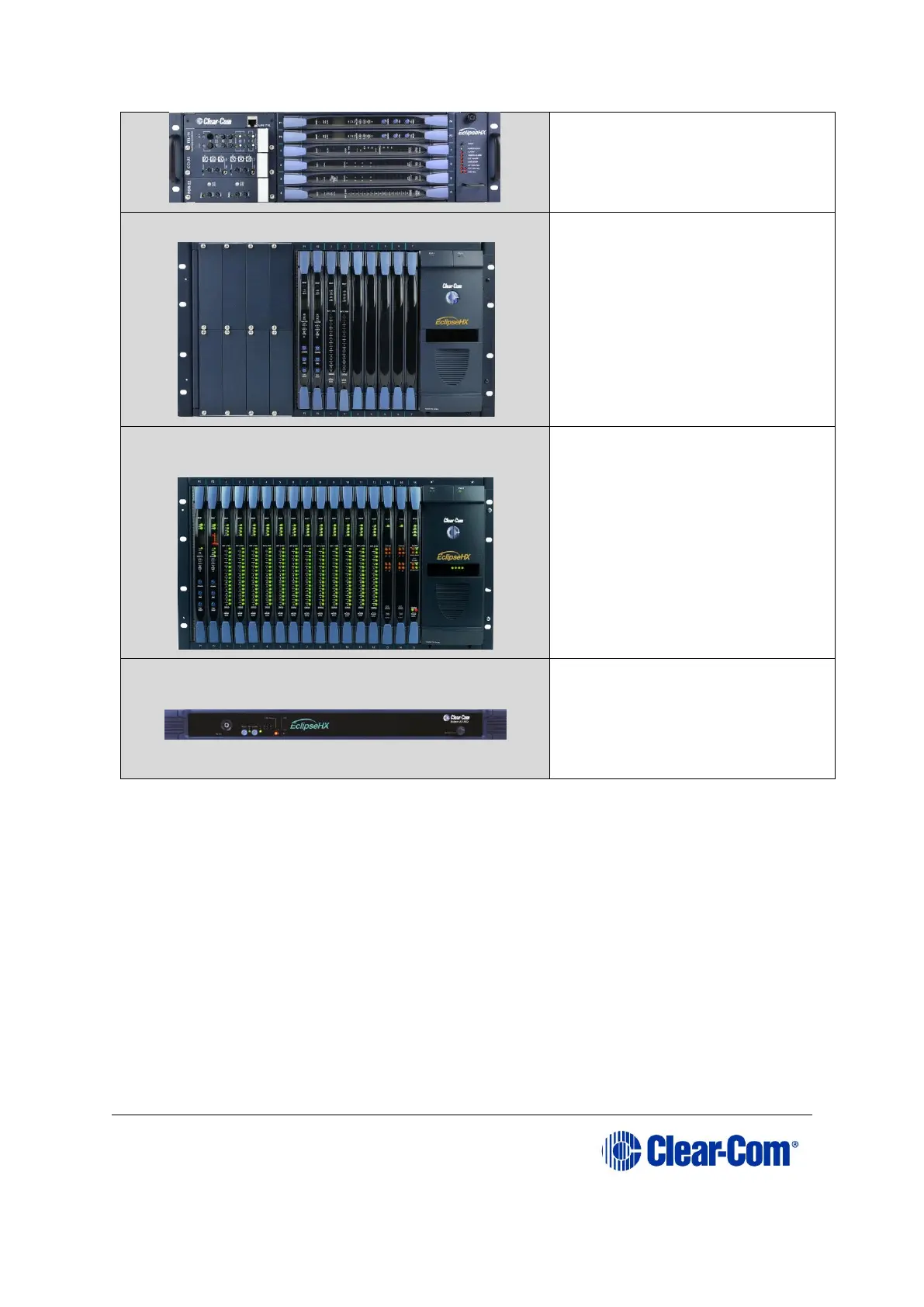

Eclipse HX-Median
The Eclipse HX-Median has slots
for
2 CPU cards, 7 interface cards,
and 8 interface modules in a six
rack unit (6RU) frame.
For more information, see the
Eclipse HX-Median User Guide.
Eclipse HX-Omega
The largest matrix in the Eclipse
HX range.
The Eclipse HX-Omega has slots
for
2 CPU cards and 15 interface
cards in a six rack unit (6RU)
frame.
For more information, see the
Eclipse HX-Omega User Guide.
Eclipse HX-PiCo
The Eclipse HX-PiCo provides up
to 32 panel and 4 additional four-
wire ports in a one rack unit (1RU).
For more information, see the
Eclipse HX-PiCo User Guide.
Table 3-1: Eclipse HX Matrices
3.3 Eclipse HX-Delta
A complete Eclipse HX-Delta system consists of a central matrix and the remote
audio devices (which may include user panels, interface cards, interface
modules, four-wire devices and systems) connected to it.
Note: The term central matrix is used to differentiate the core hardware and software
from the connected user panels and interfaces. The central matrix itself consists
of the matrix hardware (the Eclipse HX-Delta matrix) and the EHX configuration
software.
