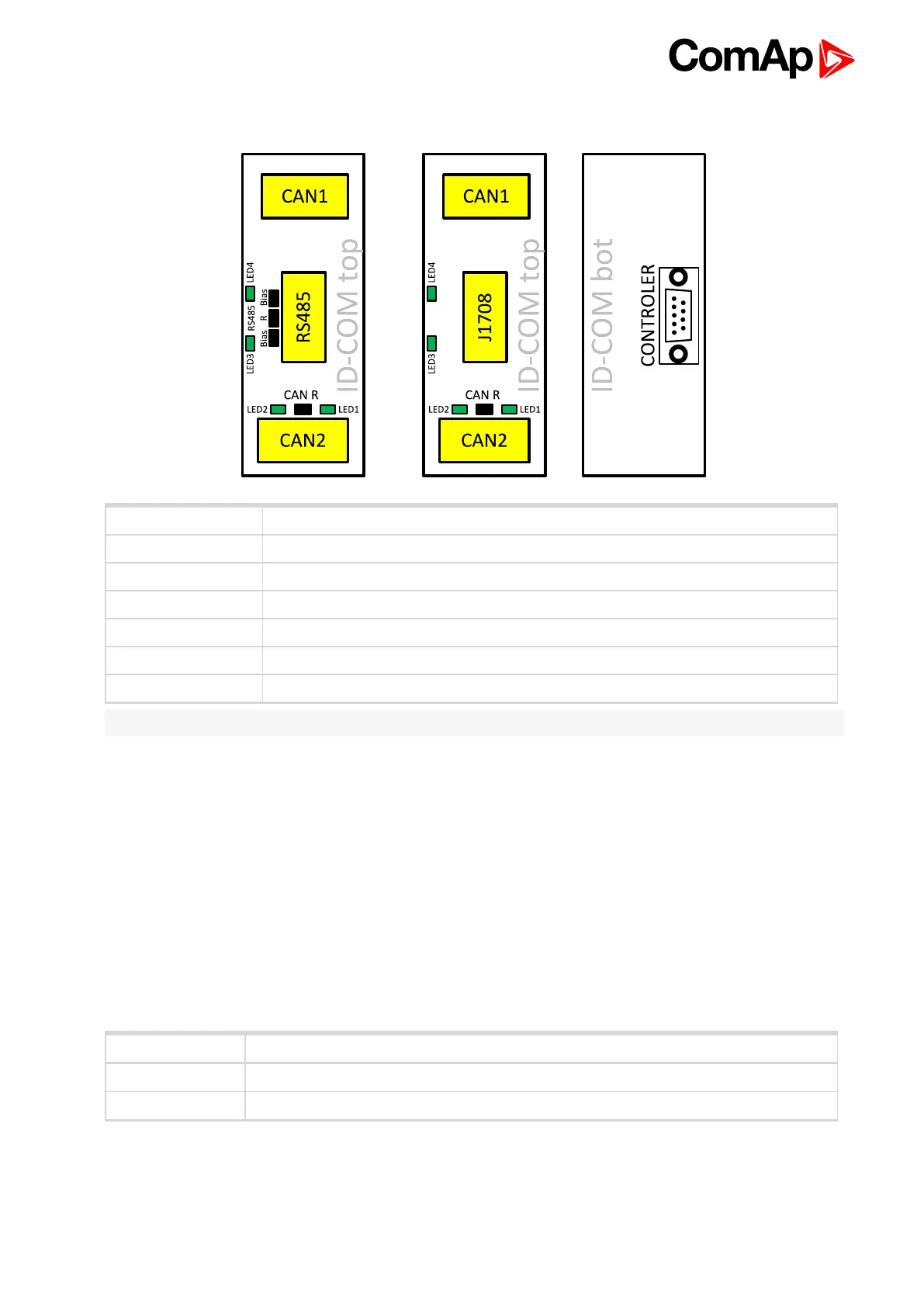

Connectors
CAN1 CAN1 line
CAN2 CAN2 line
RS485 Serial line RS485
J1708 SAE J1708 line
Controller Connection to controller
LED1, LED2 Communication on CAN2 (Tx, Rx)
LED3, LED4 Communication on RS485 or J1708 (Rx, Tx)
Note: Maximal torque to tight main screw is 0.25 Nm.
Address and jumper settings
CAN1 termination
CAN1 has its own terminating resistor (120 ohm) directly on controllers board (PCB). Close jumper CAN R
connecting terminating resistor to CAN bus, open jumper CAN R disconnecting terminating resistor.
RS485 termination
When point-to-point is connected (eg with display), keep both Bias and termination resistors closed - default
jumper settings.
LED indication
LED Description
LED1, LED2 Blink when data are transmitted / received on the CAN2 line
LED3, LED4 Blink when data are transmitted / received on the RS485 or J1708 line
