InteliDrive DCU Industrial 3.4.0 Global Guide
90
Control of After-Treatment regeneration function by
transmitting commands to the ECU
After-Treatment screen
This screen is shown with configured ECU which supports Tier 4 Final/StageV. After-Treatment screen is
automatically shown, once any of selected lamps gets active or change status. Deactivating of the lamp will not
trigger showing the screen. The screen is then shown until operator switch it to another one. Alarm list screen
has lower priority so even new alarm appears, After-treatment screen is still displayed. To avoid displaying
blank screen, inactive lamps are represented by "dotted" icons. For no active lamp the screen shows all dotted
icons. Please see examples below:

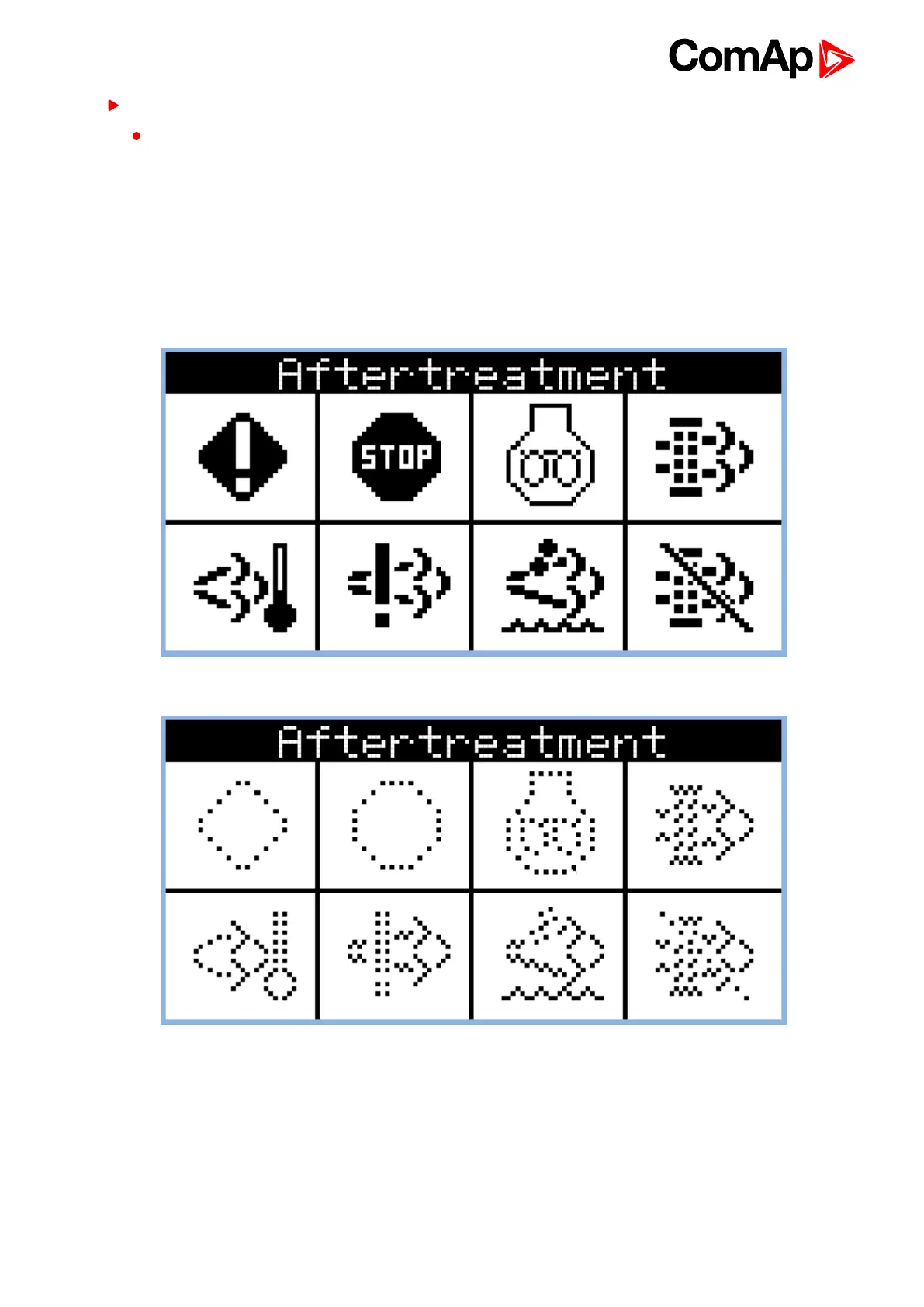

Image 6.1 Example of active Tier 4 Final/StageV screen
Image 6.2 Example of inactive Tier 4 Final/StageV screen
Universal lamps (icons)
Universal lamp icons are shown on the After-Treatment screen. Based on specific value read in specific frame
with specific SPN is every lamp icon either:
