As an example, say you wanted to produce a 1 KHz sine wave, using a table of eight
d·ata samples (four
data words) (see figure 5-3).
127
142 Audio Hardware

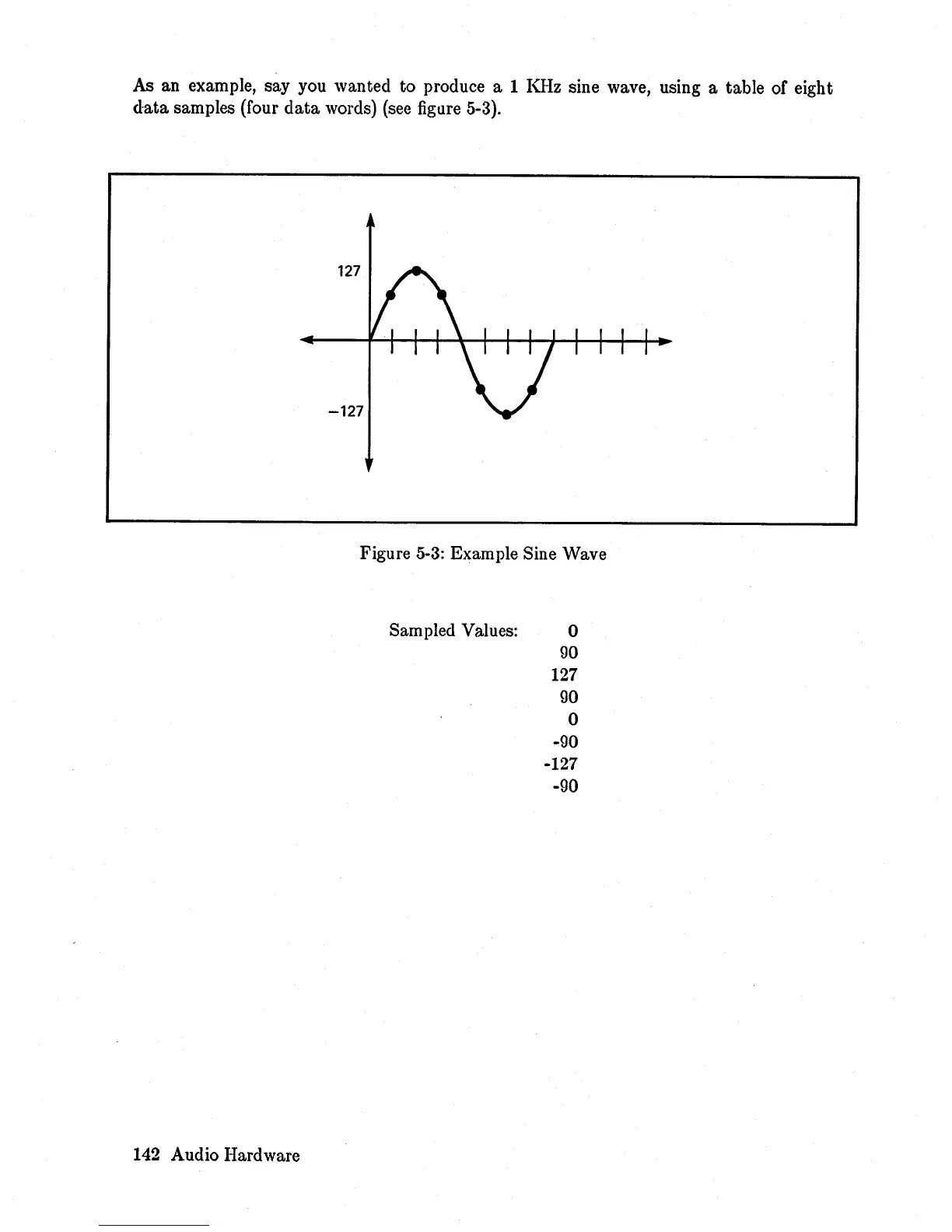

Figure 5-3: Example Sine Wave
Sampled Values: 0
90
127
90
o
-90
-127
-90
