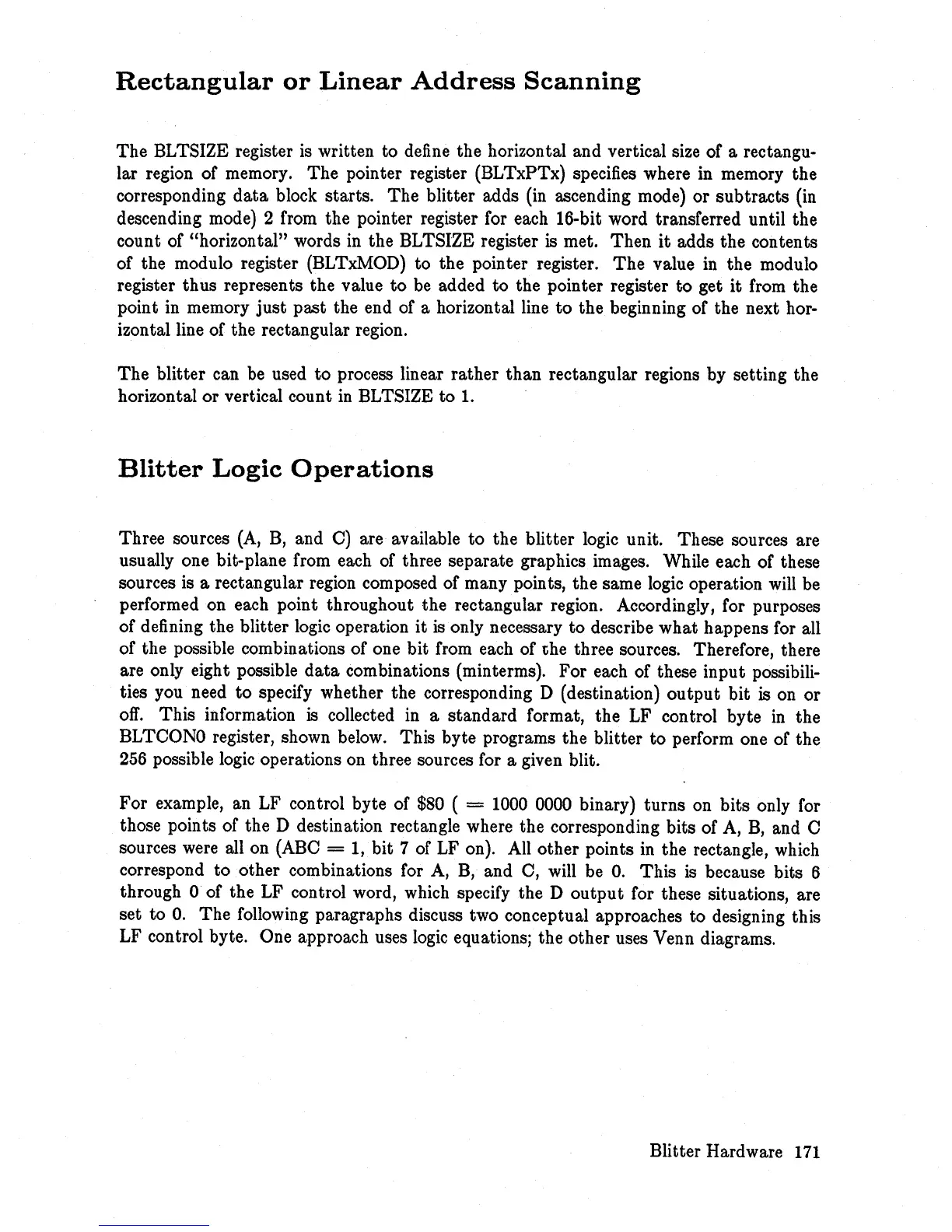

Rectangular
or
Linear
Address
Scanning
The BLTSIZE register
is
written to define the horizontal and vertical size of a rectangu-
lar region of memory. The pointer register (BLTxPTx) specifies where in memory the
corresponding
data
block starts. The blitter adds
(in
ascending mode) or subtracts (in
descending mode) 2 from the pointer register for each 16-bit word transferred until the
count of "horizontal" words in the BLTSIZE register
is
met. Then
it
adds the contents
of the modulo register (BLTxMOD) to the pointer register.
The
value
in
the modulo
register thus represents the value
to
be
added
to
the pointer register
to
get
it
from the
point in memory just past the end of a horizontal line
to
the beginning of the next hor-
izontalline of the rectangular region.
The blitter can
be
used
to
process linear rather than rectangular regions by setting the
horizontal or vertical count
in
BLTSIZE to 1.
Blitter
Logic
Operations
Three sources
(A,
B,
and
C)
are available to the blitter
logic
unit. These sources are
usually one bit-plane from each of three separate graphics images. While each of these
sources
is
a rectangular region composed of many points, the same
logic
operation will be
performed on each point throughout the rectangular region. Accordingly, for purposes
of defining the blitter
logic
operation it
is
only necessary to describe what happens for all
of the possible combinations of one bit from each of the three sources. Therefore, there
are only eight possible
data
combinations (minterms). For each of these input possibili-
ties you need
to
specify whether the corresponding D (destination) output bit
is
on or
off.
This information
is
collected in a standard format, the LF control byte
in
the
BLTCONO register, shown below. This byte programs the blitter
to
perform one of the
256
possible
logic
operations on three sources for a given blit.
For example, an LF control byte of
$80
( =
1000
0000 binary) turns on bits only for
those points of the D destination rectangle where the corresponding bits of
A,
B,
and C
sources were all on
(ABC
=
1,
bit 7 of LF on). All other points
in
the rectangle, which
correspond
to
other combinations for
A,
B,
and C, will
be
O.
This
is
because bits 6
through 0 of the LF control word, which specify the D output for these situations, are
set
to
O.
The following paragraphs discuss two conceptual approaches to designing this
LF control byte. One approach uses
logic
equations; the other uses Venn diagrams.
