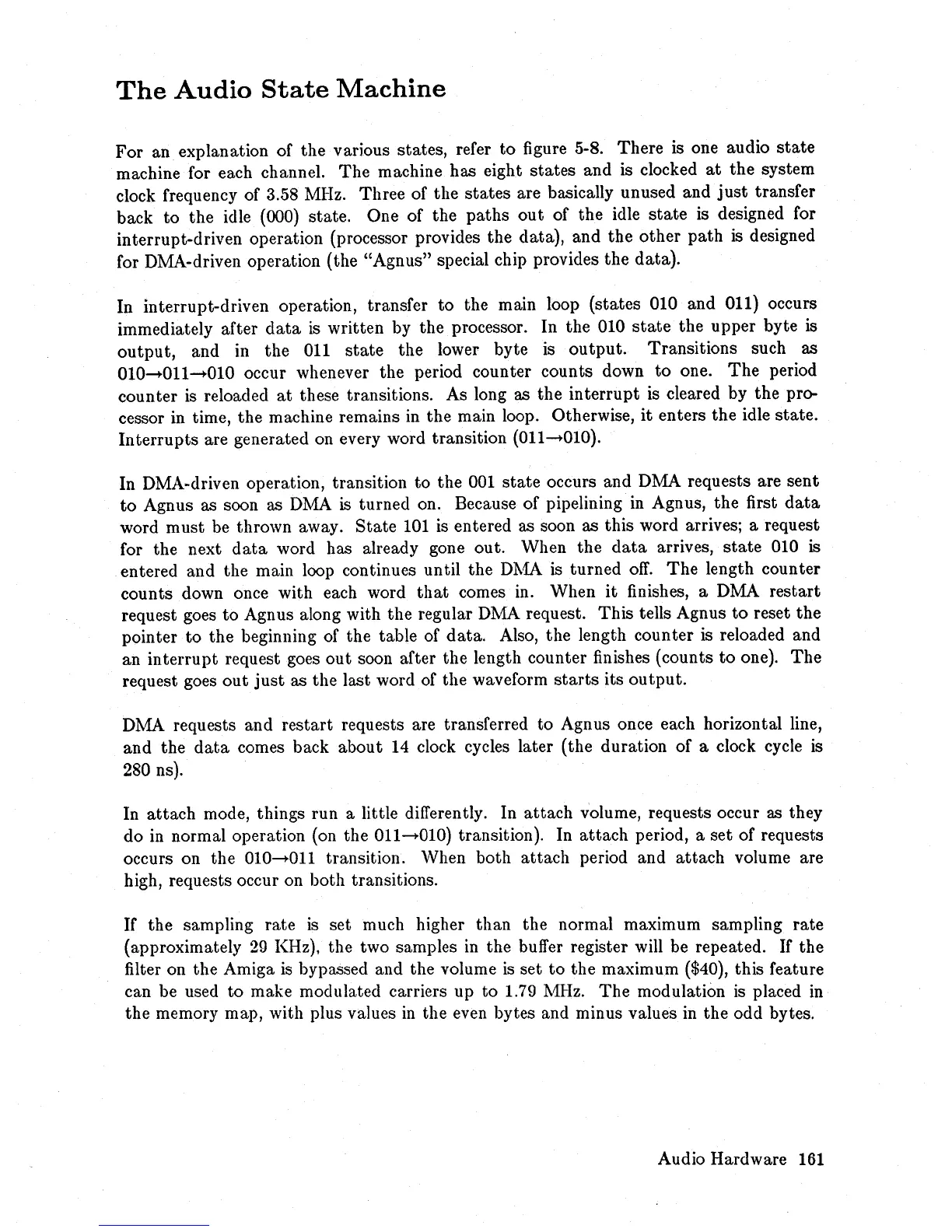

The
Audio
State
Machine
For
an explanation
of
the
various states, refer
to
figure 5-8. There is one audio
state
machine for each channel.
The
machine has eight
states
and is clocked
at
the
system
clock frequency of 3.58 MHz. Three
of
the
states
are basically unused and
just
transfer
back
to
the idle
(OOO)
state. One of the
paths
out
of
the
idle
state
is designed for
interrupt-driven operation (processor provides the data), and
the
other
path
is designed
for DMA-driven operation (the "Agnus" special chip provides the data).
In interrupt-driven operation, transfer
to
the main loop (states 010 and 011) occurs
immediately after
data
is
written by
the
processor. In the 010
state
the upper byte is
output,
and in
the
011
state
the
lower byte
is
output.
Transitions such as
010-011-010
occur whenever the period counter counts down
to
one.
The
period
counter
is
reloaded
at
these transitions. As long as
the
interrupt
is cleared by
the
pro-
cessor in time,
the
machine remains in the main loop. Otherwise,
it
enters
the
idle
state.
Interrupts
are generated on every word transition
(011-010).
In DMA-driven operation, transition to the 001
state
occurs and DMA requests are
sent
to
Agnus as soon as DMA
is
turned on. Because
of
pipelining
in
Agnus,
the
first
data
word must be thrown away.
State
101
is entered as soon as this word arrives; a request
for the next
data
word has already gone out. When
the
data
arrives,
state
010 is
entered and the main loop continues until the HMA is turned
off.
The
length counter
counts down once with each word
that
comes in. When
it
finishes, a DMA restart
request goes
to
Agnus along with the regular DMA request.
This
tells Agnus
to
reset
the
pointer
to
the
beginning of the table of
data.
Also, the length counter
is
reloaded and
an
interrupt
request goes
out
soon after the length counter finishes (counts
to
one).
The
request goes
out
just
as the last word of the waveform
starts
its
output.
DMA requests and
restart
requests are transferred to Agnus once each horizontal line,
and the
data
comes back about 14 clock cycles later (the duration
of
a clock cycle is
280 ns).
In
attach
mode, things run a little differently. In
attach
volume, requests occur as they
do in normal operation (on the
011-010)
transition). In
attach
period, a set of requests
occurs on the
010-011
transition. 'When both
attach
period and
attach
volume are
high, requests occur on both transitions.
If
the
sampling rate
is
set much higher
than
the normal maximum sampling rate
(approximately
29
KHz). the two samples
in
the buffer register will be repeated. If the
filter on
the
Amiga
is
bypassed and the volume
is
set
to
the maximum ($40), this feature
can be used
to
make modulated carriers up to 1.79 MHz.
The
modulation
is
placed
in
the memory map, with plus values
in
the even bytes and minus values
in
the odd bytes.
Audio Hardware
161
