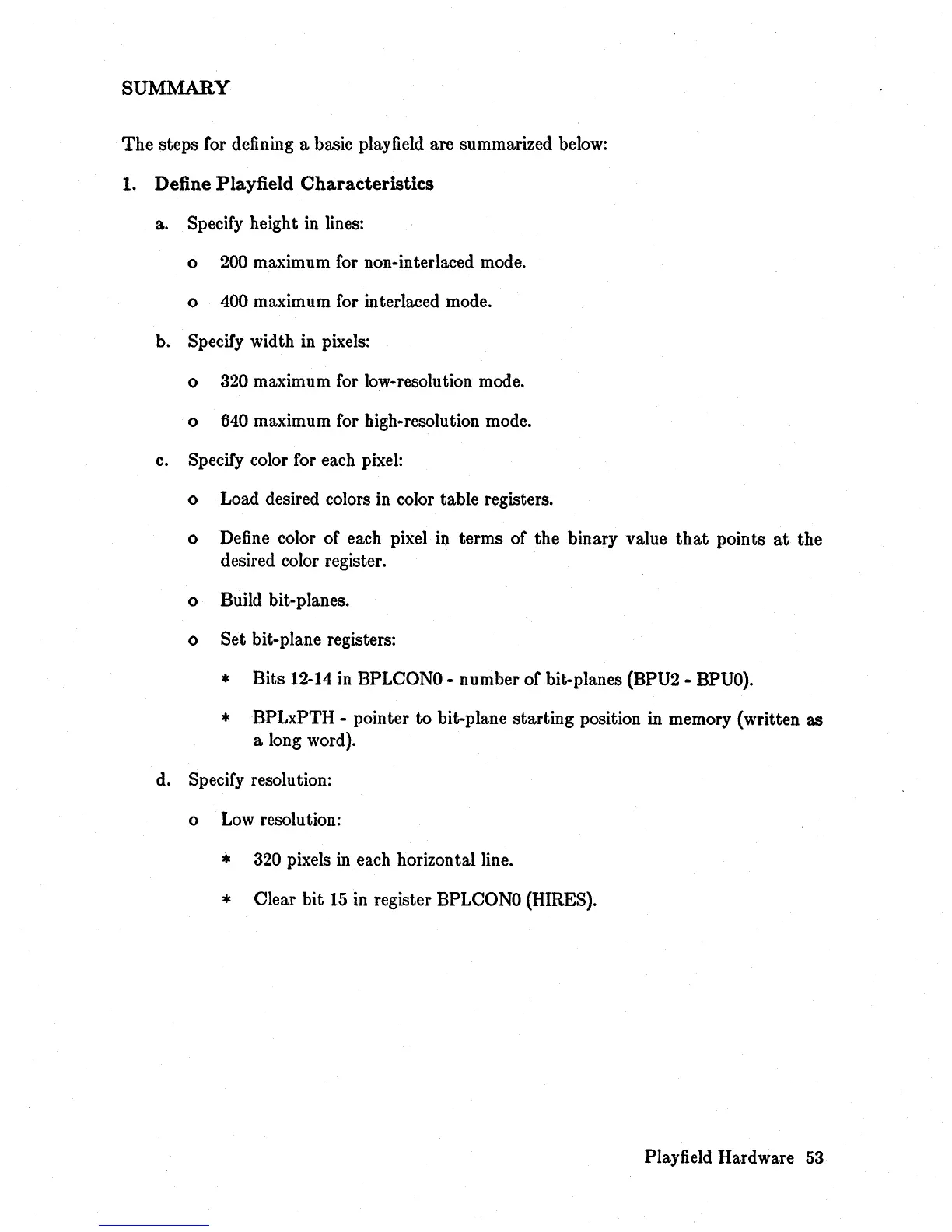

SUMMARY
The steps for defining a basic playfield are summarized below:
1. Define Playfield Characteristics
a. Specify height in lines:
o 200 maximum for non-interlaced mode.
o 400 maximum for interlaced mode.
b. Specify width in pixels:
o 320 maximum for low-resolution mode.
o
640 maximum for high-resolution mode.
c. Specify color for each pixel:
o Load desired colors in color table registers.
o Define color of each pixel in terms of the binary value
that points at the
desired color register.
o Build bit-planes.
o Set bit-plane registers:
* Bits 12-14 in BPLCONO - number of bit-planes (BPU2 - BPUO).
* BPLxPTH - pointer to bit-plane starting position in memory (written as
a long word).
d. Specify resolution:
o
Low resolution:
* 320 pixels in each horizontal line.
* Clear bit 15 in register BPLCONO (HIRES).
Playfield Hardware
53
