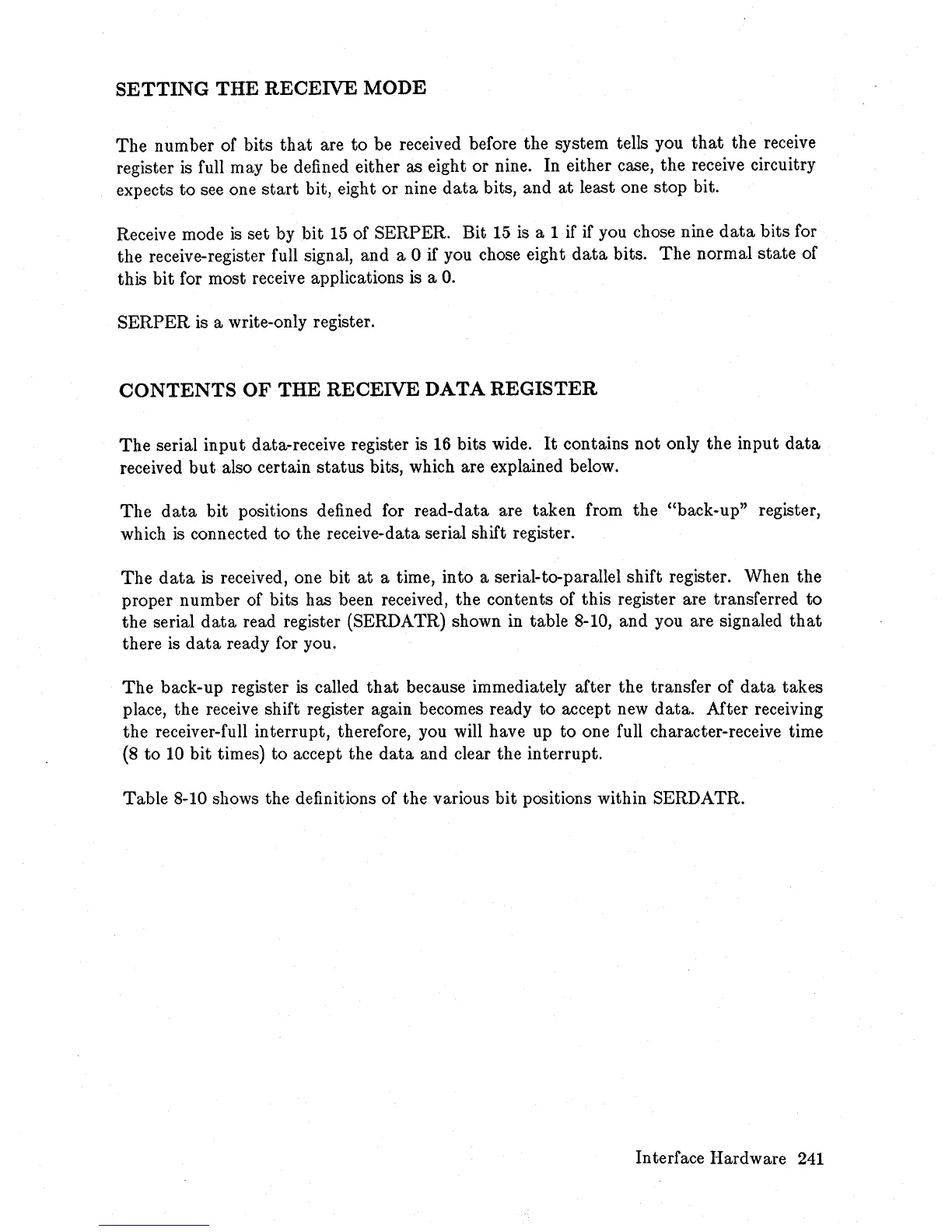

SETTING
THE
RECEIVE
MODE
The
number of bits
that
are
to
be received before the system tells you
that
the receive
register
is
full may be defined either as eight
or
nine. In either case, the receive circuitry
expects
to
see one
start
bit, eight or nine
data
bits, and
at
least one stop bit.
Receive mode
is
set by
bit
15
of SERPER. Bit 15 is a 1 if if you chose nine
data
bits for
the receive-register full signal, and a 0 if you chose eight
data
bits.
The
normal
state
of
this bit for most receive applications is a
o.
SERPER
is a write-only register.
CONTENTS
OF
THE
RECEIVE
DATA
REGISTER
The
serial
input
data-receive register is
16
bits
wide.
It
contains
not
only the input
data
received
but
also certain
status
bits, which are explained below.
The
data
bit
positions defined for read-data are taken from the "back-up" register,
which
is
connected
to
the receive-data serial shift register.
The
data
is
received, one bit
at
a time, into a serial-to-parallel shift register. When the
proper number of bits has been received, the contents of this register are transferred
to
the
serial
data
read register (SERDATR) shown in table 8-10, and you are signaled
that
there is
data
ready for you.
The
back-up register
is
called
that
because immediately after the transfer of
data
takes
place, the receive shift register again becomes ready
to
accept new
data.
After receiving
the receiver-full interrupt, therefore, you will have up
to
one full character-receive time
(8
to
10
bit
times)
to
accept the
data
and clear the interrupt.
Table 8-10 shows the definitions of the various
bit
positions within SERDATR.
