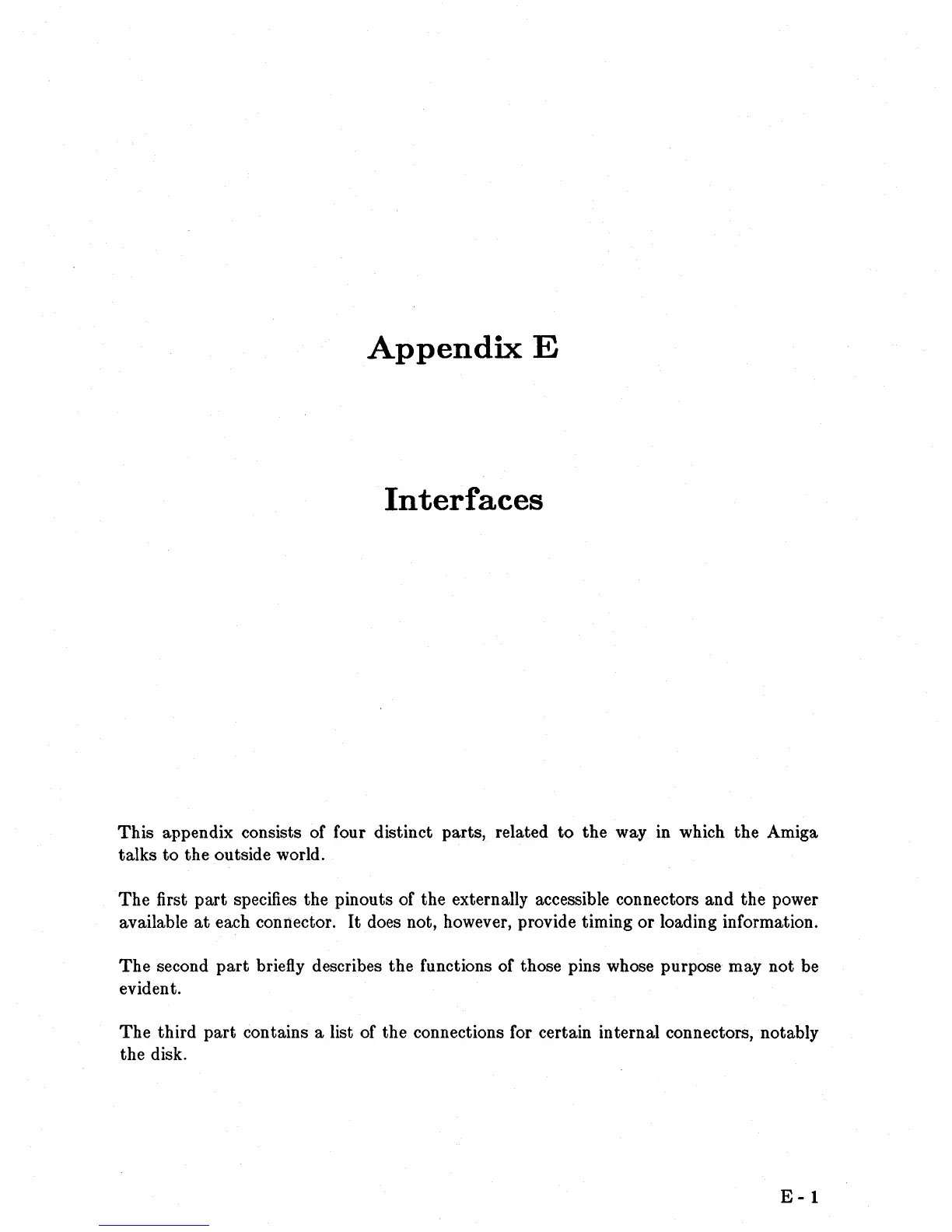

Appendix E
Interfaces
This appendix consists of four distinct parts, related to the way in which the Amiga
talks
to the outside world.
The first part specifies the pinouts of the externally accessible connectors and the power
available
at each conIiector. It does not, however, provide timing or loading information.
The second part briefly describes the functions of those pins whose purpose may not be
evident.
The third part contains a list of the connections for certain internal connectors, notably
the disk.
E - 1
