o Disk controller
o Keyboard
o Parallel
I/O interface
o RS-232-C compatible serial interface (for external modems or serial devices)
o RAM cartridge slot (for expansion
to 512K bytes)
o Expansion bus interface
o Audio
output jacks
o Video
output connectors (RGB, NTSC, RF modulator)

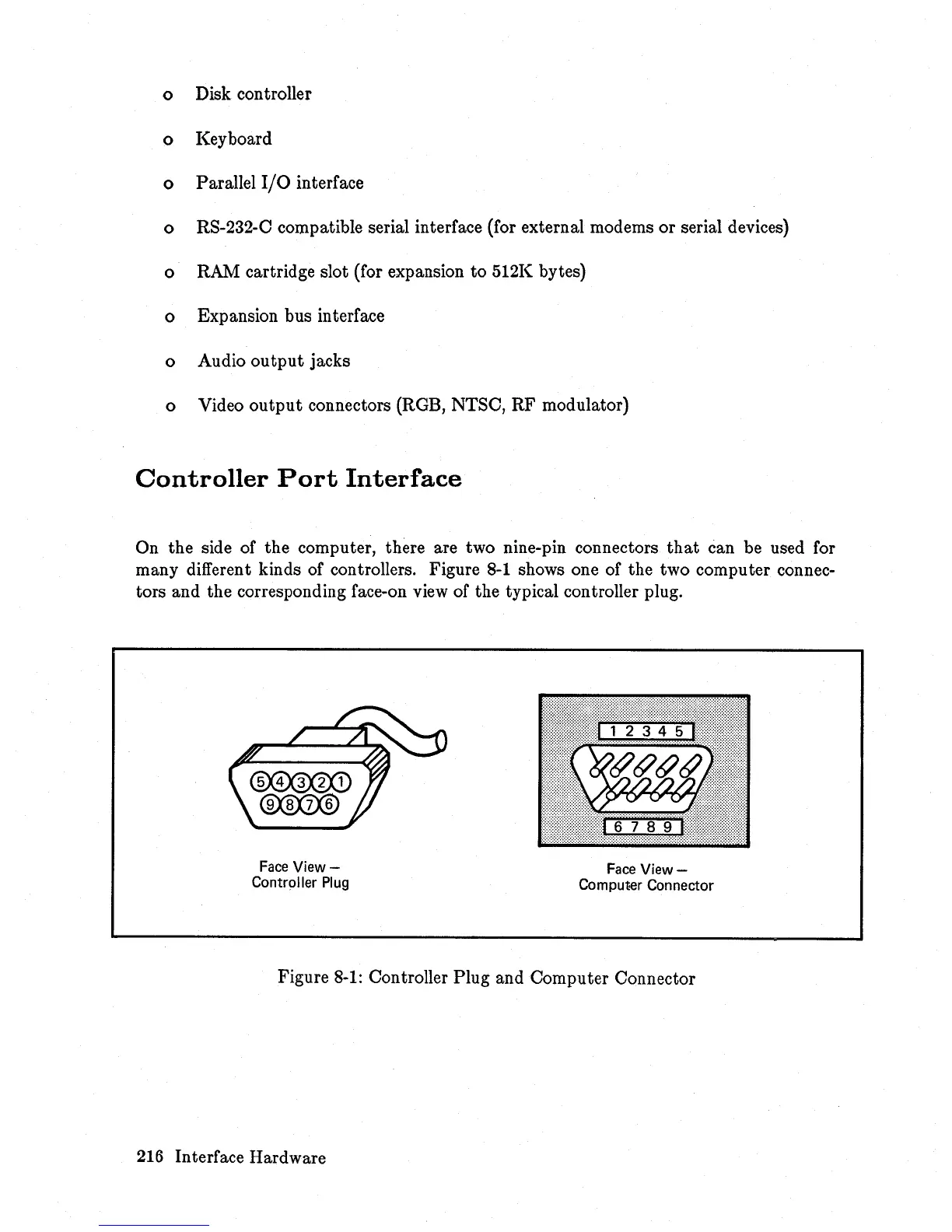

Controller Port Interface
On the side of the computer, there are two nine-pin connectors that can be used for
many different kinds of controllers. Figure
8-1 shows one of the two computer connec-
tors and the corresponding face-on view of the typical controller plug.
Face View-
Controller Plug
Face View-
Computer Connector
Figure 8-1: Controller Plug and Computer Connector
216 Interface Hardware
