Cosmo LS-R700 User Manual

7 Operations Listed By Purposes 77
7

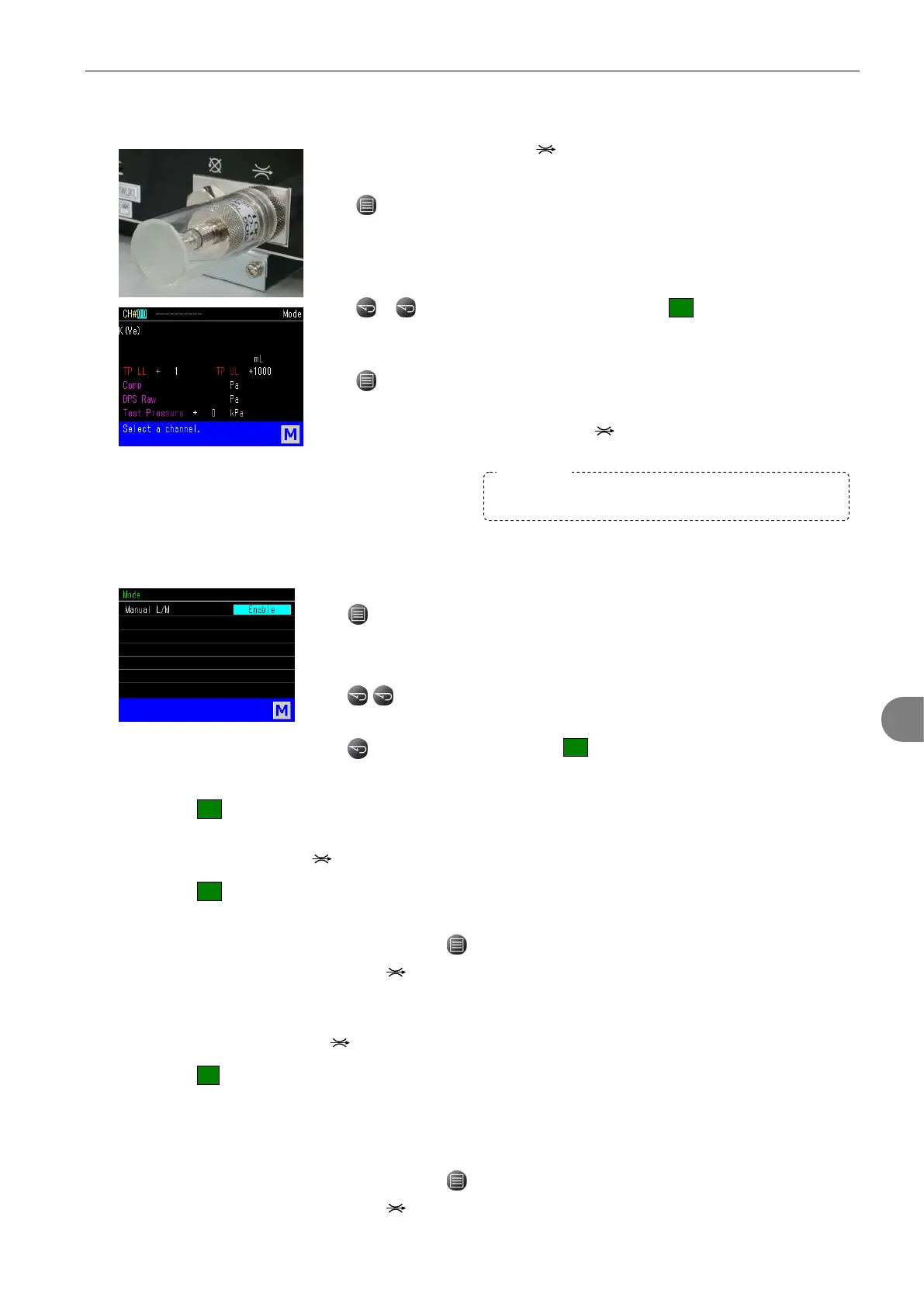

Models with Leak Master (Type J)
1) Remove the plug from the
Calibration port and connect a Leak Master.
2) Check whether Calibrator is set to Leak Master.
> Main Menu > K(Ve) > K(Ve) Settings > Basic Settings
> Calibrator
3) Enter the Flow Rate of the connected Leak Master in mL/min.
4) Start K(Ve) Automatic Setup
> > K(Ve) > K(Ve) Automatic Setup > ►
After 3 phases of tests, LS-R700 will show the K(Ve) value.
5) Change the Leak Unit to a Flow rate unit.
> Main Menu >Settings > Advanced Settings > Unit
> Leak Unit
6) Remove the Leak Master from the
Calibration port and put the plug
back on firmly.
Use Leak Master with Standard Models (with No Calibrator)
1) Check whether Calibrator is set to “Leak Master”.
> Main Menu > K(Ve) > K(Ve) Settings > Basic Settings> Calibrator
2) Enter the Flow Rate of the connected Leak Master in mL/min.
3) Select Manual Leak Master
> K(Ve) > K(Ve) Automatic Setup > Mode
4) Start K(Ve) Automatic Setup
> K(Ve) Automatic Setup > ►
3-phase
1) Press ► to start K(Ve) Automatic Setup
2) After 2 phases of tests, LS-R700 will be idle state.
Remove the plug from
Calibration port and connect a Leak Master.
3) Press ► to resume measurement.
After measurement is completed LS-R700 will show the K(Ve) value.
4) Change the Leak Unit to a Flow rate unit. > Settings > Advanced Settings > Unit > Leak Unit
5) Remove the Leak Master from the
Calibration port and put the plug back on firmly.
1-phase
1) Remove the plug from the
Calibration port and connect a Leak Master.
2) Press  to start K(Ve) Automatic Setup
After measurement is completed LS-R700 will show the K(Ve) value.
3) If Drift Comp Feature is enabled and a compensation value is stored in the Memory, the measured value
is compensated by the value.
4) Change the Leak Unit to a Flow rate unit. > Settings > Advanced Settings > Unit > Leak Unit
5) Remove the Leak Master from the
Calibration port and put the plug back on firmly.
Leak Master can be left on the calibration port. In that
case, make sure dust will not accumulate inside.
NOTE
