COTRUST CTH200 Series User Manual

Technical Specifications
102

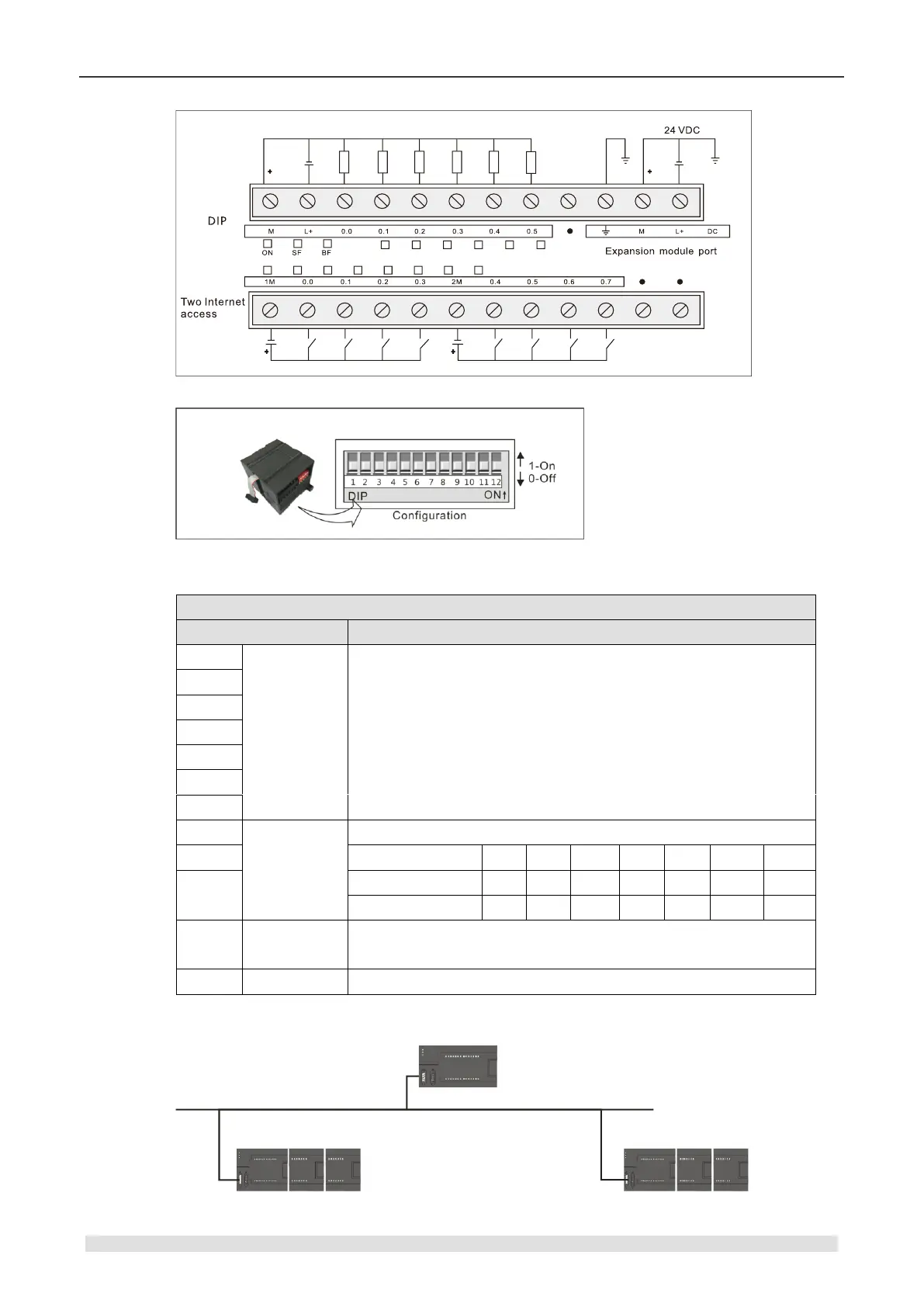

DIP switch configuration
Table 4-7-9 DIP switch configuration of SM277-0AC32
SM277-0AC32 DIP switch
Switch
Usage
SW1
Node
address
In binary: 1 - lowest bit, 7 - highest bit
Note: 0 - global address, 0 is not allowed during operation.
SW2
SW3
SW4
SW5
SW6
SW7
SW8
Baud rate
In binary: 8 - lowest bit, 10 - highest bit
SW9
DIP setting
111
110
101
100
011
010
001
SW10
Baud rate (Kbps)
1000
800
500
250
125
50
20
Max length (m)
25
50
100
250
500
1000
2500
SW11
Terminal
resistor
“ON” for device at network interface, “OFF” for the other.
SW12
reserved
—
Network Architecture
S M 2 7 7 C
C TH 2 0 0
S M 2 3 1 S M 2 3 1S M 2 7 7 C S M 2 3 1 S M 2 31
Hardware Diagnostic
